Technogym SYNCHRO Excite + - DISASSEMBLING BOARDS AND COMPONENTS; LED DISPLAY (ARM BOARD)

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.4
7.2. DISASSEMBLING BOARDS AND COMPONENTS
7.2.1. LED DISPLAY (ARM BOARD)

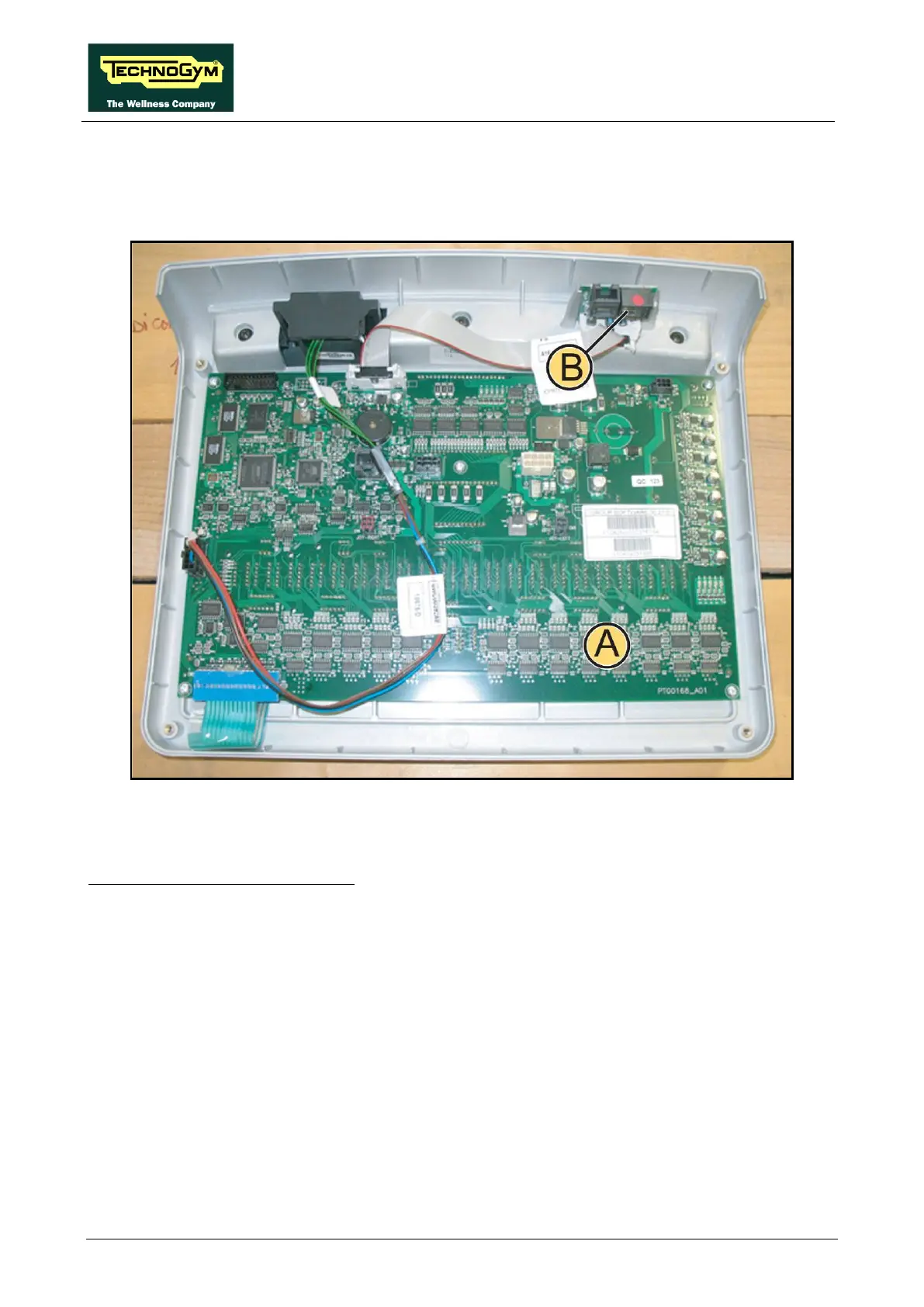

Figure 7.2-1
Carry out the procedure described in paragraph: 7.1. “Disassembling the display”.
Place the Display on a work bench:
It is now possible to remove the following boards:
• The ARM board (A);
• The C-Safe board (B).
