Technogym SYNCHRO Excite + - Front Guards

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.31
7.7.3. FRONT GUARDS

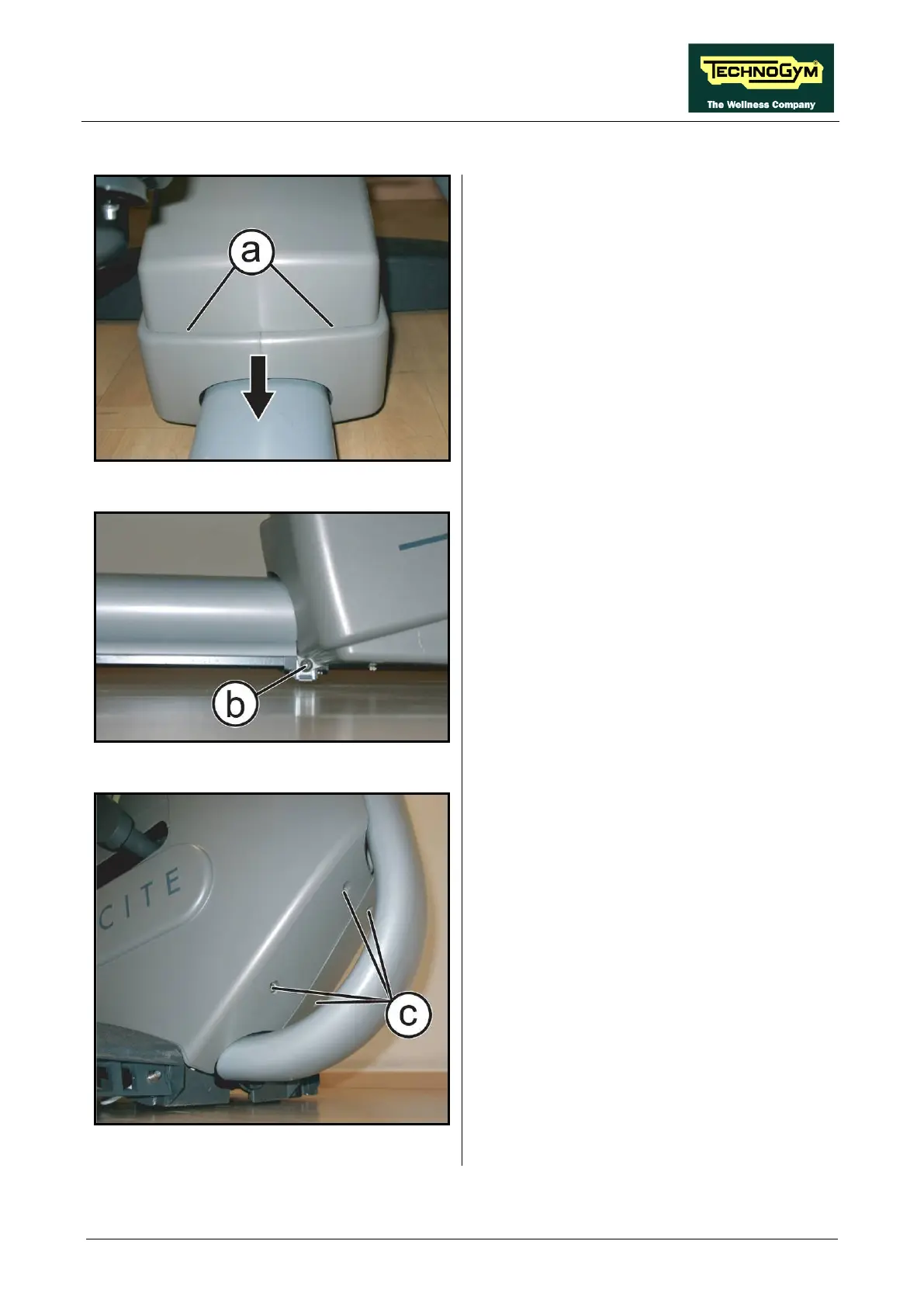

Figure 7.7-9
Carry out t
he operations described in
paragraph: 7.7.2. “Brake box cover guard”.
1. Remove the guard (a)
unhook the tabs in the
direction indicated by the arrows.
2. Pull it out from the top.
Figure 7.7-10
3. Back off the screws (b)
, on either side of the
machine using a 4mm hexagonal wrench
Figure 7.7-11
4. Back off the 4 screws (c) using a 4mm
hexagonal wrench m.
5. Remove the two lateral guards.
To reassemble the guards, carry out the above
steps in reverse order.
