Technogym SYNCHRO Excite + - DISASSEMBLING THE FLYWHEEL AND BETL TENSIONER; POWERED MODELS

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.47
7.14. DISASSEMBLING THE FLYWHEEL AND BETL
TENSIONER
7.14.1. POWERED MODELS
Only for powered models: 500, 700 and 700VISIO.

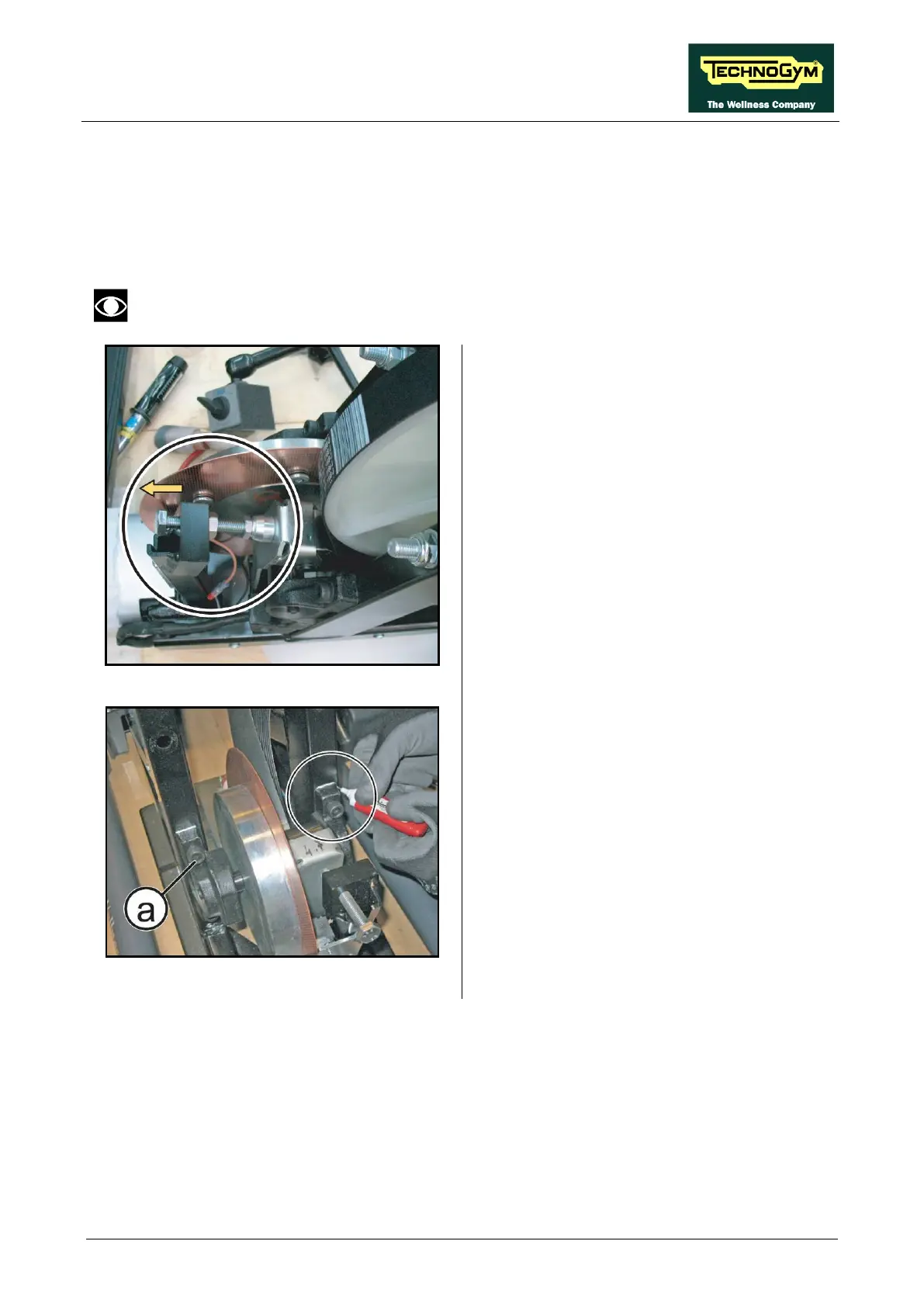

Figure 7.14-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
1. Loosen t
he transmission belt, with a 17mm
wrench, as highlighted in the figure.
Figure 7.14-2
2. Mark the position of pillow blocks, as shown
in the figure.
3. Back off the 4 screws (a) that supports the
flywheel, with an
8mm hexagonal wrench,
locking the nut on the opposite side.
Continued in following page...
