Technogym SYNCHRO Excite + - ARM board (A)

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.5

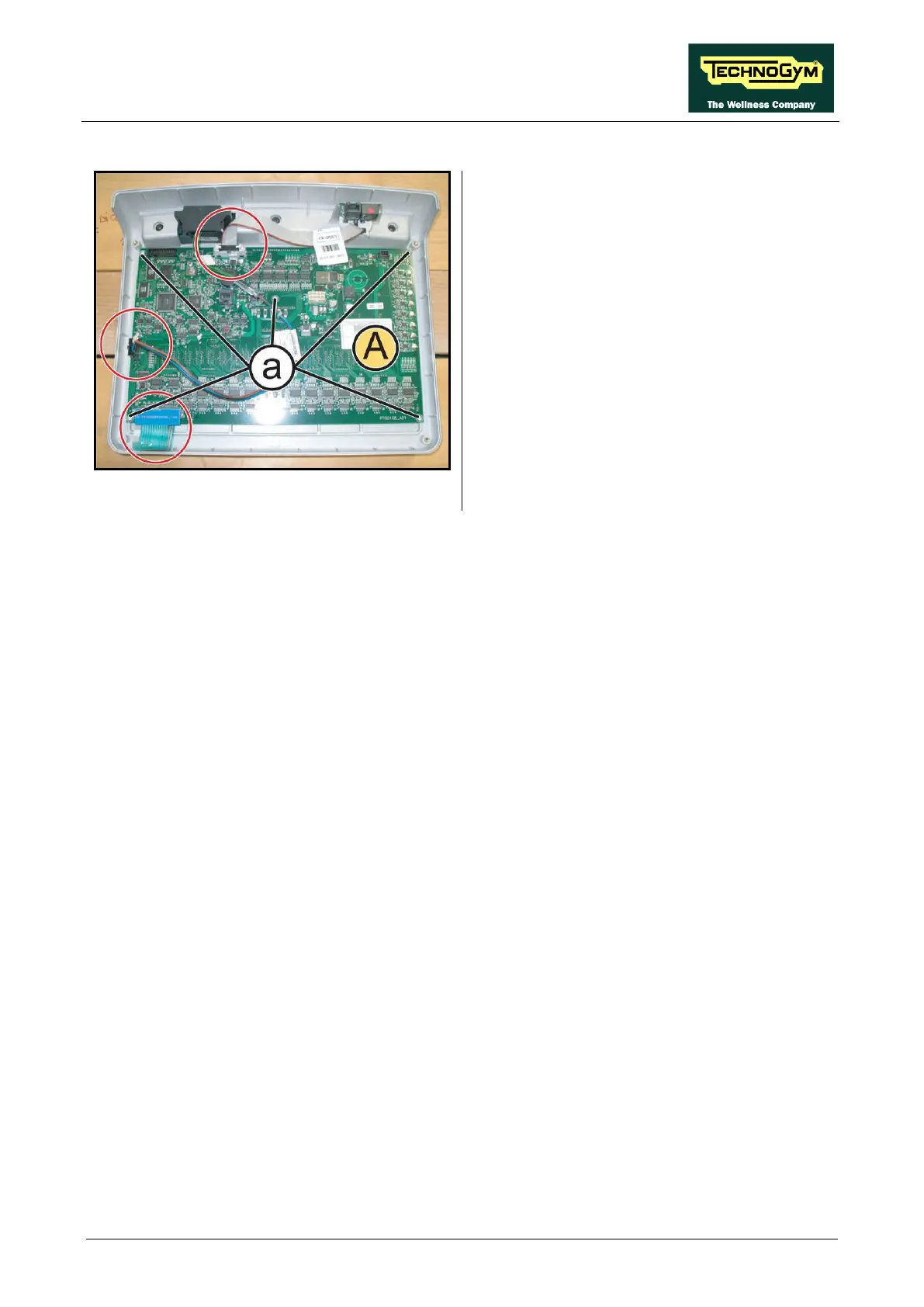

7.2.1.1. ARM board (A)
Figure 7.2-2
1.
Unplug the connectors highlighted in the
figure.
2. Back off the 5 screws (c)
using a medium
Phillips Screwdriver.
1. Remove the ARM board (A).
To reassemble the ARM board,
carry out the above steps in reverse order.
