Technogym SYNCHRO Excite + - BRAKE BOX COVER GUARD

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.32

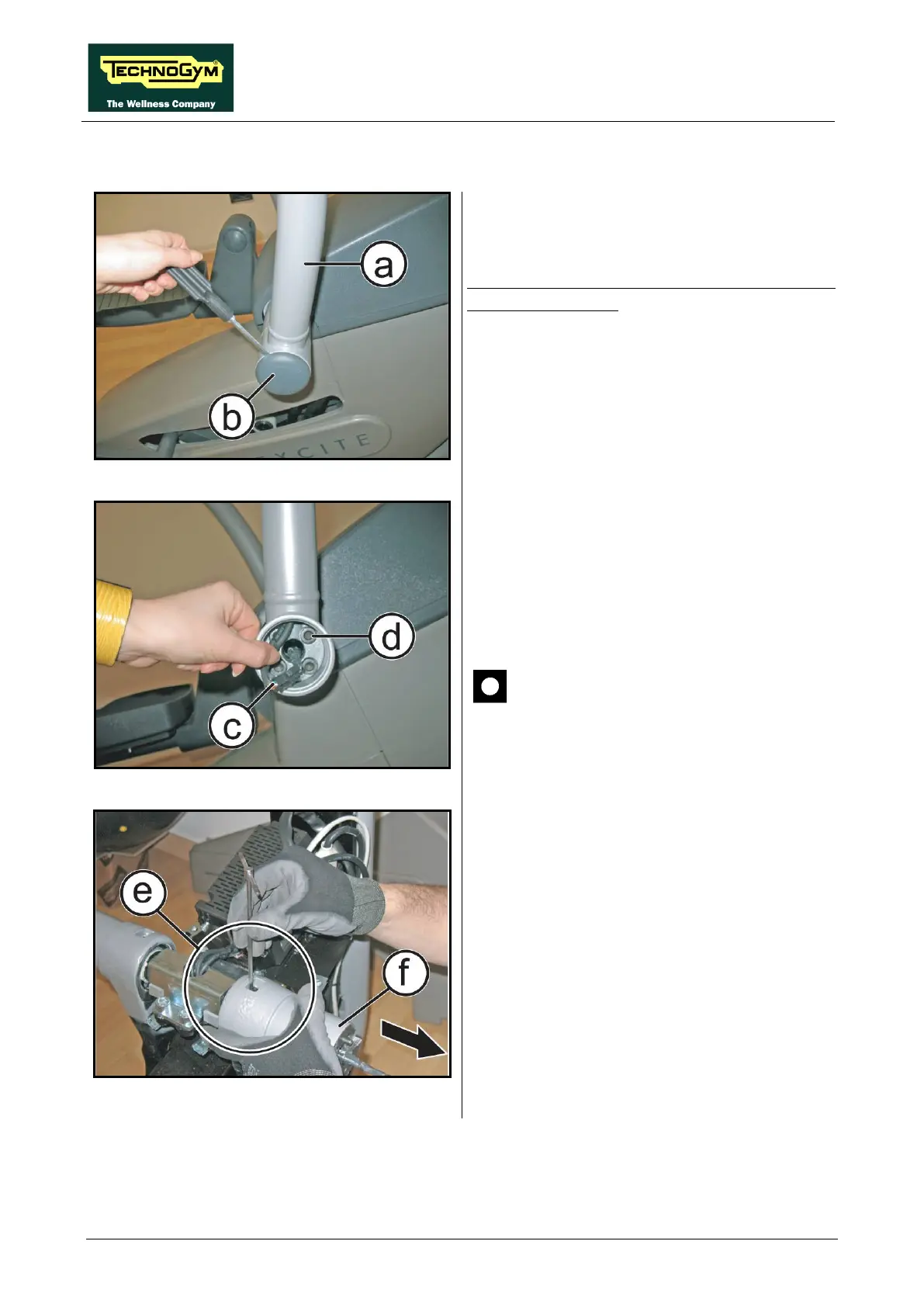

7.8. DISASSEMBLING THE LEVERS
Figure 7.8-1
Turn off the machine and unplug the m
ains lead
from the wall outlet.
1. To remove the lever (a)
, remove the plastic
plug (b)
forcing outwards with a small flat
Phillips screwdriver.
Figure 7.8-2
2. Disconnect the connector (c).
3. Back off the 4 screws (d)
with a 6mm
hexagonal wrench.
4. Remove the lever from the machine frame.
ATTENTION: During reassembly,
apply a drop of Loctite and lock down
the screws (d) using a torque wrench
setting of 37Nm.
Figure 7.8-3
Carry out the operations described in
paragraphs: 7.7.2. “Brake box cover guard”.
5. Back off the screw inside the housing (e),
with a 3mm hexagonal wrench.
6. Remove the lever (f)
from the frame, in the
direction of arrow.
Continued in following page...
