Technogym SYNCHRO Excite + - iPod Docking Station (H)

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.17
7.2.2.9. iPod Docking Station (H)

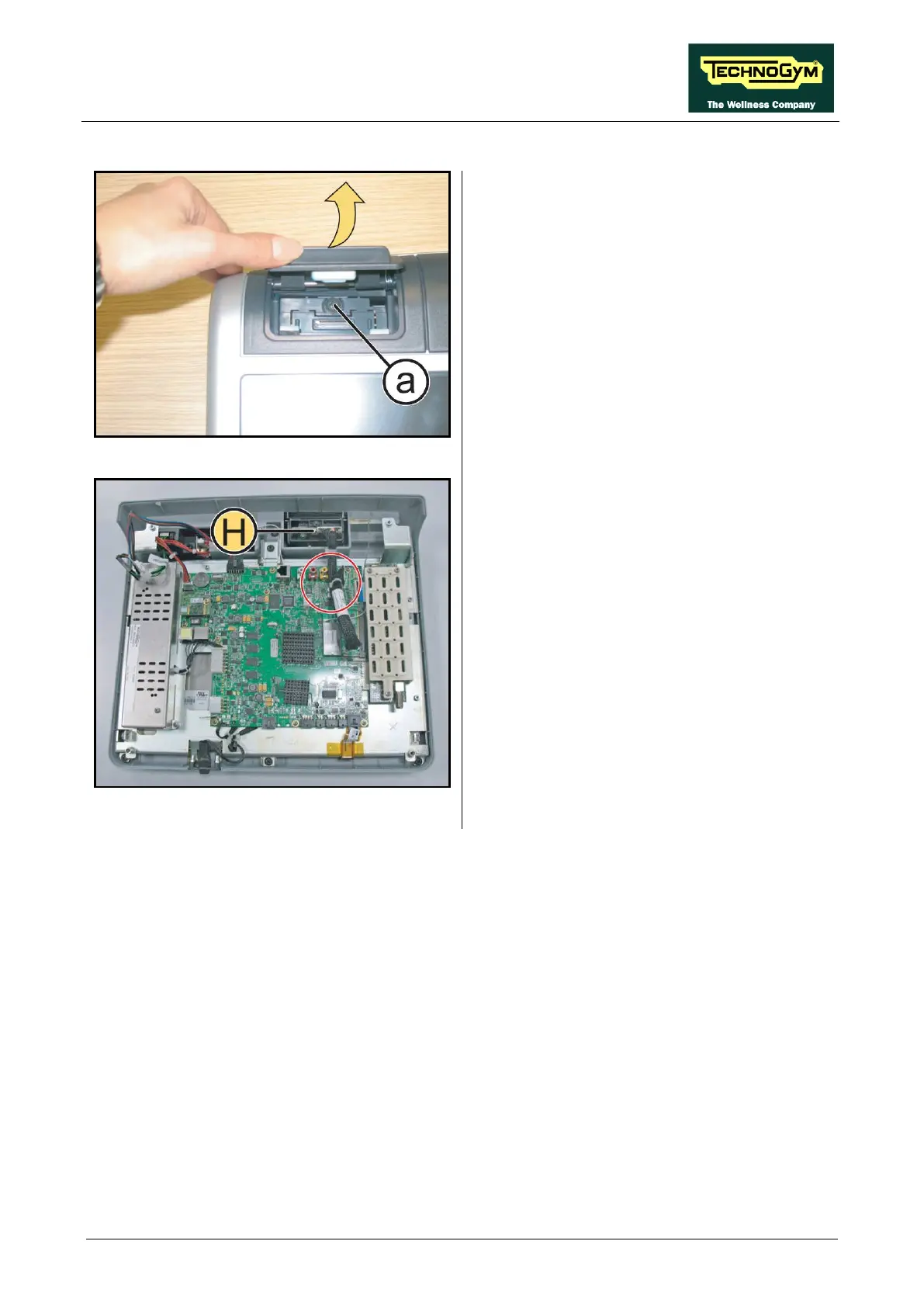

Figure 7.2-20
1.
Lift the Docking Station covering cap up and
back off the screw (a)
using a medium
Phillips screwdriver
Figure 7.2-21
2.
Unplug the cable highlighted in the figure
and remove the iPod Docking Station (H).
To reassemble the iPod Docking Station, follows
the above steps in the reverse order.
