7.10. DISASSEMBLING THE HAND SENSOR
Only for powered version: 700, 700SP and 700VISIO.

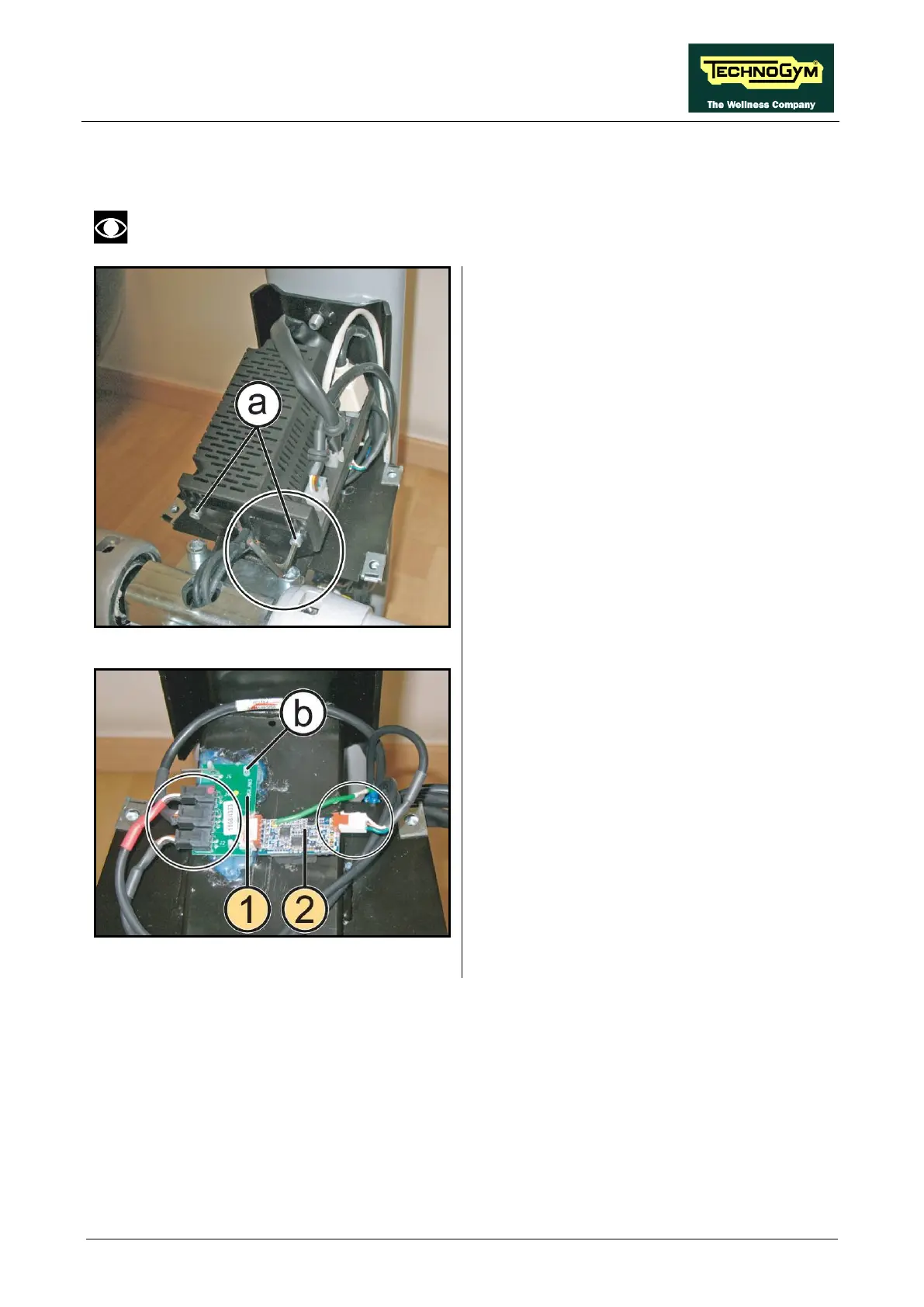

Figure 7.10-1
Carry out the operations described in
paragraph: 7.7.2. “Brake box cover guard”.
1. Back off the 2 screws (a) that fixes the Brake
Box at the frame, with a 3mm hexagonal
wrench.
2. Remove the brake box.
Figure 7.10-2
3. Remove the board (1) and (2)
, through the
plastic clip-sand (b)
and/or remove the glue
or the adhesive, replace if it’s necessary.
To reassemble the hand sensor board, carry out
the above steps in reverse order.
