Technogym SYNCHRO Excite + - DISASSEMBLING THE GUARDS

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.28
7.7. DISASSEMBLING THE GUARDS
7.7.1. REAR GUARD

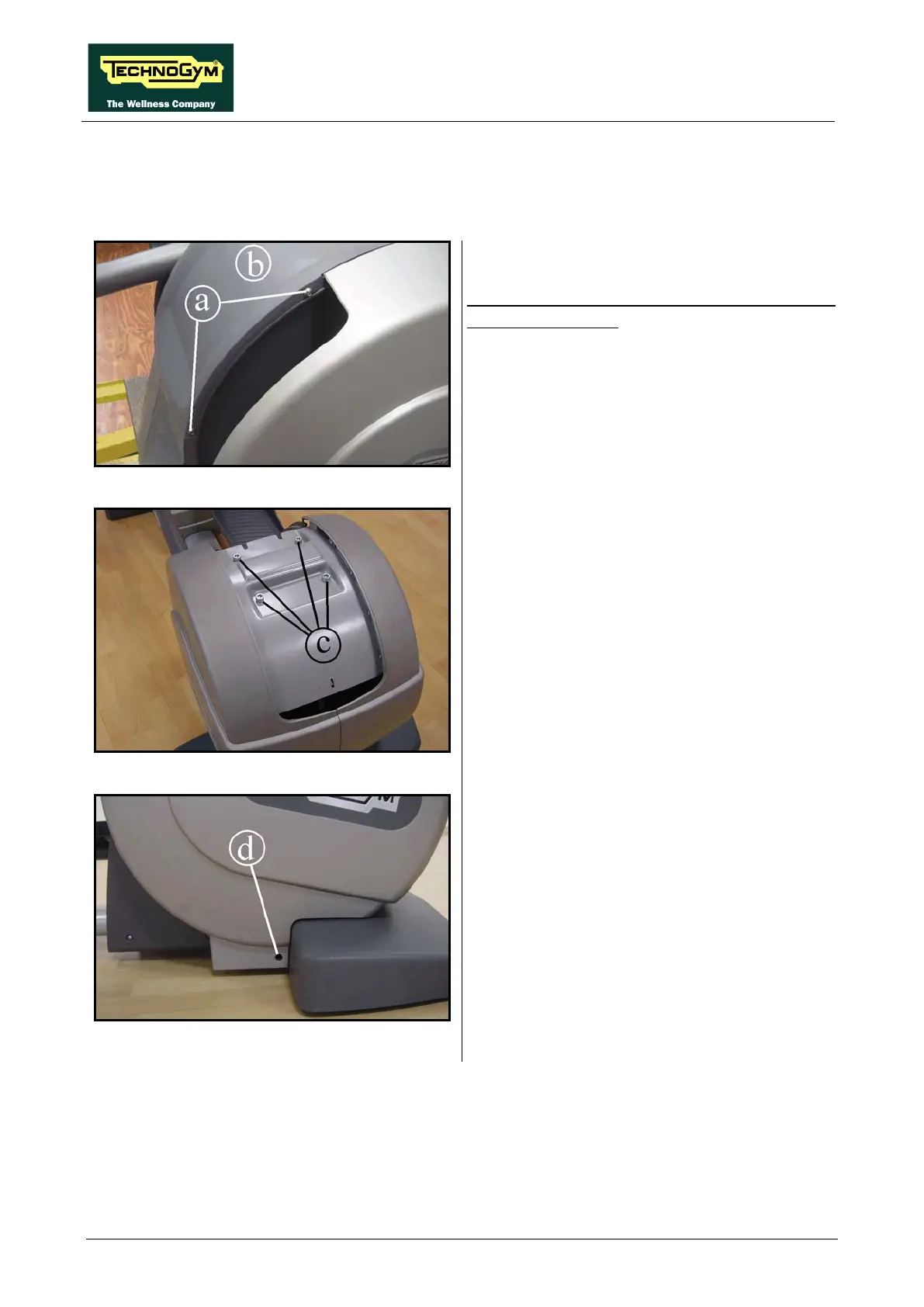

Figure 7.7-1
Turn off the machine and unplug t
he mains lead
from the wall outlet.
1. Back off the screws (a)
, on both sides of the
machine, using a 4mm hexagonal wrench.
2. Remove the top cover (b).
Figure 7.7-2
3. Back off the 4 screws (c)
using an 8mm
hexagonal wrench.
Figure 7.7-3
4. Back off the screw (d)
, on both sides of the
machine, using a 4mm hexagonal wrench.
5. Remove the rear guard.
Continued in following page...
