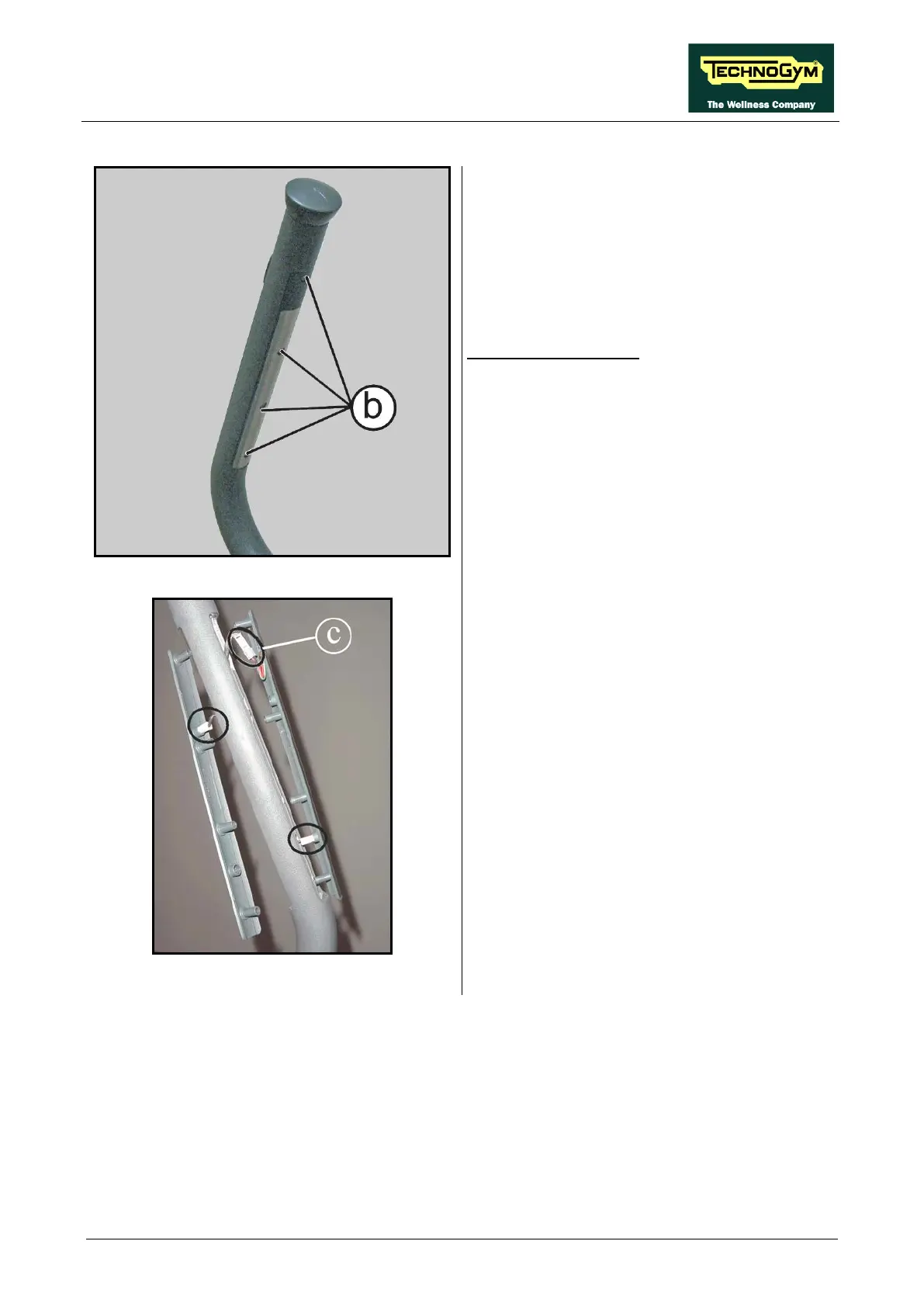

Figure 7.6-3
For each lever sensor:
1. Back off the 4 screws (b)
using a small
Phillips screwdriver.
Figure 7.6-4
2. Lift up the top sensor.
3. Remove the lower sensor.
4.
To disconnect the sensors, unplug the two
faston and the connector (c)
of the touch
sensor indicated in the figure.
To reassemble the sensors, carry out the above
steps in reverse order.
