7.2.2.3. Tuner board ATSC (B1) and ISDB-T (B2)

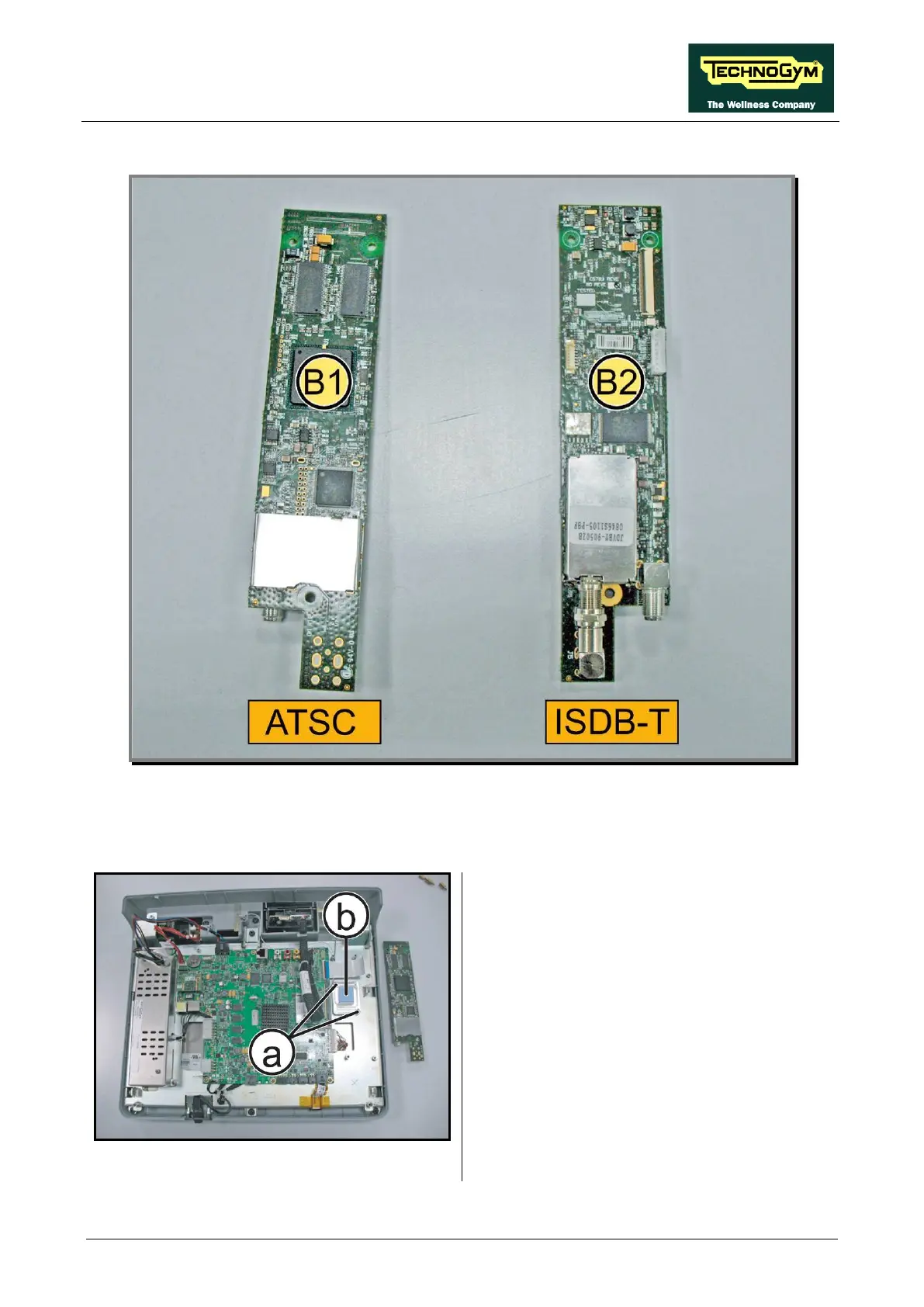

Figure 7.2-11
Carry out the procedure described in paragraph: 7.2.2.2 “Tuner DVB-T board (B)” at step (4).
1. Remove the Tuner board ver. ATSC (B1), or ver. ISDB-T (B2).
Figure 7.2-12
2. Back off the 2 screws (a)
, using a medium
Phillips Screwdriver.
3. Remove the dissipater (b).
To reassemble the Tuner Boards, follows the
above steps in the reverse order.
