SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.41

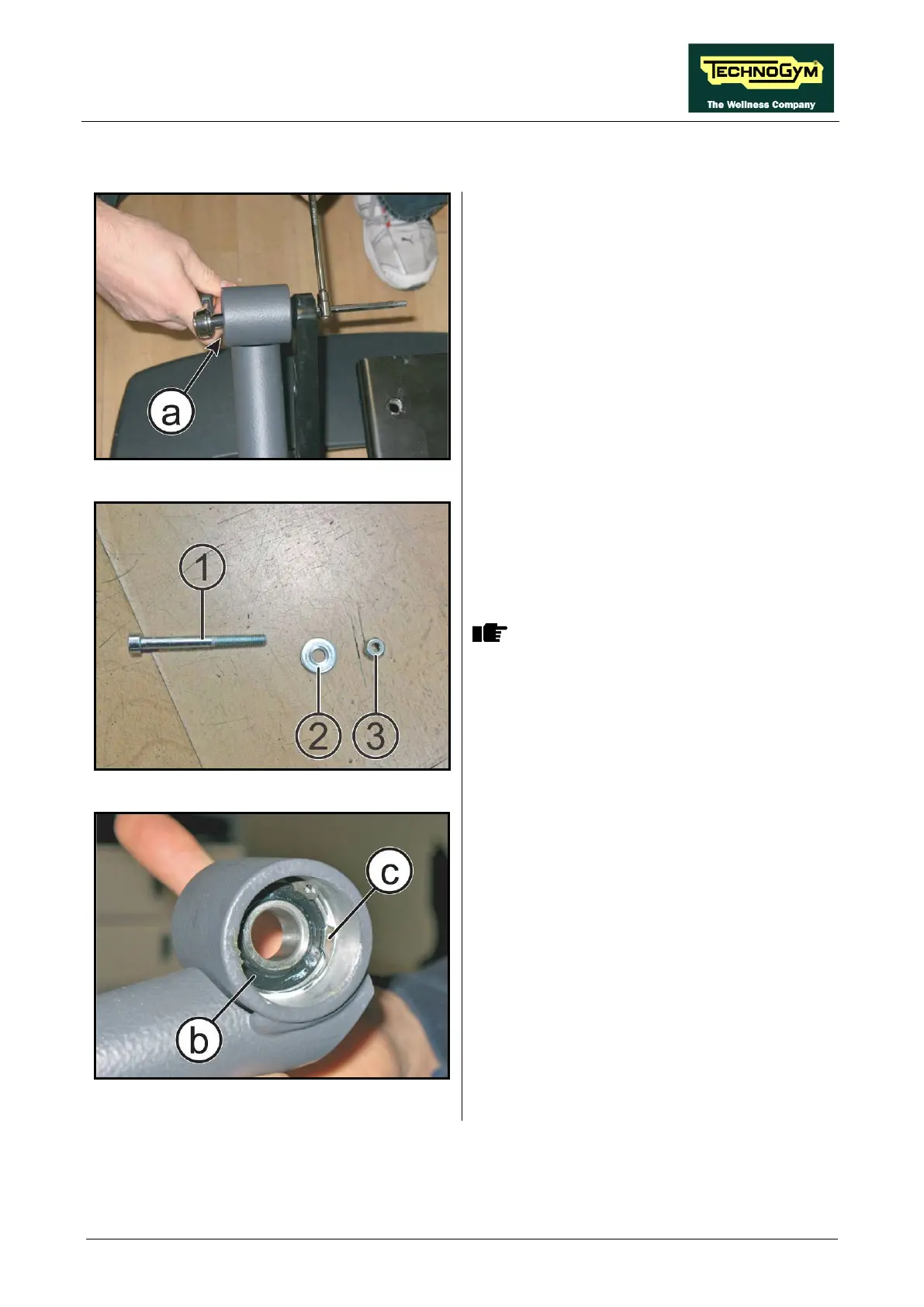

7.12. DISASSEMBLING THE PLATFORM LEVER
Figure 7.12-1
Carry out the operations described in
paragraph: 7.7. “Disassembling the guards”.
1. Back off the screw (a)
, with a 10mm
hexagonal wrench, locking it on the opposite
side.
Figure 7.12-2
During the reassembly insert first the
bolt (1) and on the opposite side the
washer (2) and the nut (3).
Figure 7.12-3
2. If necessary, replace the bearing (b):
removing the internal snap-ring (c).
Continued in following page...
