8.2. SPEED SENSOR POSITIONING
Only for powered version (500, 700 e 700WTV).

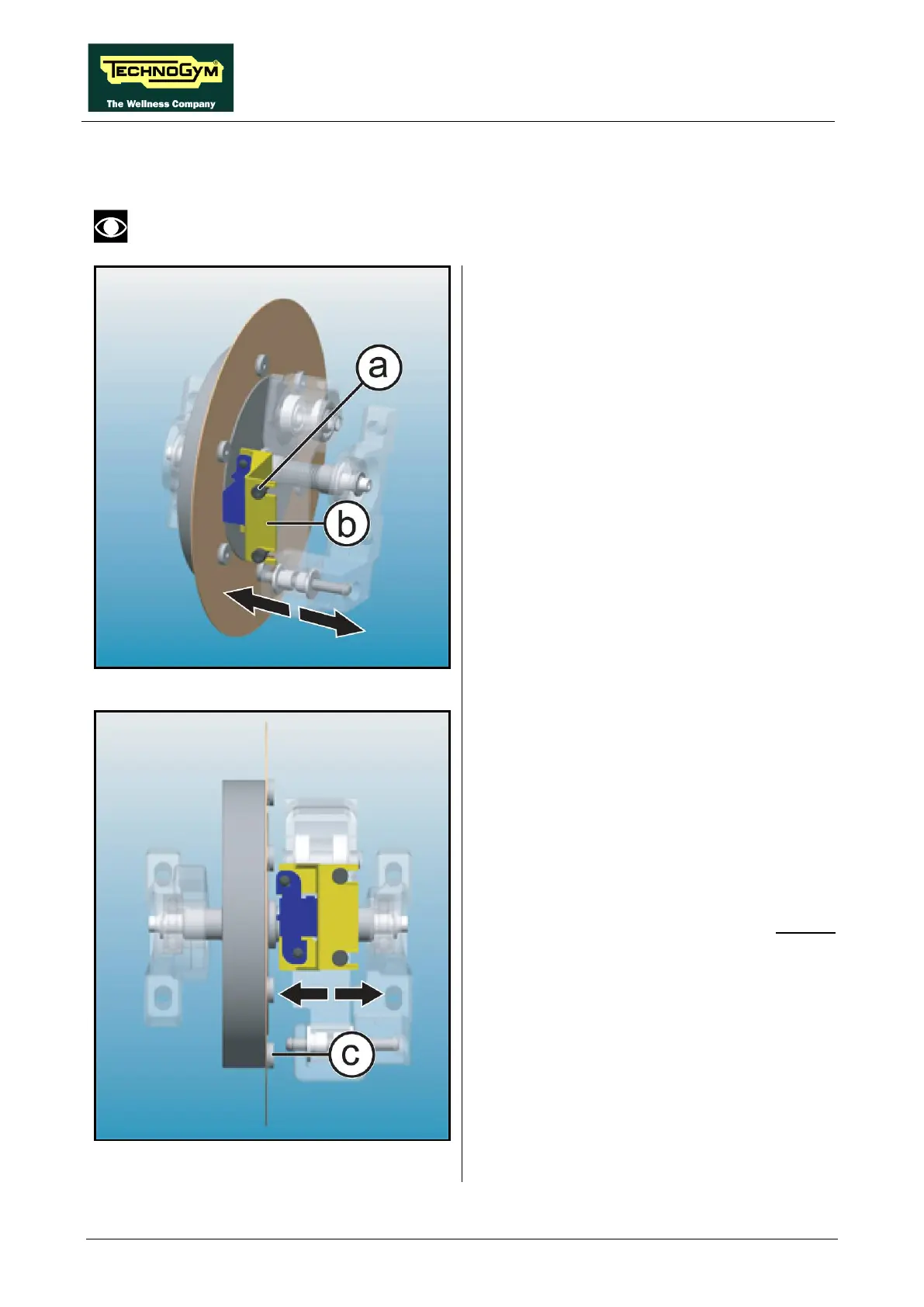

Figure 8.2-1
1. Loosen the 2 screws (a)
sensor support (b)
laterally, as indicated by
arrows.
Figure 8.2-2
2. Adjust the speed sensor so that it is 0.7 mm
from the screws heads (c) on copper dick.
3. Tighten the screws (a) again.
