SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.51
7.15. DISASSEMBLING THE SPEED SENSOR
Only for powered version: 500, 700 and 700VISIO.

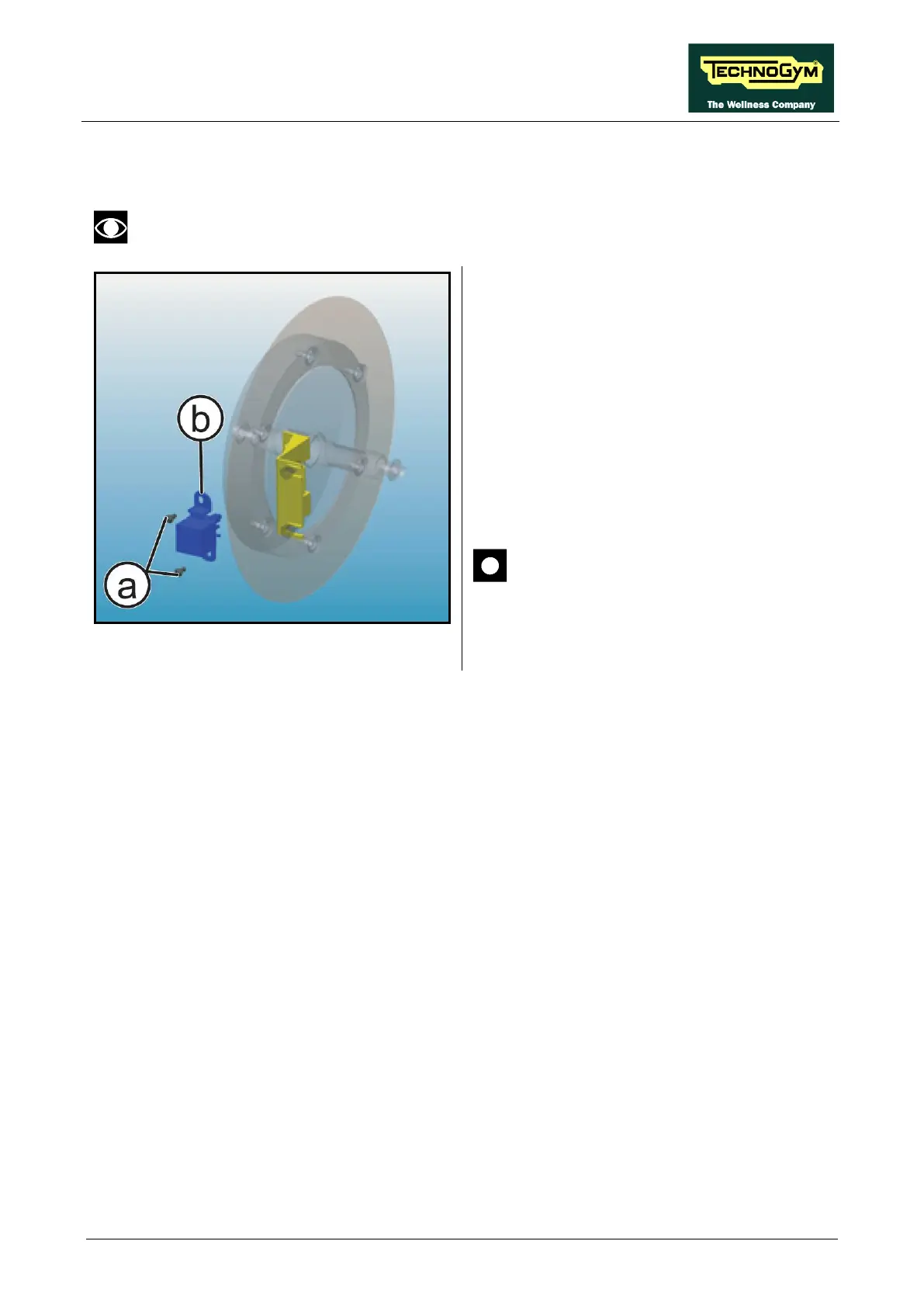

Figure 7.15-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
1. Back off the 2 screws (a)
Phillips screwdriver.
2. Remove and/or replace the speed sensor (b).
To reassemble the speed sensor, carry out the
above steps in reverse order.
CAUTION: After completing the
reassembly, carry out the adjustment
procedure described in paragraph:
8.2. “Speed sensor positioning”.
