SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.50

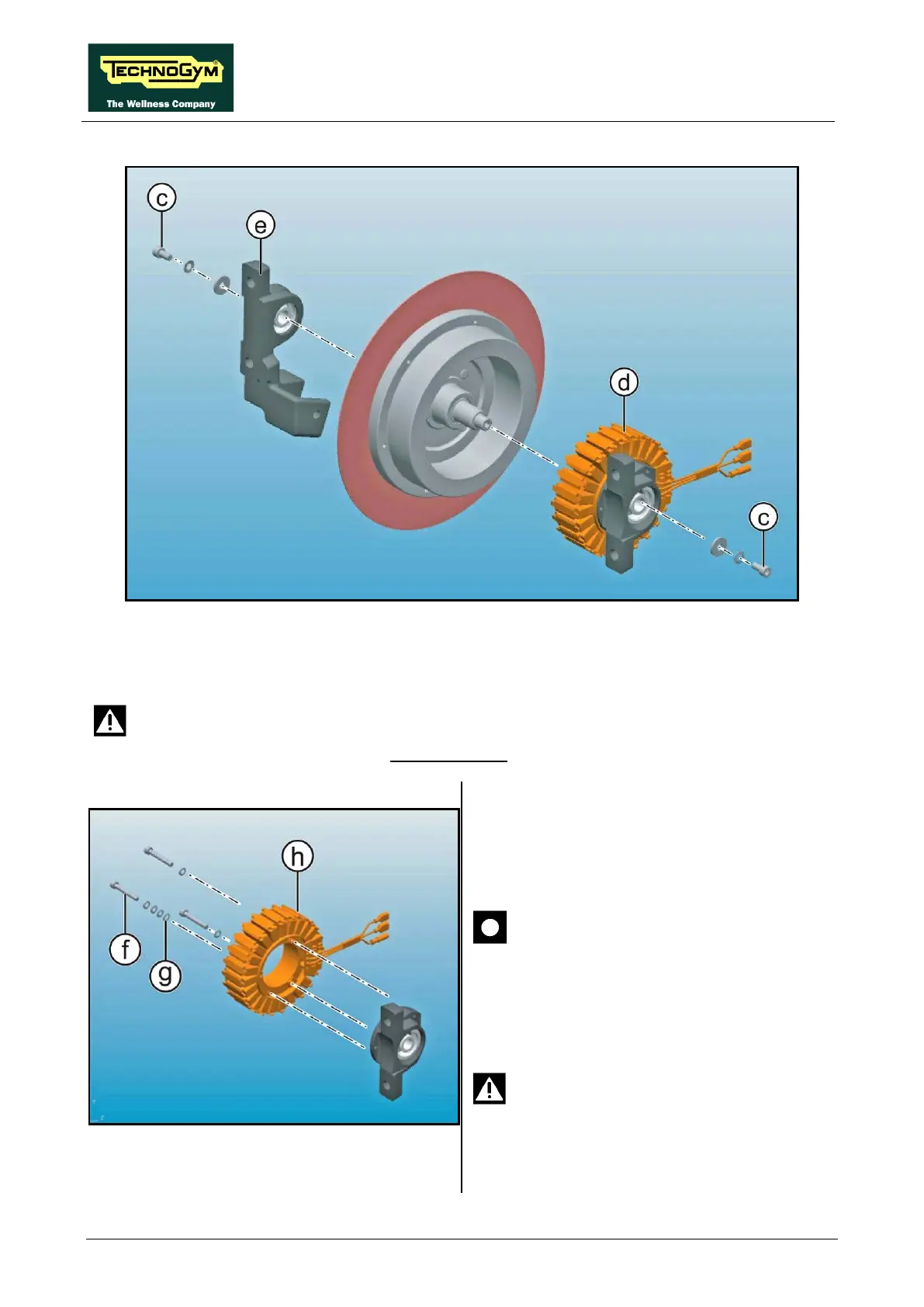

Figure 7.14-8
1. Back off the 2 screws (c) with two 5mm hexagonal wrenches, one opposite to the other.
2. Remove the stator group (d) and the belt tension system support (e) on the opposite side.
WARNING: During reassembly, lock down the screws (c) using
setting of 10Nm and using the LOCTITE 243.
Figure 7.14-9
3. Back off the 3 screws (f) with a 4mm
hexagonal wrench and the relative flat spring
(g).
4. Remove and/or replace the stator (h) if
necessary.
CAUTION: The screws (f), should be
tightened using a torque wrench
setting of 22 Nm.
To reassemble the stator, carry out the above
steps in reverse order.
WARNING: Remember to place all 4
flat springs “g” again on the screw (f);
otherwise you can not tighten
properly.
