Technogym SYNCHRO Excite + - Dual TGS reader + USB port (G)

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.16
7.2.2.8. Dual TGS reader + USB port (G)

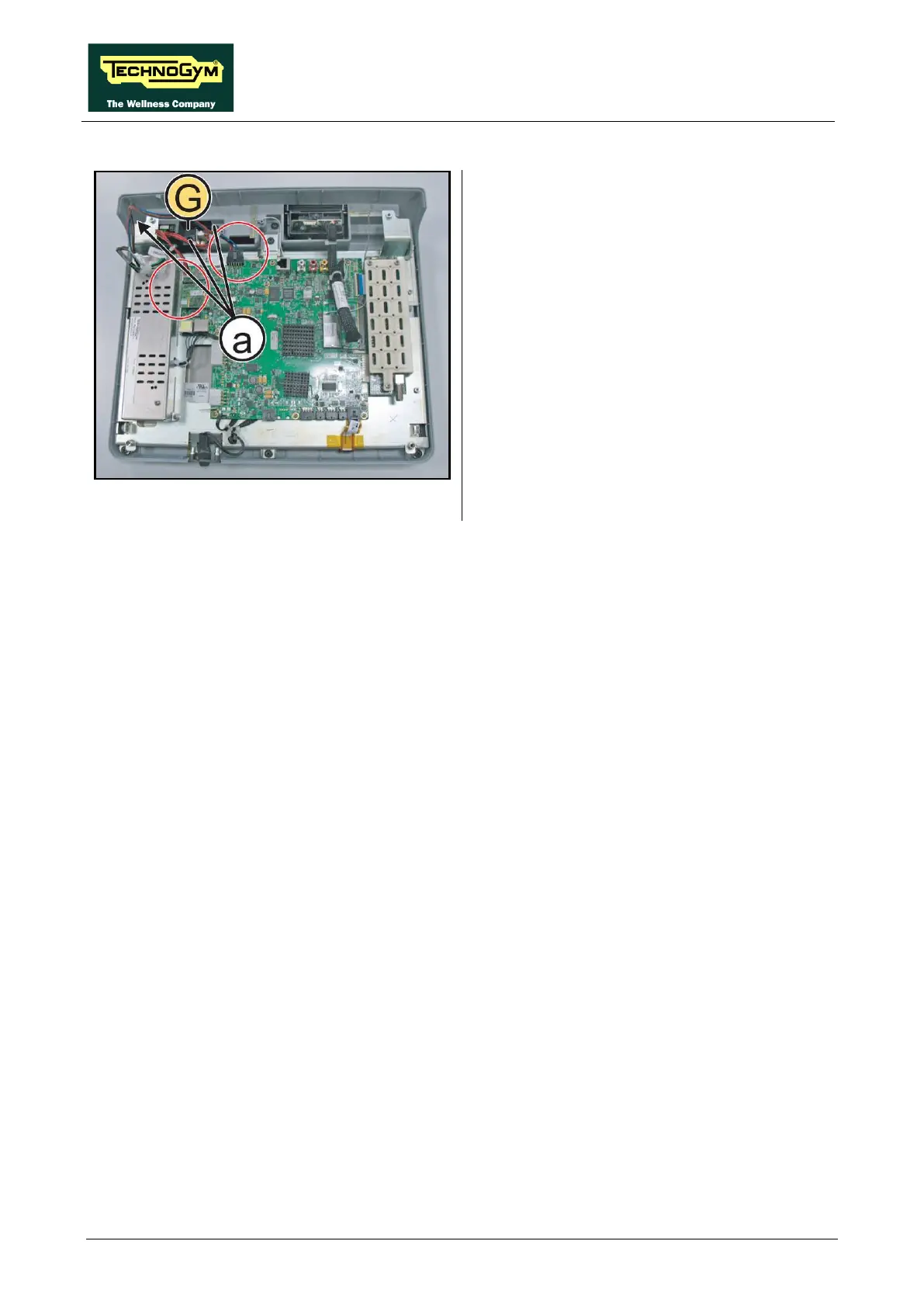

Figure 7.2-19
1. Unplug the cables highlighted in the figure.
2. Back off the 3 screws (a)
using a medium
Phillips Screwdriver.
3.
Remove the TGS group and the USB port
(G), as indicated in the figure at the side.
To reassemble the Dual TGS reader and the USB
port, follows the above steps in the reverse
order.
