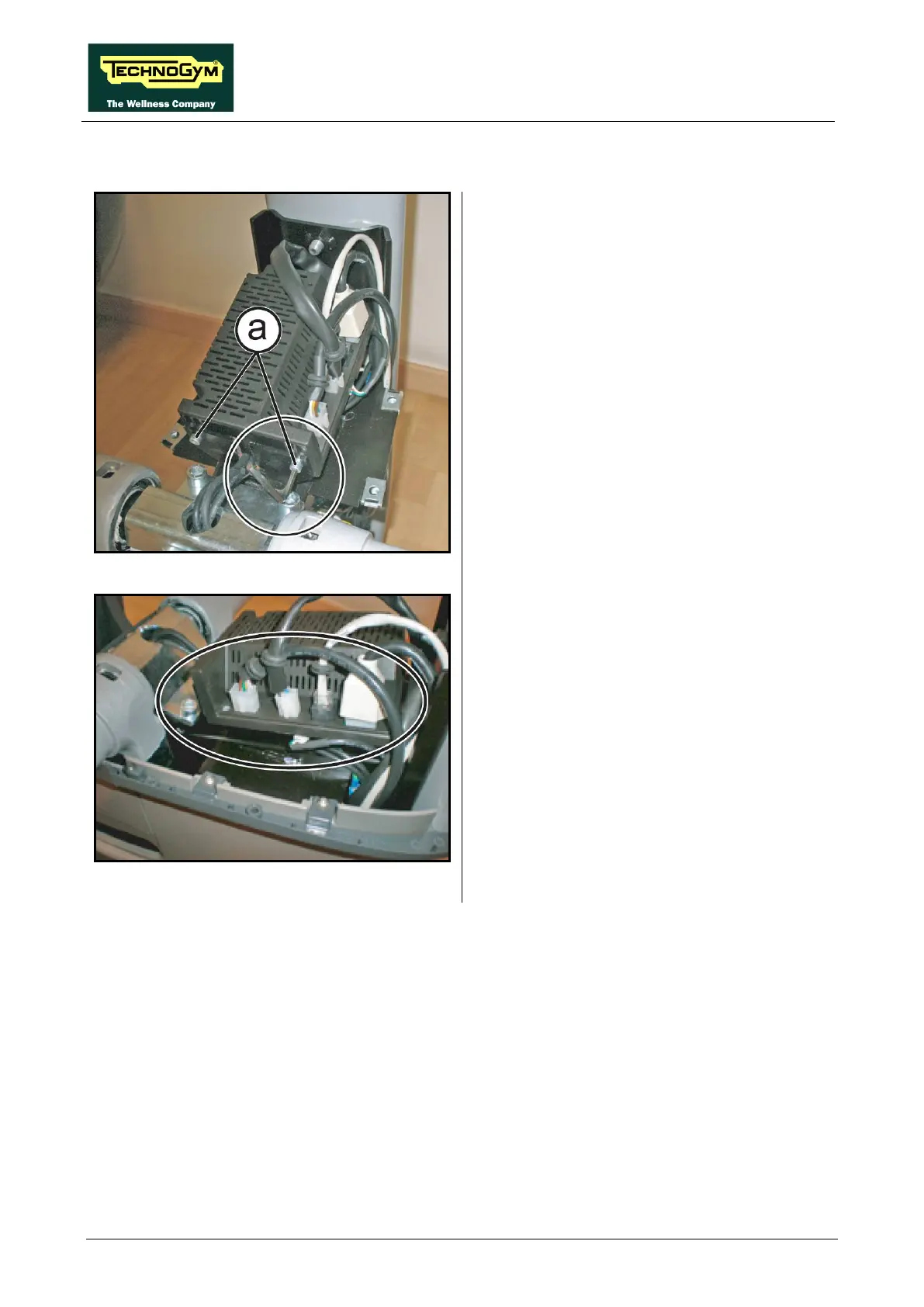

7.9. DISASSEMBLING THE BRAKE BOX
Figure 7.9-1
Carry o
ut the operations described in
paragraph: 7.7.2. “Brake box cover guard”.
1. Back off the 2 screws (a)
, with a 4mm
hexagonal wrench.
Figure 7.9-2
2.
Disconnect the 4 connectors highlighted in
the figure at the side.
3. Replace the brake board if needed.
To reassemble the brake box, carry out the above
steps in reverse order.
