SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.49
7.14.2. SELF-POWERED MODELS
Only for Self-powered models: 500SP and 700SP.

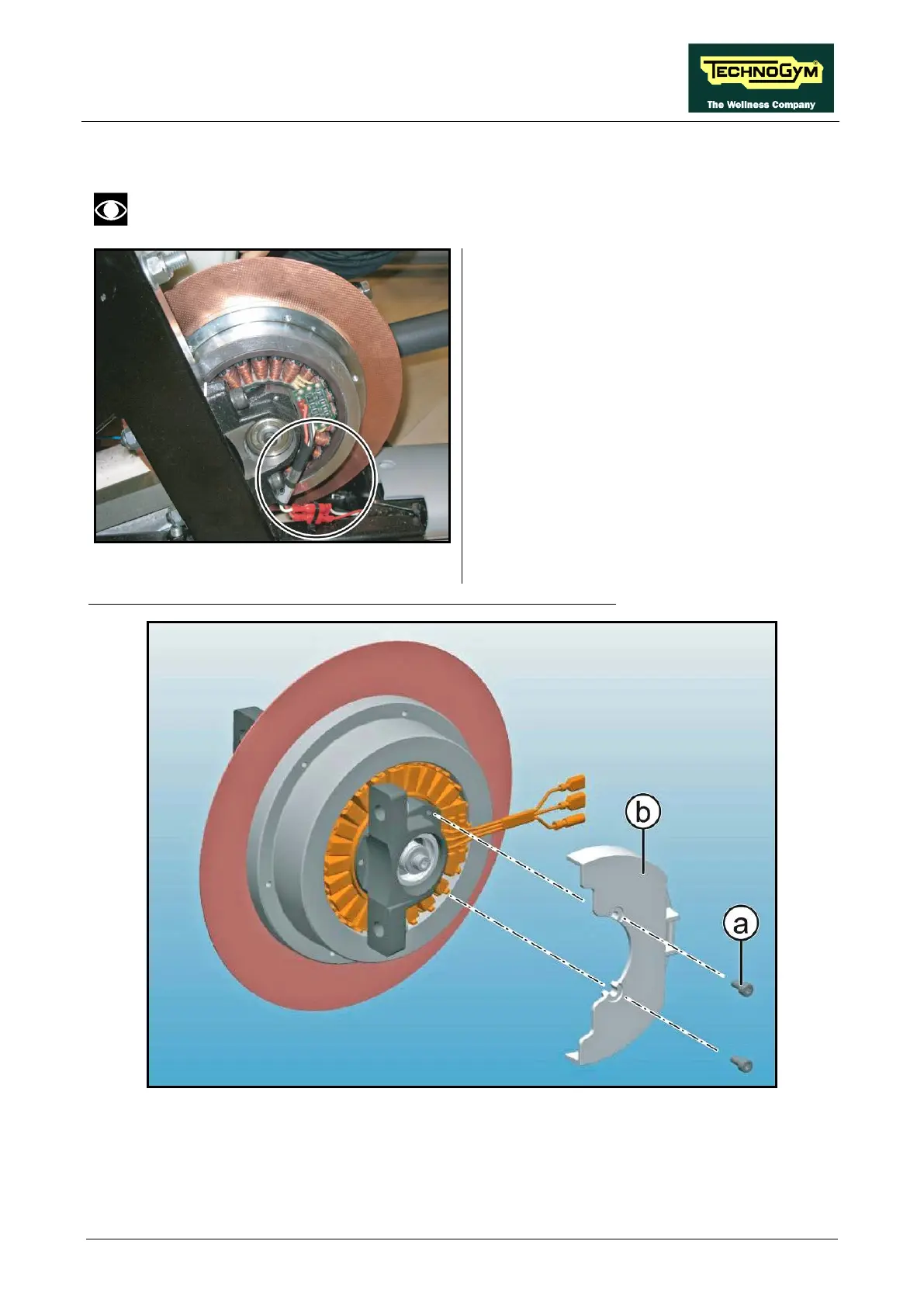

Figure 7.14-6
In order to bring the flywheel group on a
workbench, carry out the operations described in
paragraph: 7.14.1. “Powered models”
disconnecting the 3 Faston
figure.
Bring the flywheel group on a work bench, as for the powered version:
Figure 7.14-7
1. Back off the 2 screws (a) with a 4mm hexagonal wrench.
2. Remove the covering plate (b).
Continued in following page...
