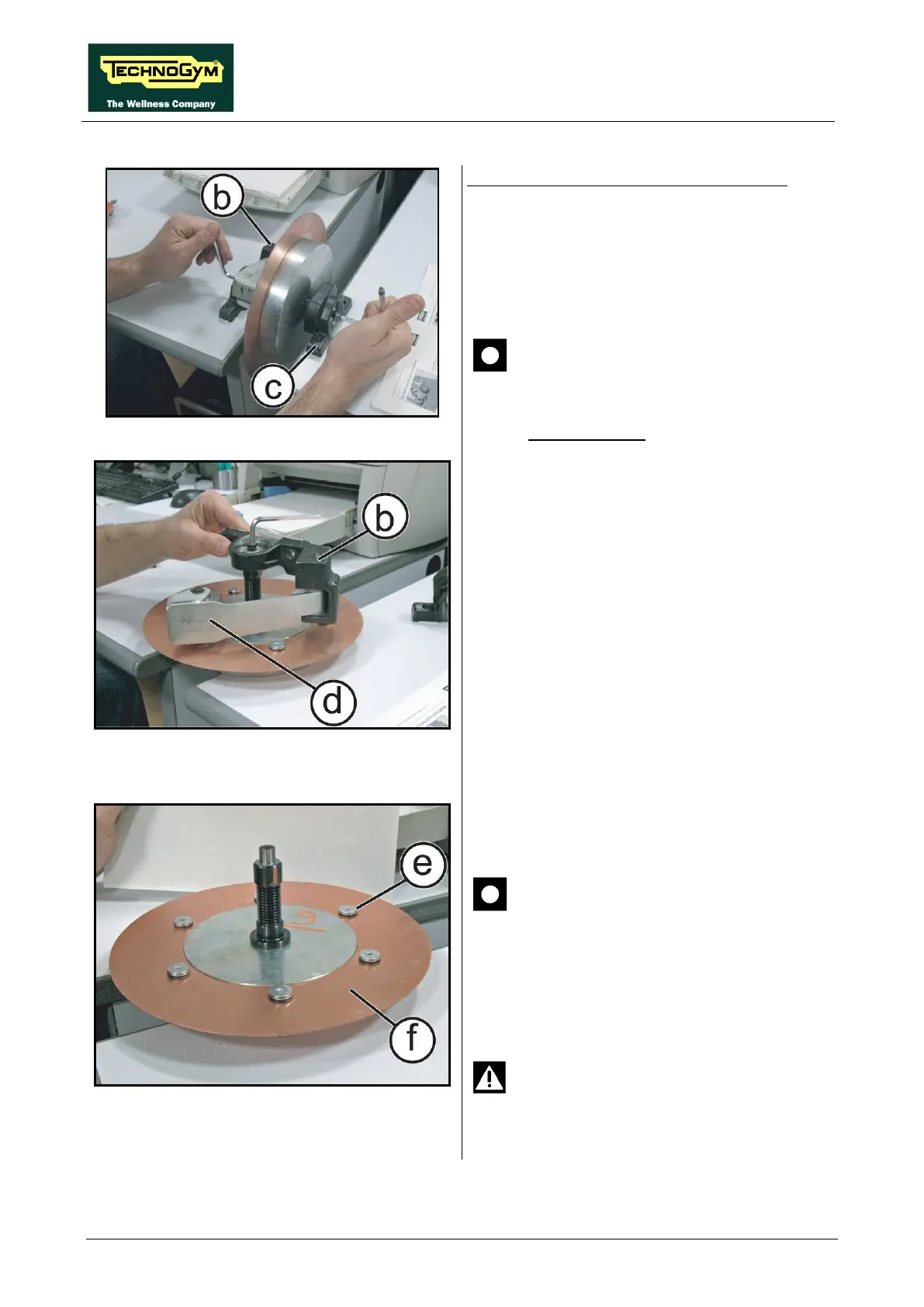

Figure 7.14-3
Bring the flywheel group on a work bench:
4. Remove the 2 pillow blocks (b) and (c) using
two 5mm hexagonal wrenches, one against
the other.
5. Remove the 2 pillow blocks.
CAUTION: During reassembly lock
down the shaft screws, using a torque
wrench setting of 10Nm and using the
LOCTITE 243.
Figure 7.14-4
6.
Unthread the pillow blocks belt tension
system (b).
7. Replace the tension system belt (d) if
necessary.
Figure 7.14-5
8. Back off the 6 screws (e) with a 4mm
hexagonal wrench.
9. Replace the copper disk (f), if necessary.
CAUTION: During reassembly, lock
down the screws (e) using a torque
wrench setting of 6Nm.
To reassemble the flywheel group, carry out the
above steps in reverse order.
WARNING: Take particular care
with the copper disk, since it can bend
easily.
