6.3.2. SP MODELS

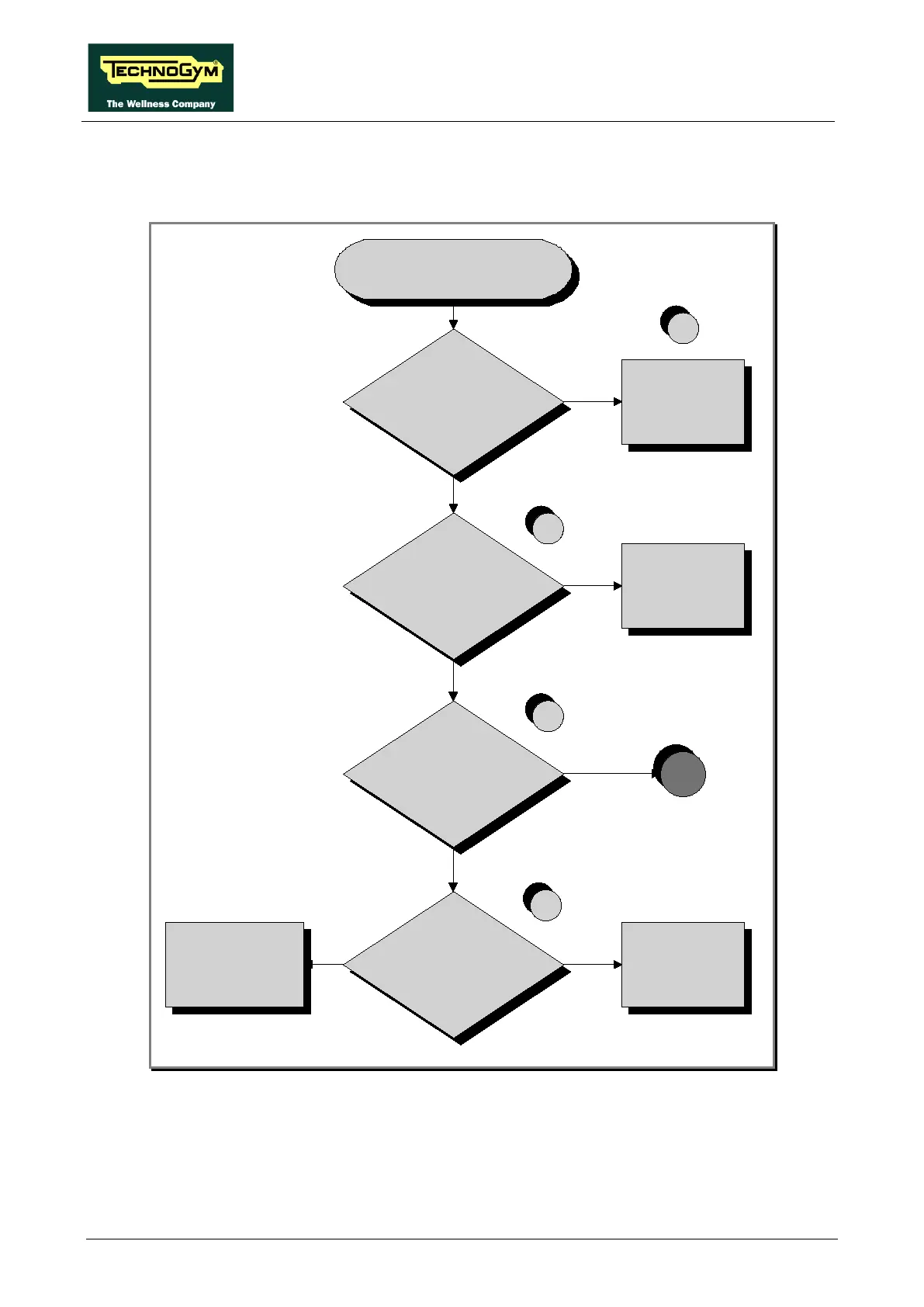

6.3.2.1. The Display does not illuminate
Is the user pedaling?
Are the LEDs on the
Display Board lit on?
Are the LEDs on the Brake
Board, lit on while
pedaling?
Correct operation: after
30 seconds without
pedaling the machine
switches off
Replace the
Display Board
THE DISPLAY DOES
NOT ILLUMINATE
NO
YES
NO
YES
NO
YES
2
1
B
Chack the cable that
connect the Low Kit with
High Kit.
Are the voltages at the
output of the Brake Board
correct?
NO
3
Replace the
Brake Board
YES
4
Continued on following page ...
