SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.29

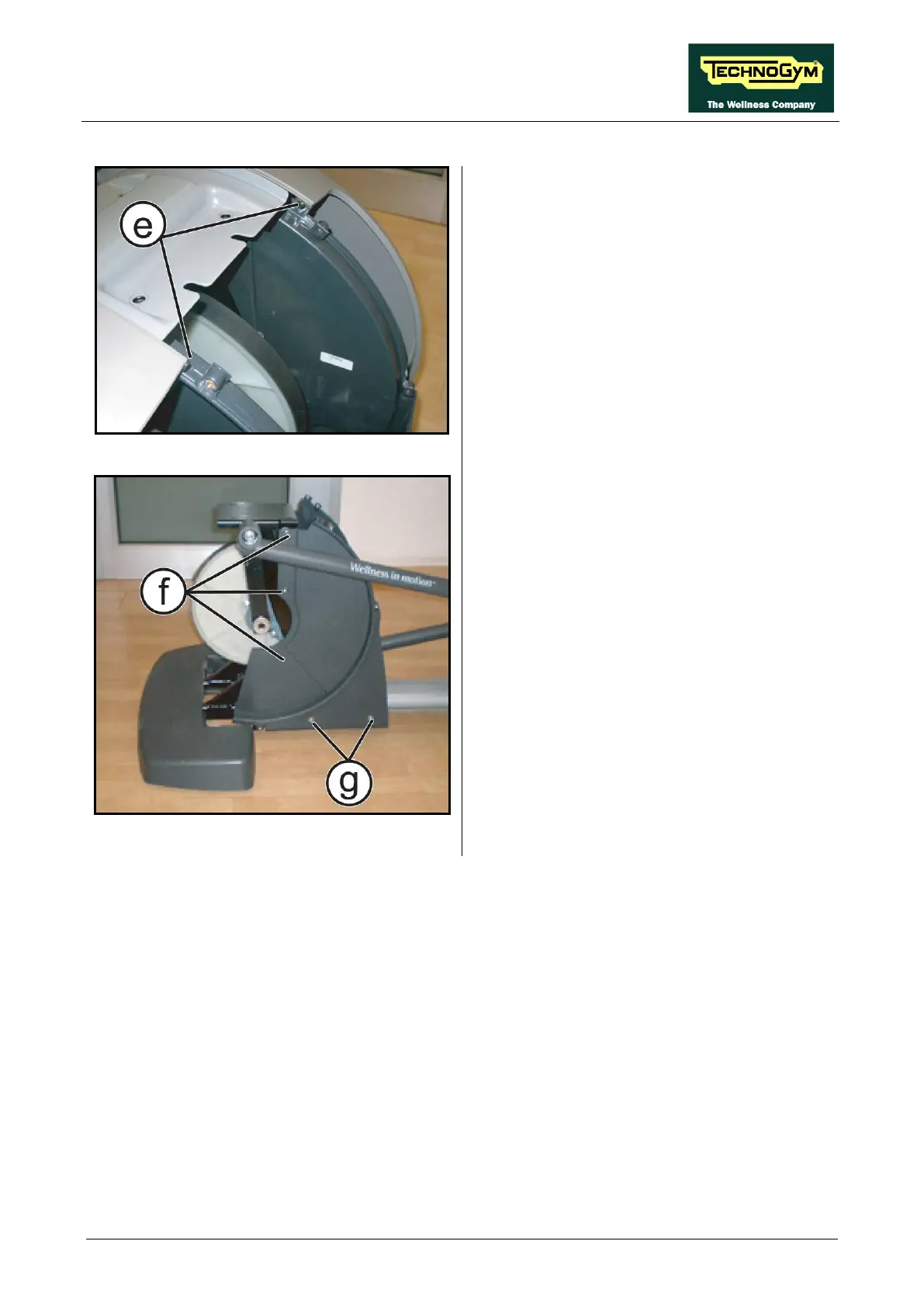

Figure 7.7-4
6. Back off the 2 screws (e)
, with a medium
Phillips screwdriver
Figure 7.7-5
7. Back off the 3 screws (f), on both side of the
machine, using a medium Phillip screwdriver
8. Back off the 2 screws (g)
, with a 4mm
hexagonal wrench.
9. Remove the guard.
