Technogym SYNCHRO Excite + - Page 107

SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.9

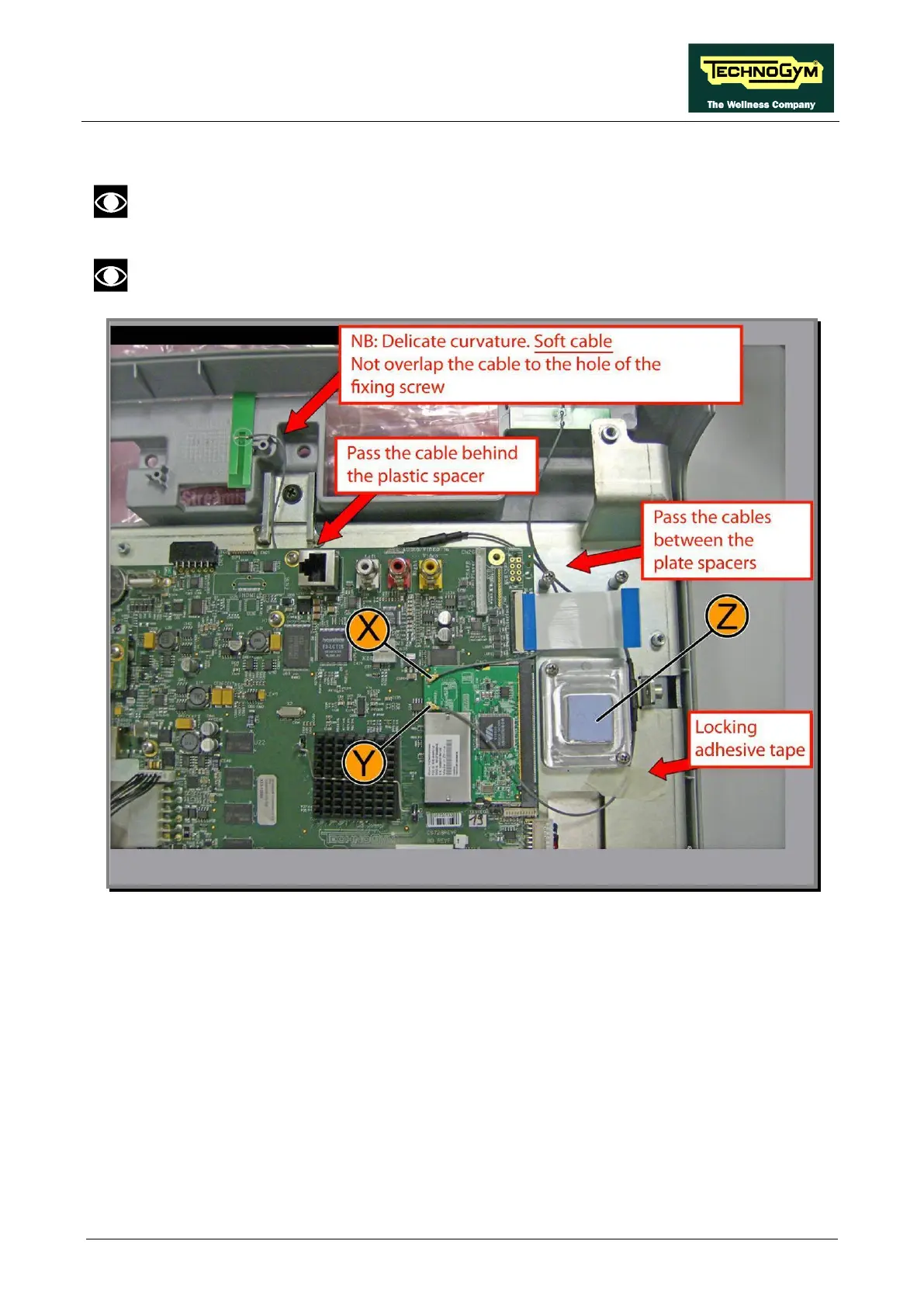

To reassemble the antenna cables (X) and (Y), follow the routing shown below.
The Dissipator (Z) is only on the ATSC and ISDB-T version.
Figure 7.2-8
