SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.25

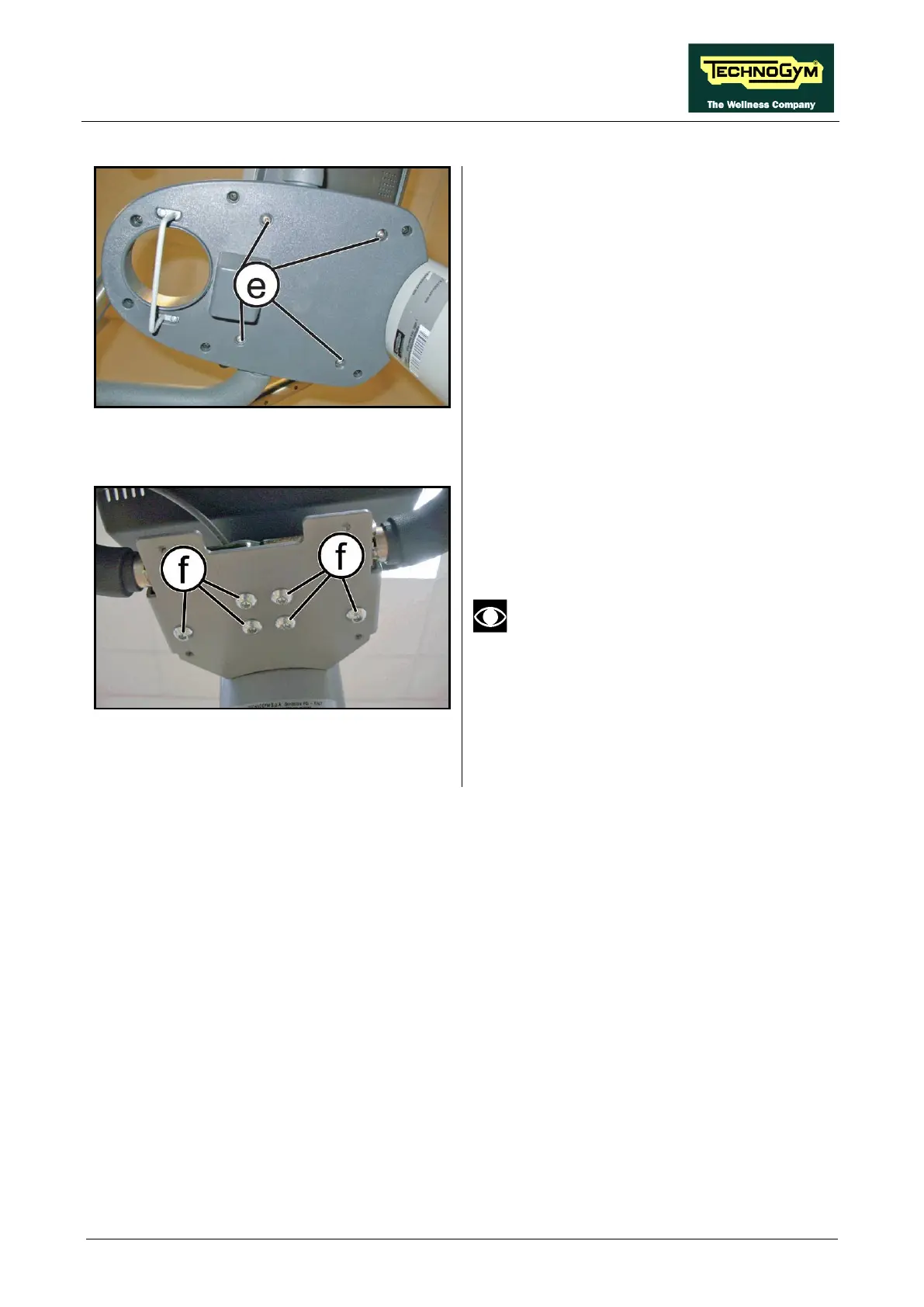

Figure 7.5-4
1. Back off the 4 screws (e)
hexagonal wrench.
6. Remove the lower tray bracket.
Figure 7.5-5
2. Back off the 6 screws (f) with a 6mm
hexagonal wrench (
back off the 3 at the right
side or at the left side depending on the
handlebar you want to remove).
3. Remove the handgrips.
In case of a 700 machine, before
disassembly the levers, d
isconnect the
Hand Sensor cables leaving from
upright, down when to come out.
To reassemble the handgrips, carry out the
above steps in reverse order.
