Tektronix GeoProbe G10 Installation Guide

G10 Installation Guide 7.13.2 33 
2
Install Hardware and Power Cabling
Rev. 005-140228
3. Position the enclosure into the rack and attach the front bracket to the rack with
two rackmount screws (Figure 2.16).

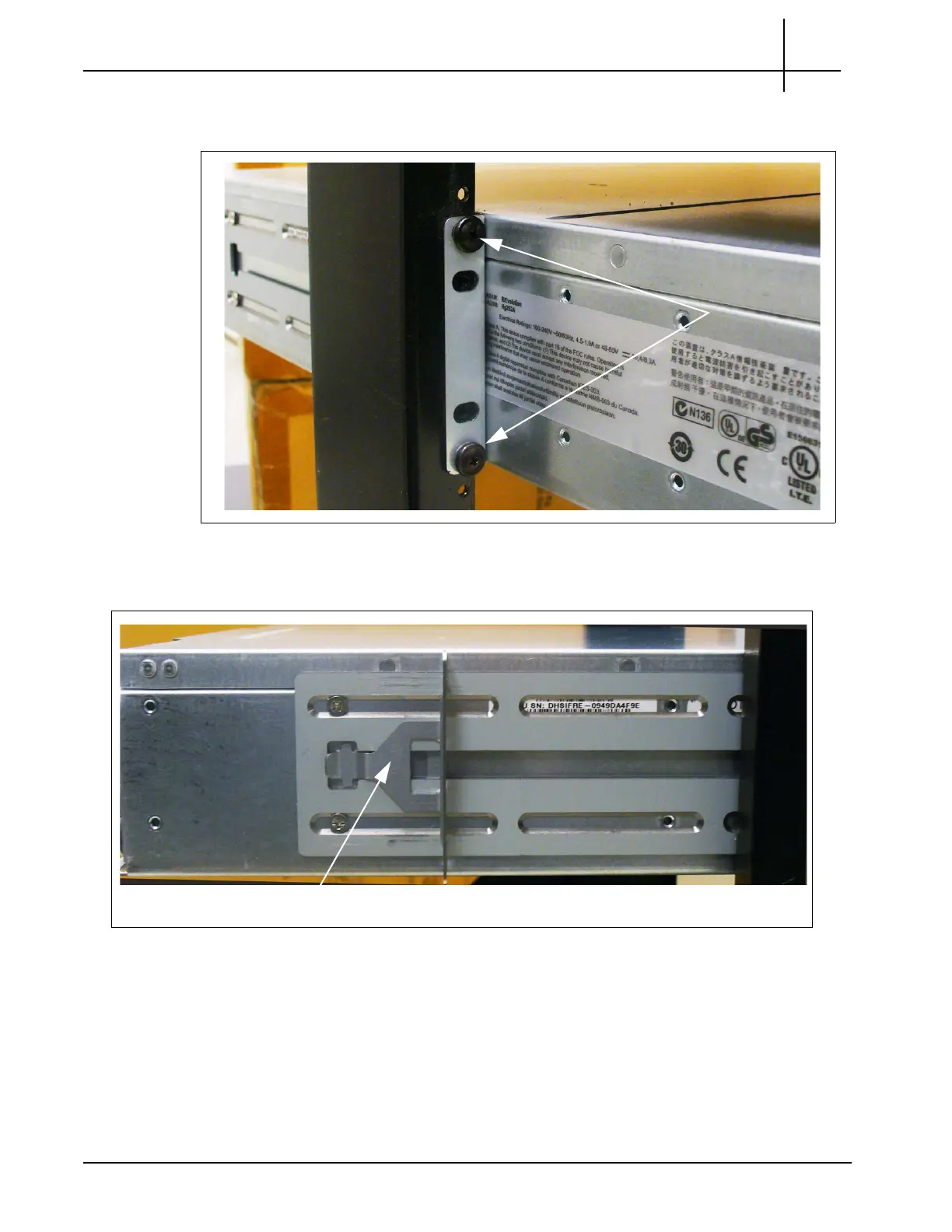

Figure 2.16 - Securing Front Bracket to Rack
4. Insert the rear brackets into the main bracket as shown in Figure 2.17.
Figure 2.17 - Inserting Rear Bracket into Enclosure Main Bracket
Rackmount
Screws
Rear Bracket
