Power On G10 and Configure Network Connectivity
Rev. 005-140228
 The CPU LED is AMBER on the FPC100 and GREEN on the FPC200
AMC, indicating the processor has normal functions.

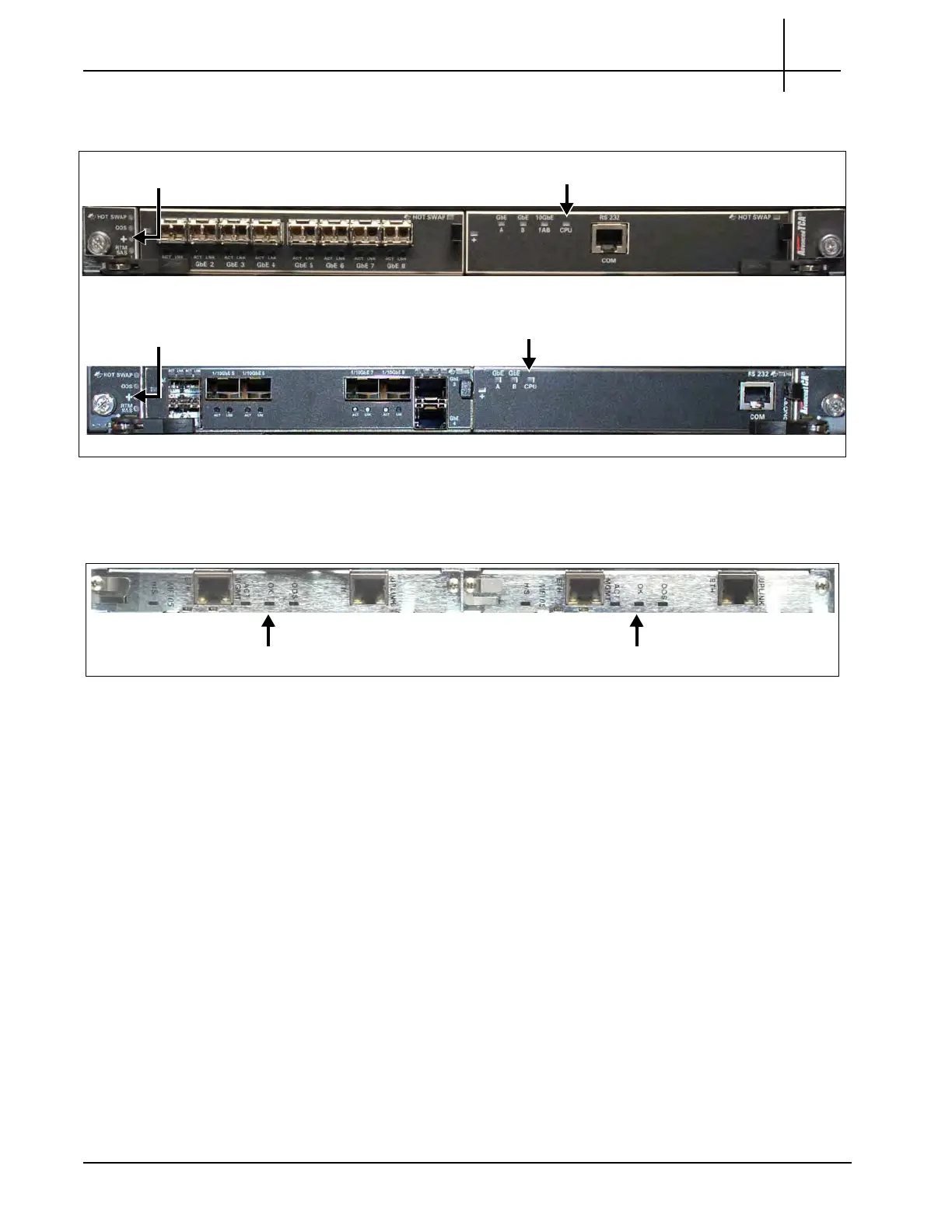

Figure 4.4 - G10 IIC LED Verification
6. Verify that the SHmm OK LEDs on the rear of the chassis are GREEN
(Figure 4.5).
Figure 4.5 - SHmms on G10 Chassis Rear
FPC100 AMC CPU LED (Amber)
IIC + LED
FPC200 AMC CPU LED (Green)
IIC200 + LED
IIC100
IIC200
Shmm OK LED Shmm OK LED
