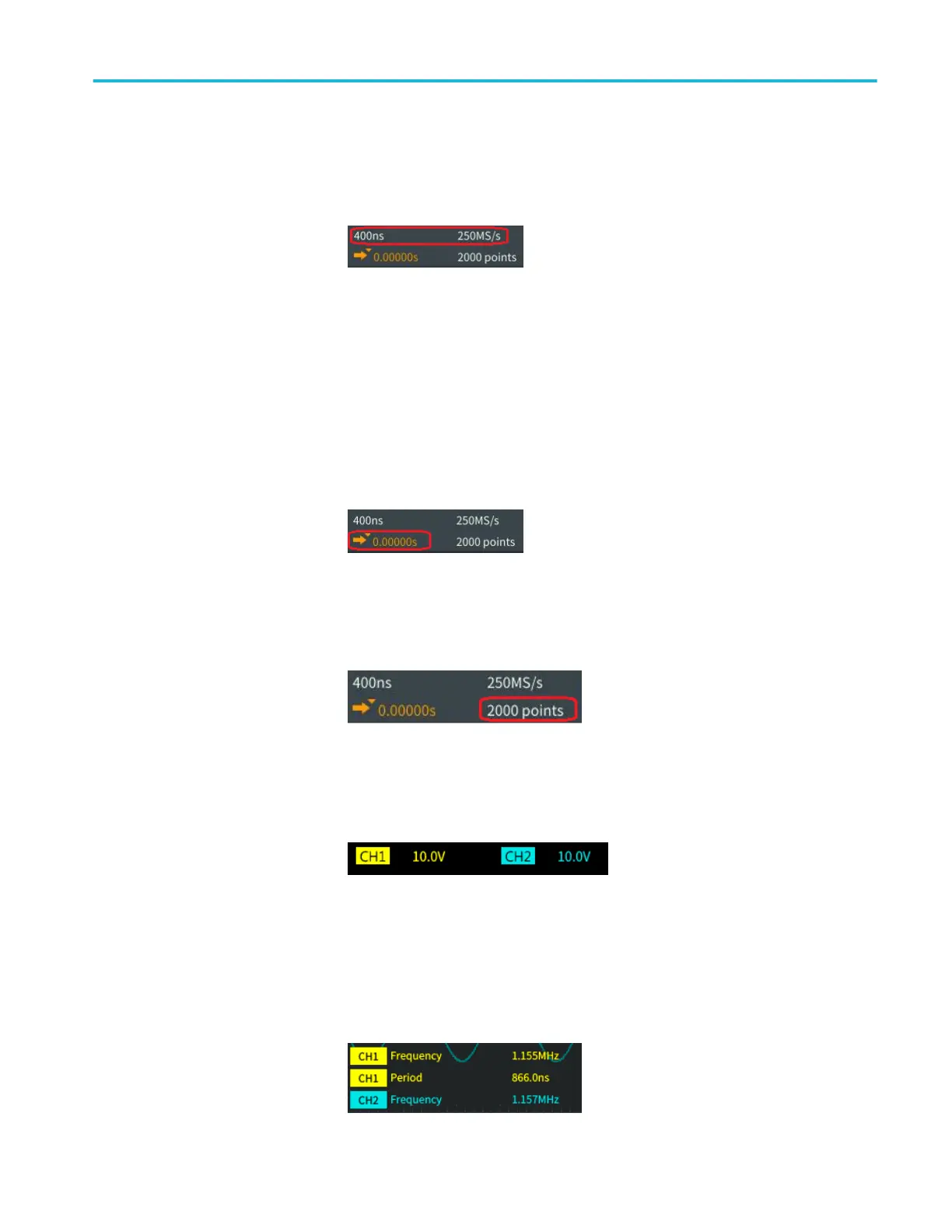

The horizontal position/scale readouts show the horizontal scale setting
(time per major horizontal graticule division; adjust with the Horizontal
Scale knob) and the sample rate (number of samples per second).
The trigger Delay Mode readout is the time from the T symbol to the
expansion point icon (adjust with the Horizontal Position knob).
Use horizontal position to add delay between when the trigger occurs and
when you actually capture the data. Insert a negative time to capture more
waveform data before the trigger event.
When Delay Mode is off, this readout shows the time location of the trigger
within the waveform record, as a percentage.
The Record Length readout shows how many samples are being stored for
the current waveform records. See Setting the record length on page 74.
10. The channel readouts shows the channel scale factor (measurement units per
major vertical graticule division), input signal coupling, signal invert status,
and the oscilloscope bandwidth setting. Adjust these settings by using the
Vertical Scale knob and the channel 1, or 2 menus.
11. The measurement readouts show the selected measurements. You can select
up to six measurements to display at one time. See Taking automatic
measurements on page 87.
Push the Menu On/Off button to toggle on off the display of the
measurement readouts on the screen.
Appendices
TBS1000C Series Oscilloscopes User Manual 173
