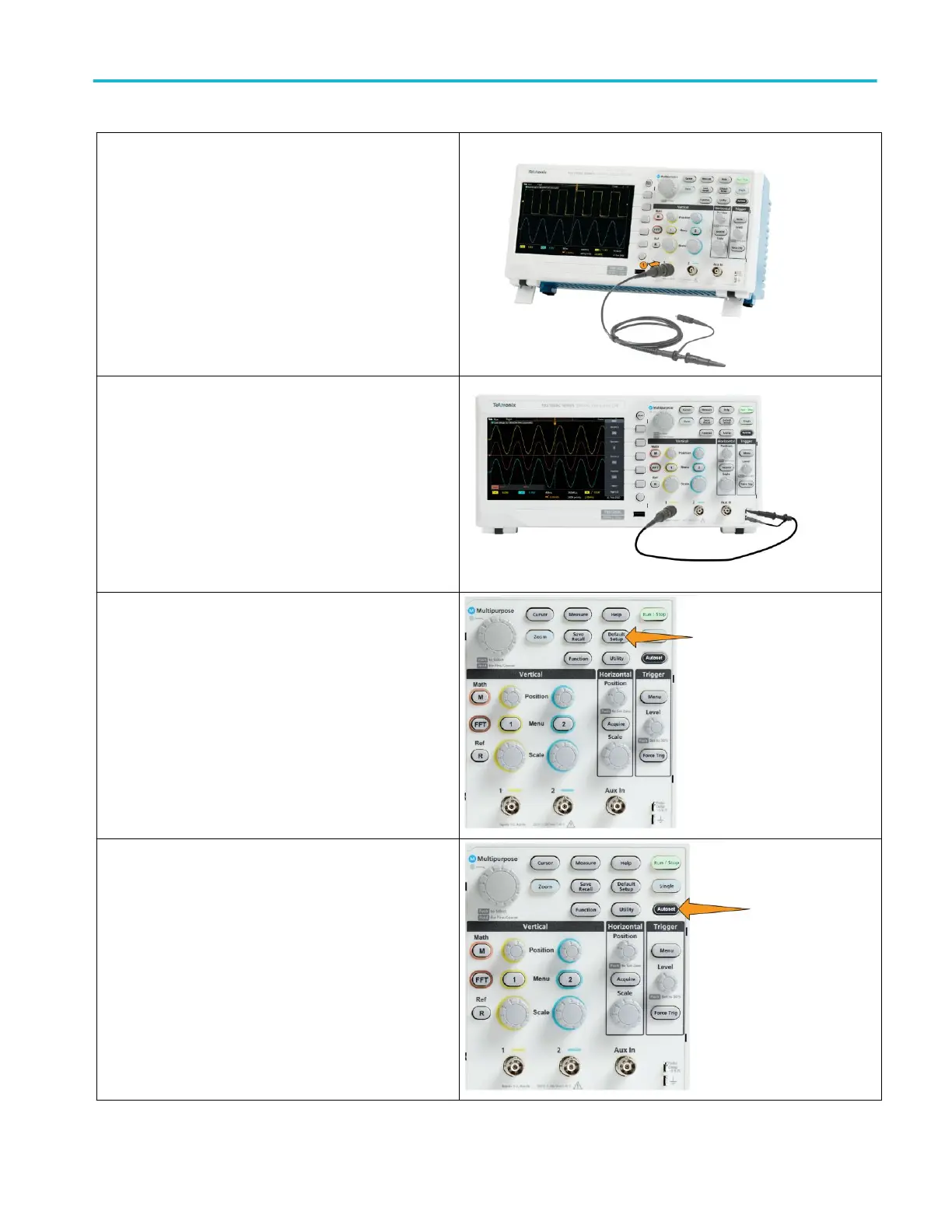

Connect a probe to channel 1.
Connect the probe tip and ground lead to the PROBE COMP
connectors on the oscilloscope front panel. The probe tip
connects to the 5 V connector, and the ground clip connects to
the ground connector.
Push Default Setup. Default Setup returns the oscilloscope
settings to factory default values. See The default oscilloscope
settings Default Setup on page 178.
Push Autoset.
Getting acquainted with the oscilloscope
TBS1000C Series Oscilloscopes User Manual 25
