ROUTINE MAINTENANCE
Diode Sensor Calibration (DUT Mode)
TP04300 Series Interface & Applications Manual 5-45

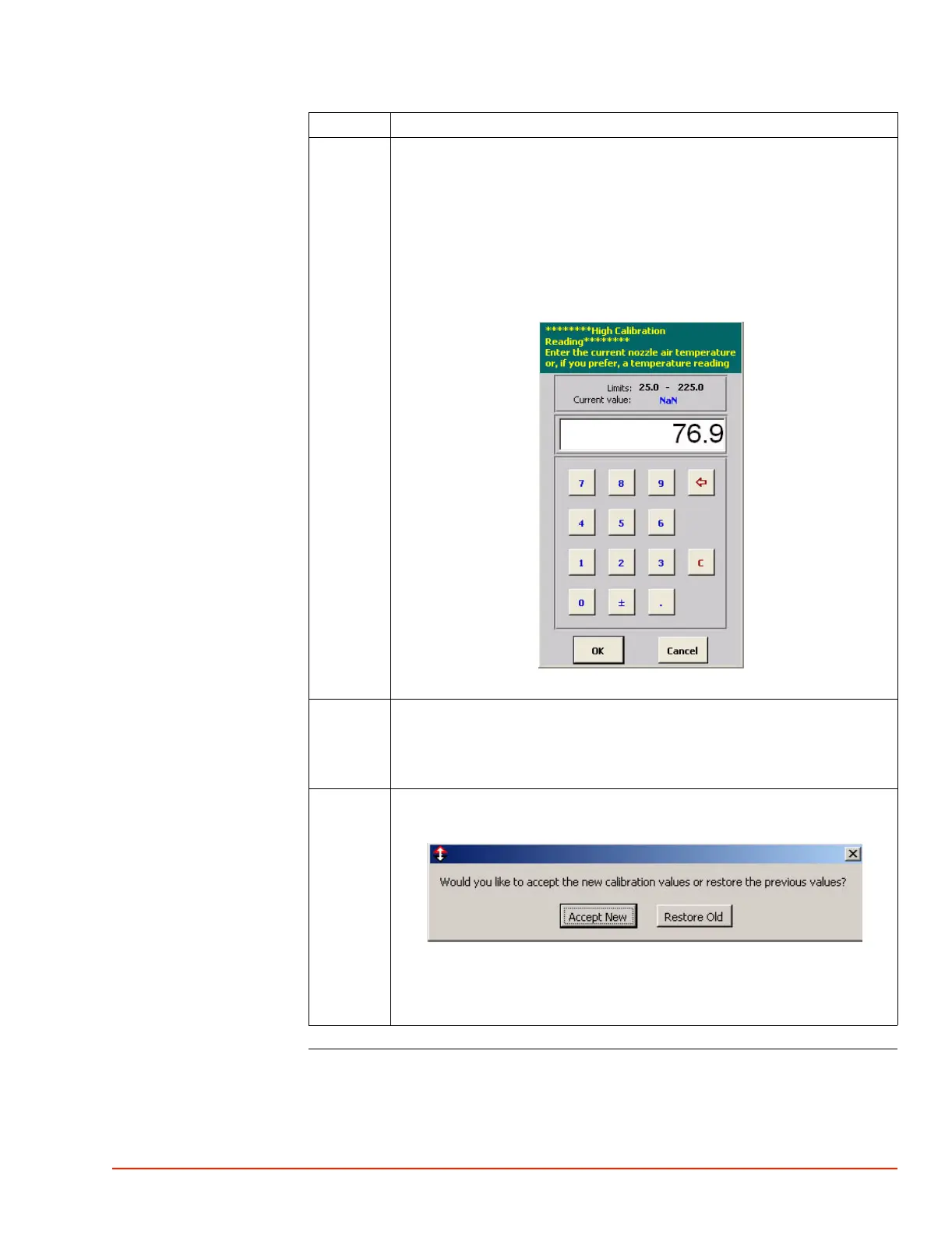

11 Enter the ***High Calibration Reading***.
The High Calibration Reading is the temperature that is displayed on the
External Meter.
In the Example below, 80.0 was the High Calibration Setpoint, 76.9 was the
temperature displayed on the External Meter.
Enter the External Meter Reading.
Press “OK”.
12 This completes the Diode Calibration.
The low and high setpoints will be displayed with the Diode’s corresponding
millivolt values.
Press Next and Done to finish.
13 A prompt will ask you if you want to save the calibration values.
Accept the new values or Restore the previous values as desired.
You will be returned to the Main Calibration Screen.
