Temptronic ThermoStream TP04300 Series - Page 283

Perform production testing, design verification and characterization at precise temperature.
Create and then view up to
18 ramp/soak/cycle thermal profile routines at one screen.
Control via front panel touch screen or remote interface (IEEE-488, RS232, ST/ET/SFF, Ethernet).
Customize ramp/soak/cycle, “At Temperature” Windows, air flow rate and air/DUT temperature control.
Select from four DUT sensor inputs (Type T, Type K thermocouples, 100 ohm RTD or NEW Internal Diode).
Four color touch screen displays: Cycle Screen Graphic Display, Operator’s Screen (Hot/Ambient/Cold) Display,
Data Logging Display and Expanded Temperature View Display.
For repeatability, save thermal profiling routines and data logging files to the hard disk or diskettes.
Add
printer, monitor, mouse and keyboard via I/O ports.
Using the optional ThermoFixture enclosure with a turnkey tester interface, test PCBs, MCMs and
subassemblies of all sizes in a moisture-free environment from -80º to +225ºC.
View the
air, DUT and set temperatures
simultaneously
on Cycling Screen Graphs.
Produce
brilliant graphs of thermal test results
using data logging and full color graphing features.
The Status Banner at the top of most screens
displays the current air, DUT and set temperatures,
“At Temperature” window and set test parameters.
Monitor temperature status from across the room

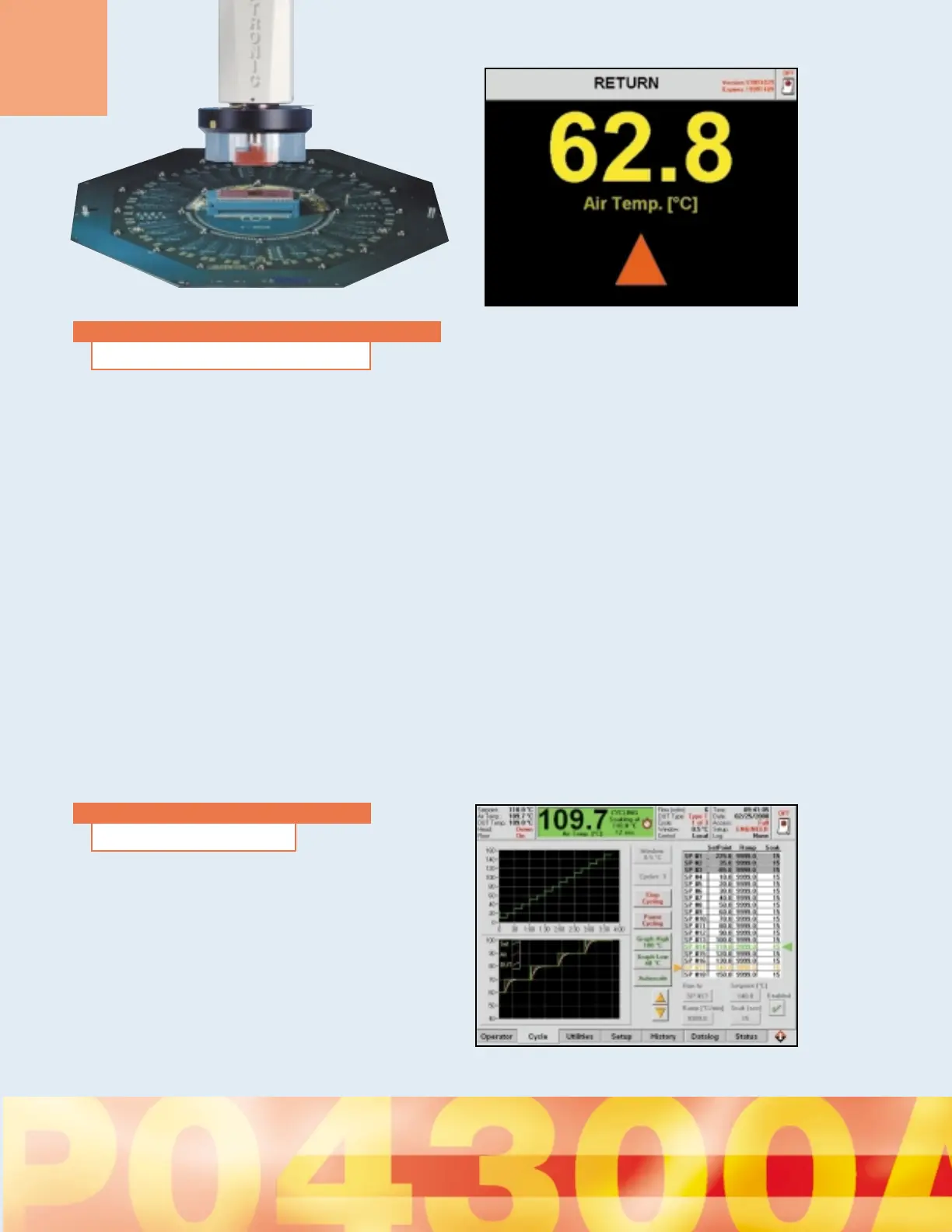

EXPANDED TEMPERATURE VIEW
Streamlined and Full-Featured Control
Flexibility to Adapt to Each Application
Real-Time Thermal Test Status
Graphically and Numerically
CYCLING SCREEN
