Temptronic ThermoStream TP04300 Series User Manual

. . . . .
SYSTEM OPERATION
Manipulator Locks
TP04300 Series Interface & Applications Manual 3-5

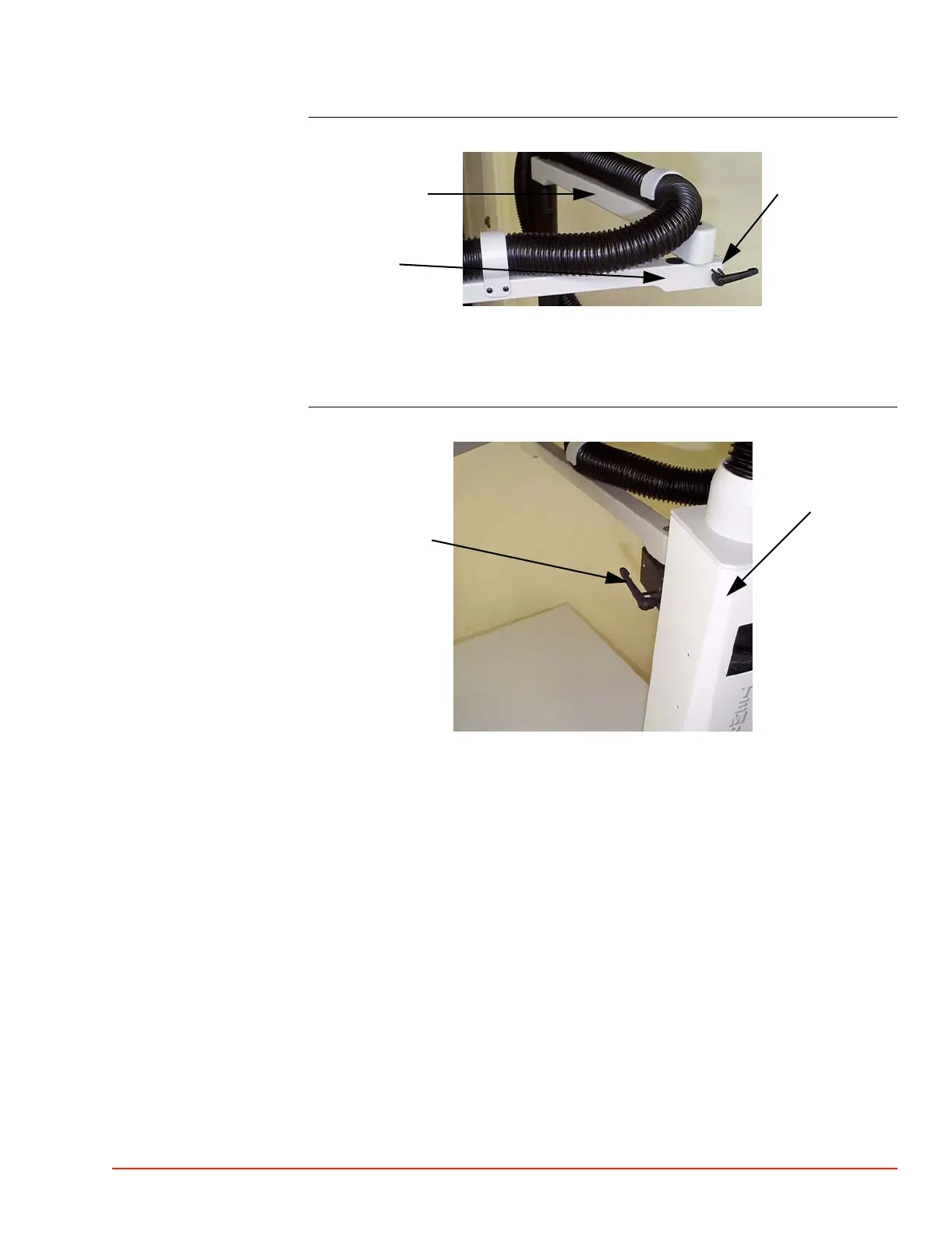

Lock #2:
Lower Arm
Pivot Lock
Tighten lock to clamp any horizontal pivot movement of the manipulator lower arm. When
loosened, the lower arm can be turned up to 150 degrees in either horizontal direction from the
centerline of the upper arm.
Lock #3:
Head
Tilt/Swing
Lock
Tighten lock to clamp any forward/backward tilting, and/or vertical swinging of the Head.
When loosened, the Head can be tilted backward/forward 7 degrees from vertical. Also, the
Head can be swung (back/forth) vertically (sideways), up to 90 degrees in either direction,
limited only by the play in the attached flexline hose.
Lock #2:
Lower Arm
Pivot Lock
Upper Arm
Lower Arm
Lock #3:
Head
Tilt/Swing
Lock
Thermal
Head
