5.4 Setting Up an Internet Connection with a Static
IP Address
Procedures:

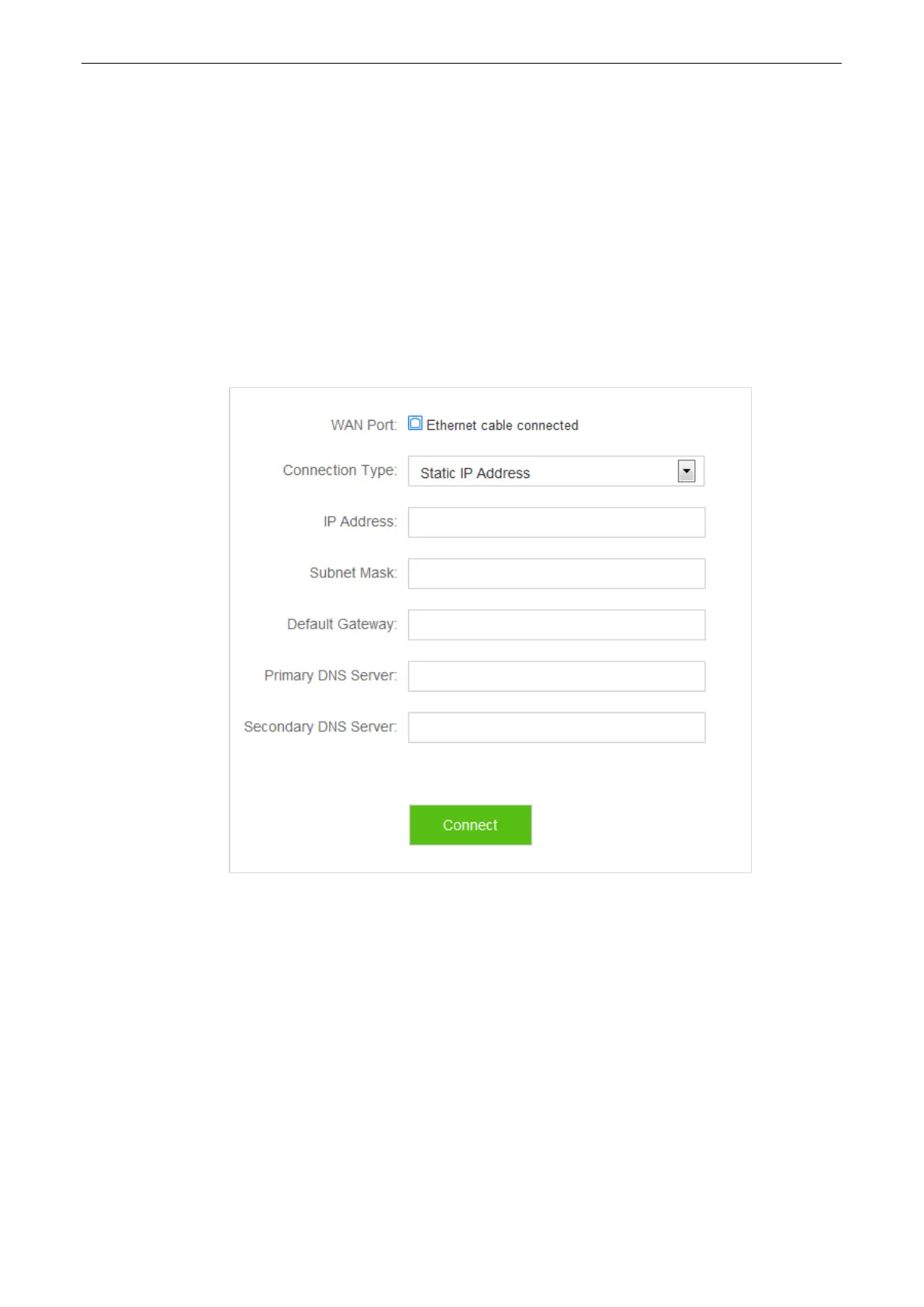

1. To access the configuration page, click Internet Settings.
2. Connection Type: Choose Static IP Address.
3. IP Address, Subnet Mask, Default Gateway and Primary/Secondary DNS Server: Enter the related
information provided by your ISP. Assume that the IP address in this example is 192.168.20.1, subnet
mask 255.255.255.0, default gateway and primary DNS server 192.168.20.100.
4. Click Connect.
—End
Verification
If the Connected. You can access the internet now. message appears after a while, you can access the internet
through the router in a wired or wireless manner.
