9.1.2 Example
Application Scenario
Michael bought an AC5 for network. He needs to access the resources on his computer’s FTP server at home.
Solution
The PPTP server function of AC5 can address this requirement.
Set PPTP Server function on the router. He can access to resources on the computer’s FTP server by VPN
dialing up on business trip. Assume that the IP address of the FTP server is 192.168.0.104:21, and the WAN IP
address of the router is 113.88.112.220. After the PPTP server function of the router is enabled, the WAN IP
address becomes the address of the PPTP server.
Procedures:

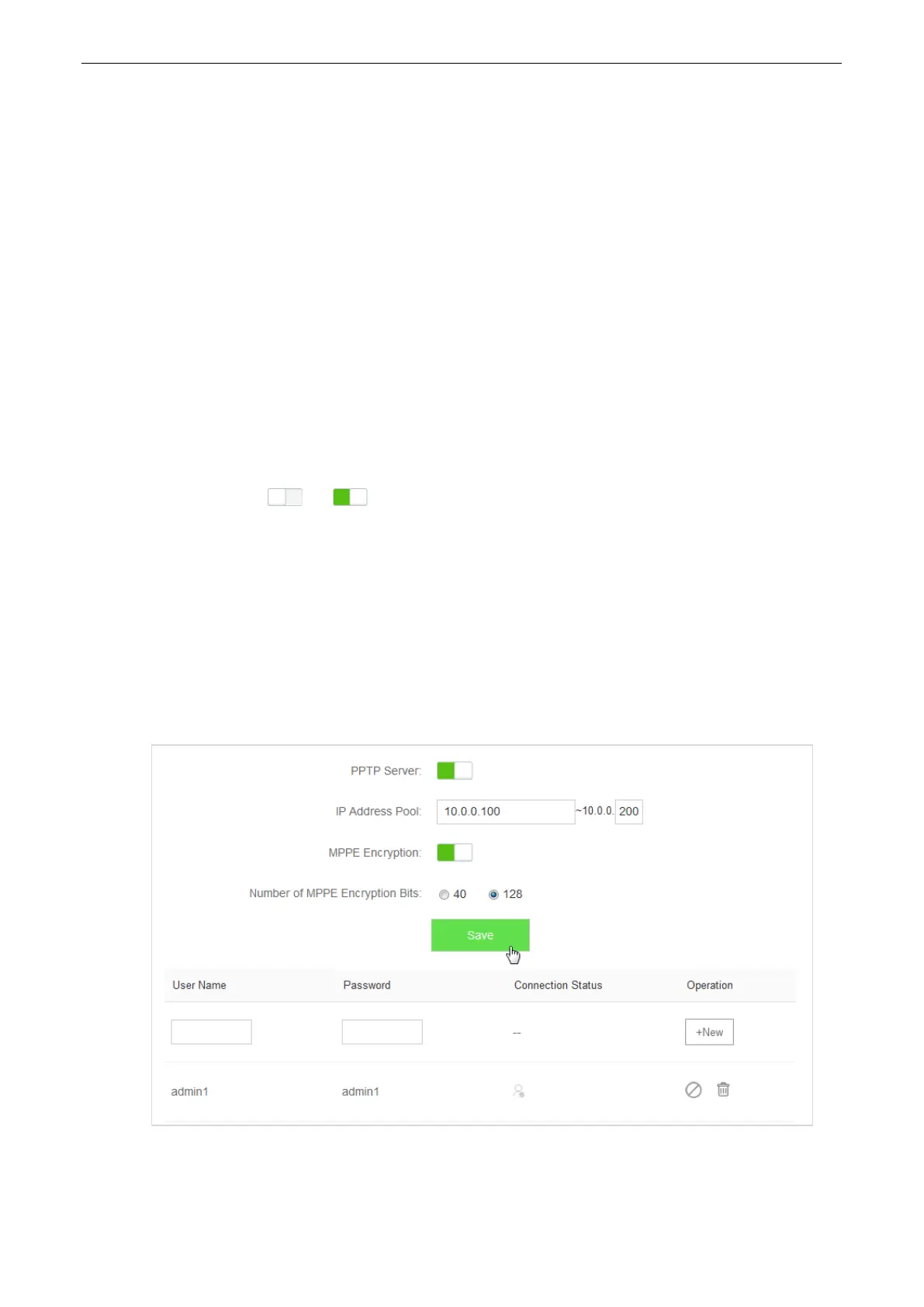

1. To access the configuration page, choose VPN > PPTP Server.
2. PPTP Server: set to .
3. IP Address Pool: Set the range of IP addresses that the PPTP server assigns to devices. You are
recommended to keep default settings.
4. MPPE Encryption: Enable MPPE encryption, and set the number of MPPE encryption bits, which is 128
in this example.
5. User Name, Password: Set user names and passwords that devices use for VPN dialing up, both of
which are admin1 in this example.
6. Click +New.
7. Click Save.
—End

Tenda AC5 Specifications

General

Antennas quantity	4
Antenna gain level (max)	5 dBi
Certification	CE/FCC/RoHS
Built-in processor	Yes
Processor frequency	1000 MHz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
VPN support	L2TP/PPTP/IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
SIM card slot	No
Ethernet LAN (RJ-45) ports	3
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN
Security algorithms	WPA-PSK, WPA2-PSK, WPS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
