65

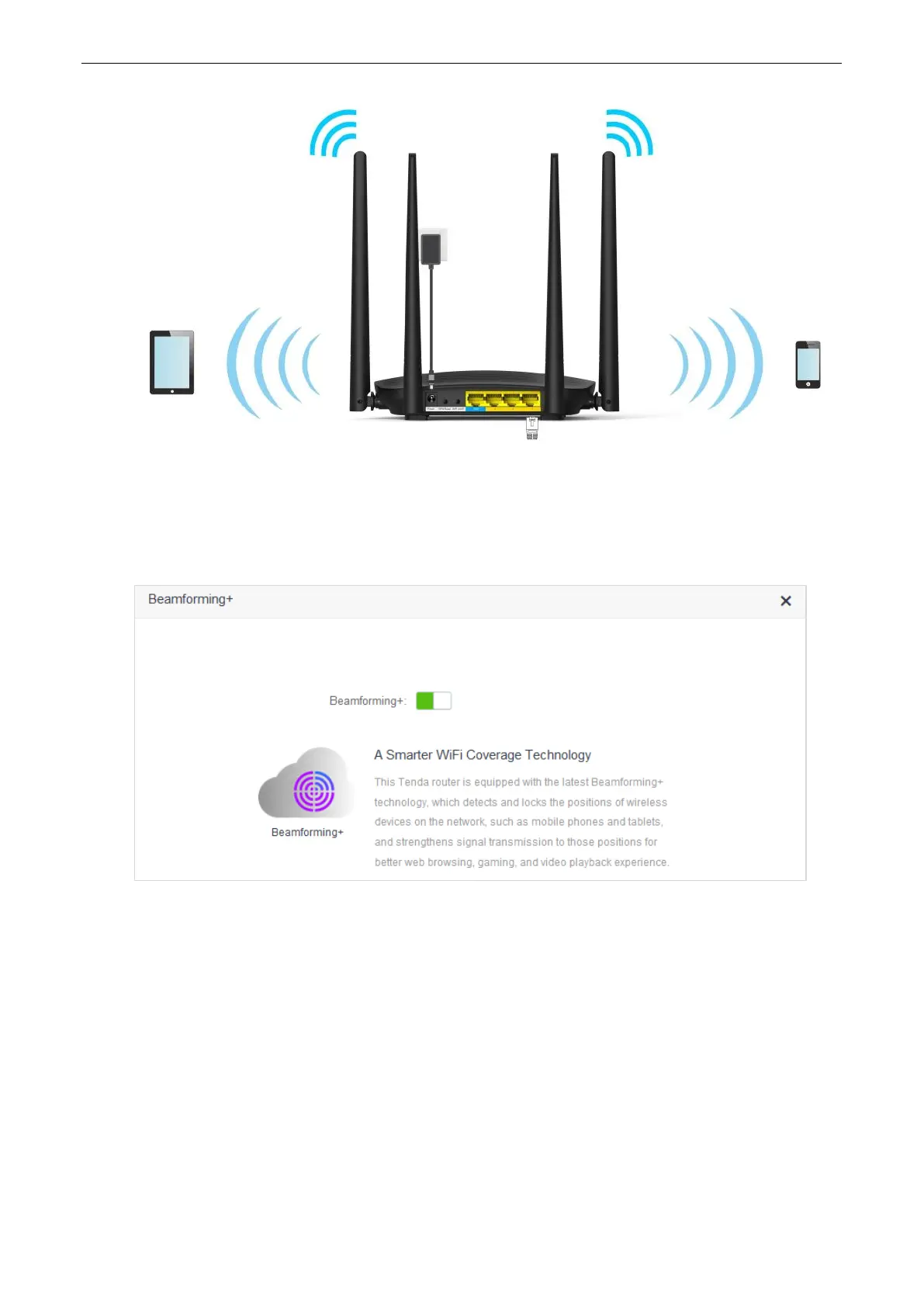

The following figure shows the wireless transmission when Beamforming+ is enabled.
6.6.2 Setting Beamforming+
To access the configuration page, click WiFi Settings > Beamforming+.
By default, the Beamforming+ function is enabled. It is recommended to retain default settings.
6.7 AP Mode
6.7.1 Overview
In the AP mode, the router functions as a wireless access point (AP), and WAN port of the router functions as a
LAN port. Usually, in the AP mode, when the router connects to the upstream router using an Ethernet cable, the
router extends the wireless network coverage of the upstream router, or transforms the wired signals to wireless
ones.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda AC5 and is the answer not in the manual?

Tenda AC5 Specifications

General IconGeneral
Antennas quantity4
Antenna gain level (max)5 dBi
CertificationCE/FCC/RoHS
Built-in processorYes
Processor frequency1000 MHz
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1167 Mbit/s
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
VPN supportL2TP/PPTP/IPSec
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
SIM card slotNo
Ethernet LAN (RJ-45) ports3
Output current1 A
Output voltage9 V
AC input voltage100 - 240 V
Power source typeDC
AC input frequency50 - 60 Hz
Product typeTabletop router
Product colorBlack
LED indicatorsLAN, System, WAN, WLAN
Security algorithmsWPA-PSK, WPA2-PSK, WPS
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Cables includedLAN (RJ-45)
Harmonized System (HS) code85176990
