POWER TRAIN
4157082 First Edition 5-7
5
Disassembly and Assembly

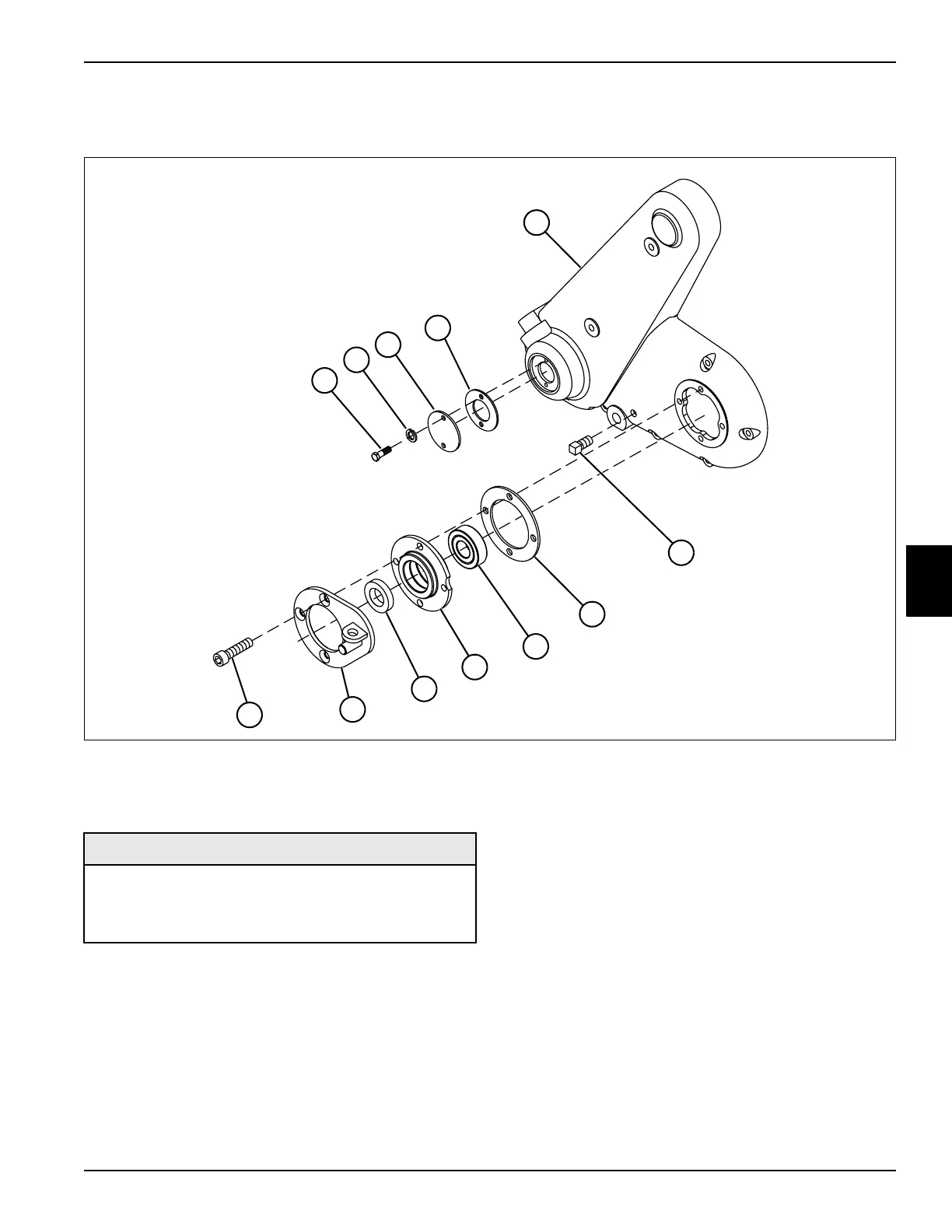

See Figure 5-10.
Figure 5-10
Assembly Notes
• Apply Loctite
®
Primer to the front surface of the
bearing housing (9) and the rear surface of the brake
mounting bracket (11).
Apply a 1/4 inch (6 mm) bead of Loctite
®
518 Gasket
Eliminator to the bearing housing mating surface.
• Apply Loctite
®
242 (Blue) Thread Sealant to the
threads of the screws (1).
• Apply Loctite
®
242 (Blue) Thread Sealant to the
threads of the socket-head screws (12).
• Replace gaskets (4 and 7).
• Install a new oil seal (10).
1Screw (2)
2 Lock Washer (2)
3Cover
4Gasket
5Chain Cover
6 Square-Head Pipe Plug
7Gasket
8 Bearing
9 Bearing Housing
10 Oil Seal
11 Brake Mounting Bracket
(Left)
12 Socket-Head Screw (4)
TN0043
3
4
5
2
1
6
7
8
9
10
11
12
Required Materials
•Loctite
®
Primer
•Loctite
®
518 Gasket Eliminator
•Loctite
®
242
(Blue) Thread Sealant
To Next Page
