Toro 03606A Service Manual

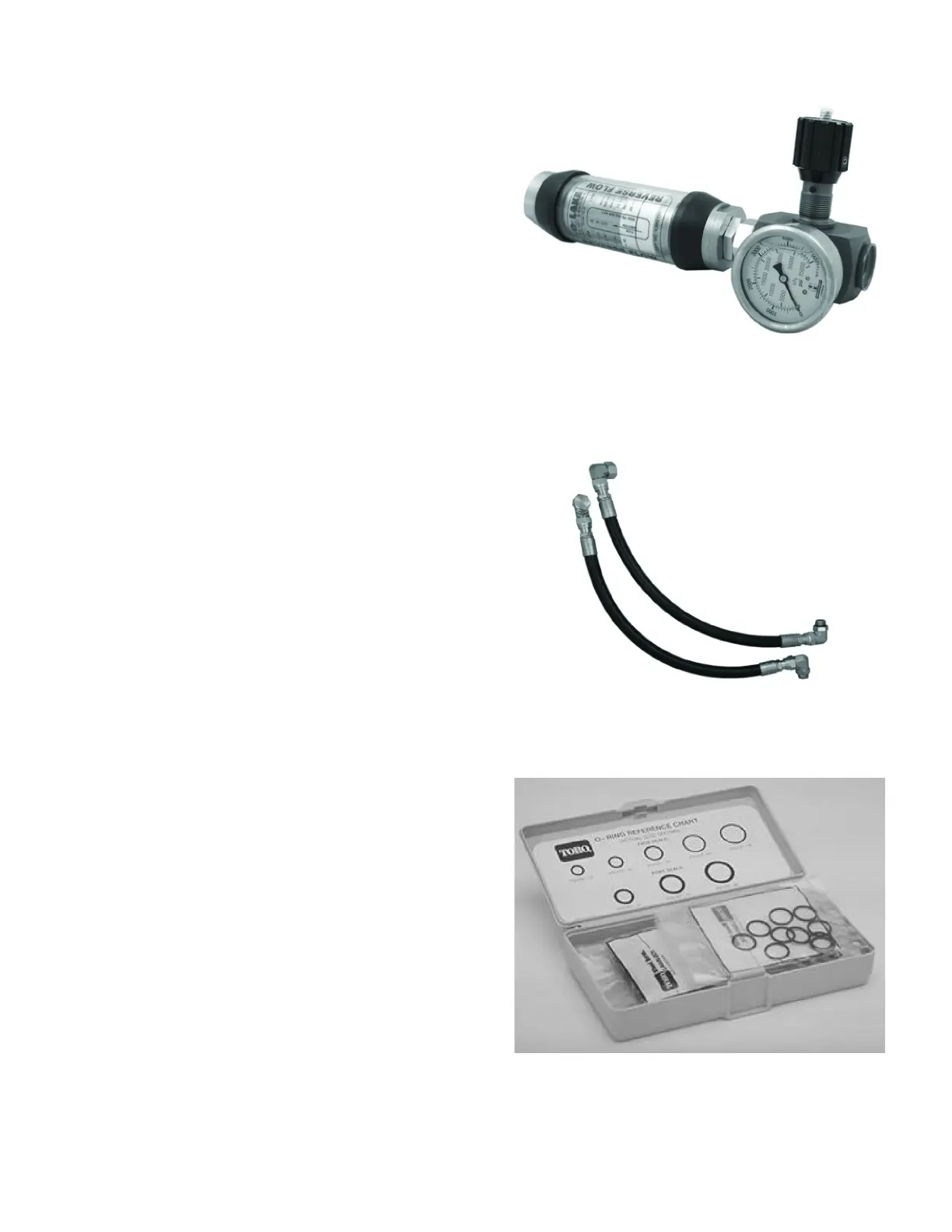

40GPMHydraulicTester(PressureandFlow)
ToroPartNo.AT40002
Usethistestertotestthehydrauliccircuitsandcomponents
forowandpressurecapacitiesasrecommendedinT esting
theHydraulicSystem(page6–56).Thistesterincludesthe
following:
LoadValve–Turnthevalvetorestricttheowtocreatea
simulatedworkingloadinthecircuit.
PressureGauge–Aglycerinelledpressuregauge0to
35,000kPa(0to5,000psi)toprovideoperatingcircuit
pressure.
FlowMeter–Thismetermeasurestheactualuidowinthe
operatingcircuitwithagaugeratedat20to150L/minute(4
to40gallons/minute).
Note:Thistesterdoesnotincludethehoses;referto
HydraulicHoseKit(page6–45).
HydraulicHoseKit
ToroPartNo.TOR6007
Thiskitincludesthettingsandhosesthatareusedto
connectthe40GPMhydraulictester(AT40002)orhigh
owhydrauliclterkit(TOR6011)tothemachinehydraulic
tractionsystemcomponents.
O-RingKit
ToroPartNo.117-2727
ThiskitincludesO-ringsinavarietyofsizesfortheface
sealandportsealhydraulicconnections.Tohelpprevent
ahydraulicleak,replacetheO-ringswhenyouopenthe
hydraulicconnection.
Reelmaster
®
5410/5510/5610Series
Page6–45
HydraulicSystem:SpecialTools
15216SLRevC
