TestingtheMowCircuit–ReliefValve(RV1)and(RV2)Pressure

(5610-D)

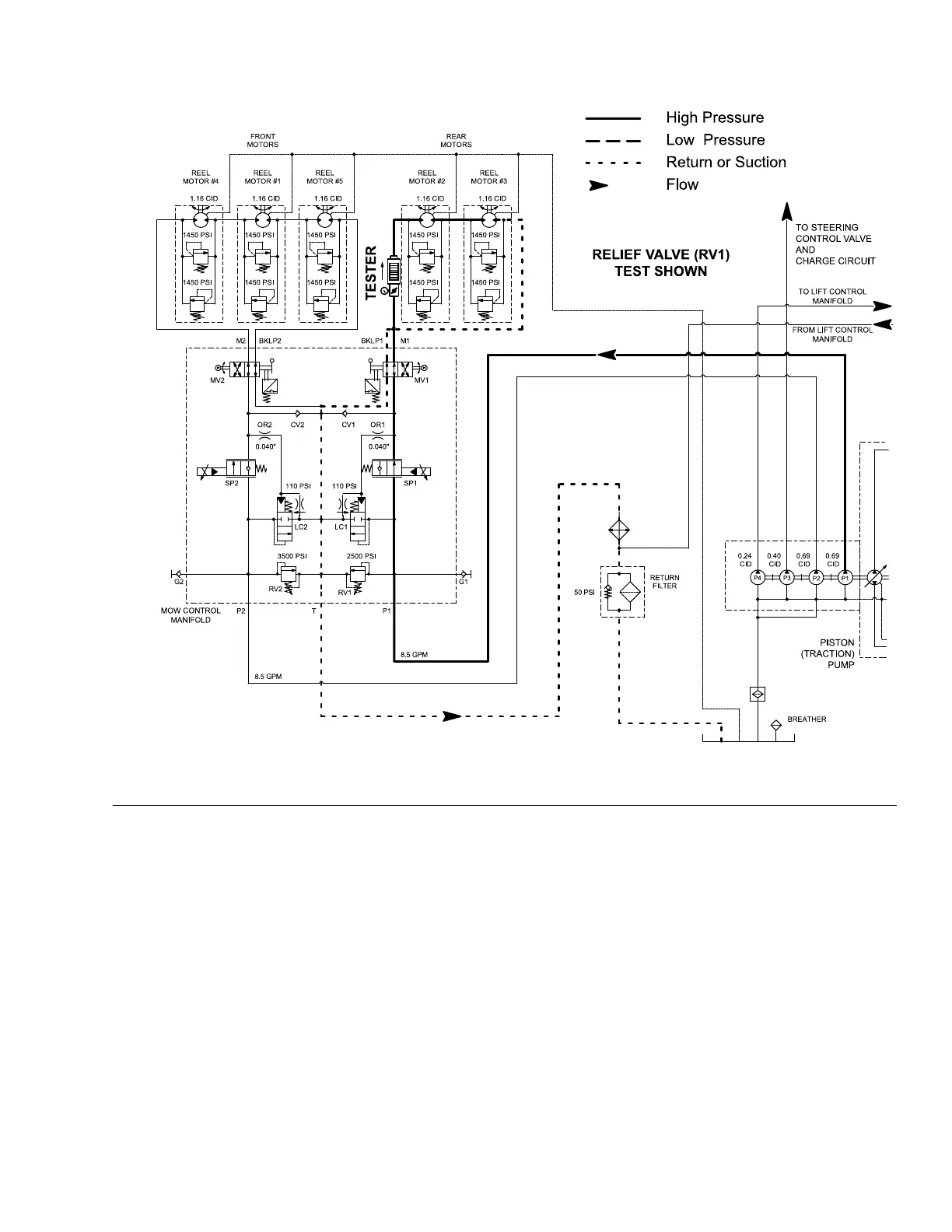

g216149

Figure128

Testtheperformanceofthemowcontrolmanifoldreliefvalve(RV1)and(RV2)to

ensurethatthemaximumamountofuidisavailabletothecuttingreelmotors

uptothesetreliefpressure.Thistestalsoensuresthatpump(P1)and(P2)are

capableofgeneratingenoughpressuretoopenproperlyfunctioningreliefvalves.

Note:Thefrontcuttingreelcircuitissuppliedbypump(P2)andprotectedby

areliefvalve(RV2)inthemowcontrolmanifold.Therearcuttingreelcircuit

issuppliedbypump(P1)andisprotectedbyreliefvalve(RV1);refertothe

HydraulicFlowDiagrams(5610-D)(page6–32).

SpecialEquipmentRequired:Flowmeterwithpressuregaugethathasatleasta

45L/minute(12gallons/minute)capacity.

Reelmaster

5410/5510/5610Series

Page6–123

HydraulicSystem:TestingtheHydraulicSystem

15216SLRevC
