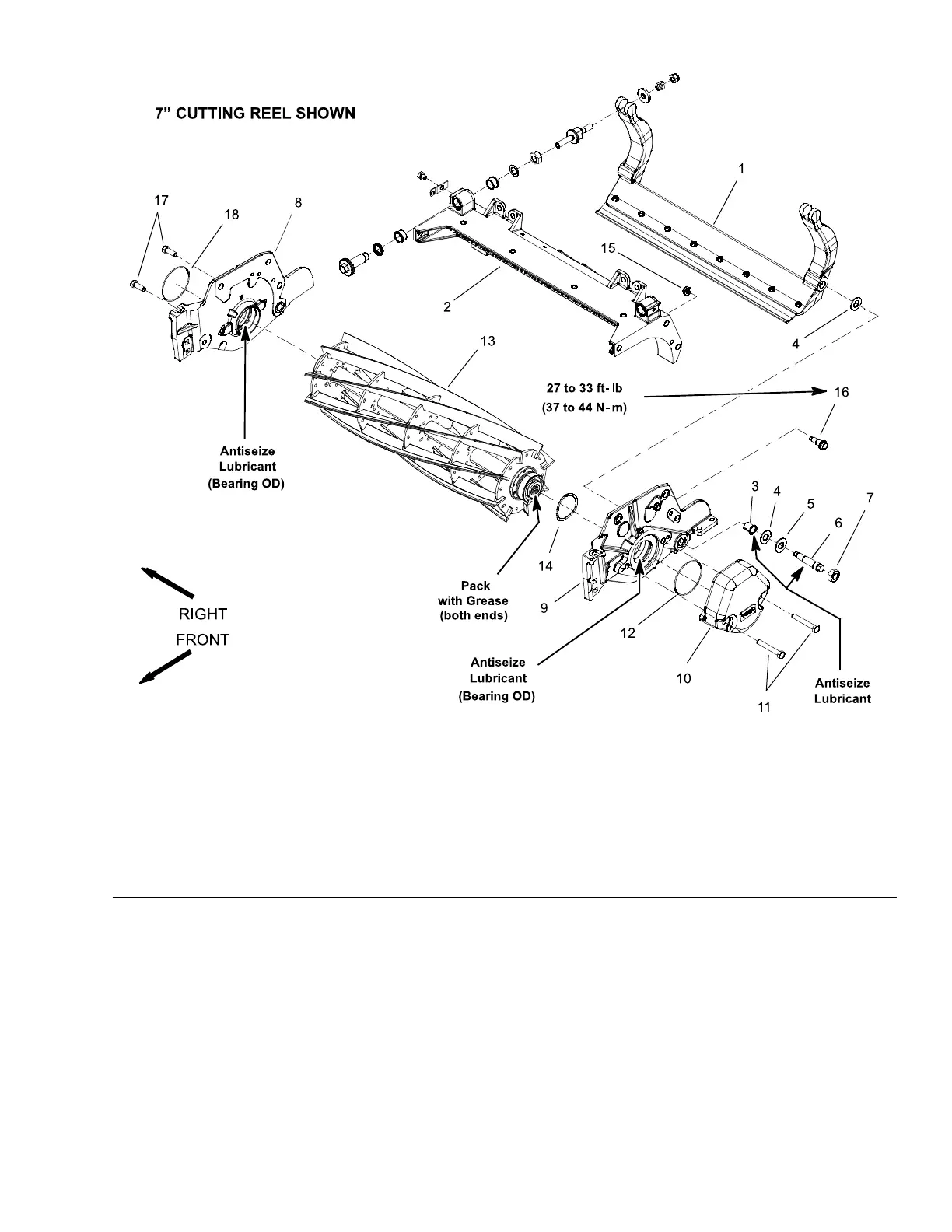

ReelAssembly(cuttingunitswithaluminumsideplates)
g252639
Figure342
1.Bedbarassembly
7.Locknut(2each)13.Cuttingreelassembly
2.Cuttingunitframe
8.RHsideplate14.
3.Flangebushing(2each)
9.LHsideplate15.Wirespring
4.Plasticwasher(4each)
10.Weight
16.Flangenut(3persideplate)
5.Metalwasher(2each)11.Capscrew(2each)17.Capscrew(2each)
6.Bedbarpivotbolt(2each)12.O-ring18.O-ring
Note:Thissectionprovidestheprocedureforremovingandinstallingthecutting
reelassembly(cuttingreel,splineinserts,greasesealsandbearings)fromthe
cuttingunit.
Note:RefertoReelAssemblyService(cuttingunitswithaluminumsideplates
laterinthissectionforinformationonreplacingcuttingreelsealsandbearings.
Note:RemovalofthecuttingreelrequiresremovaloftheLHsideplatefrom
thecuttingunitframe.TheRHsideplatedoesnothavetoberemovedfrom
theframe.
Reelmaster
®
5410/5510/5610Series
Page9–35
CuttingUnit:ServiceandRepairs
15216SLRevC
