ReliefValve(R1)and(R2)PressureTest(Cutting(Mow)Circuit)

(5410/5410-G/5410-D/5510/5510-G/5510-D/5610)

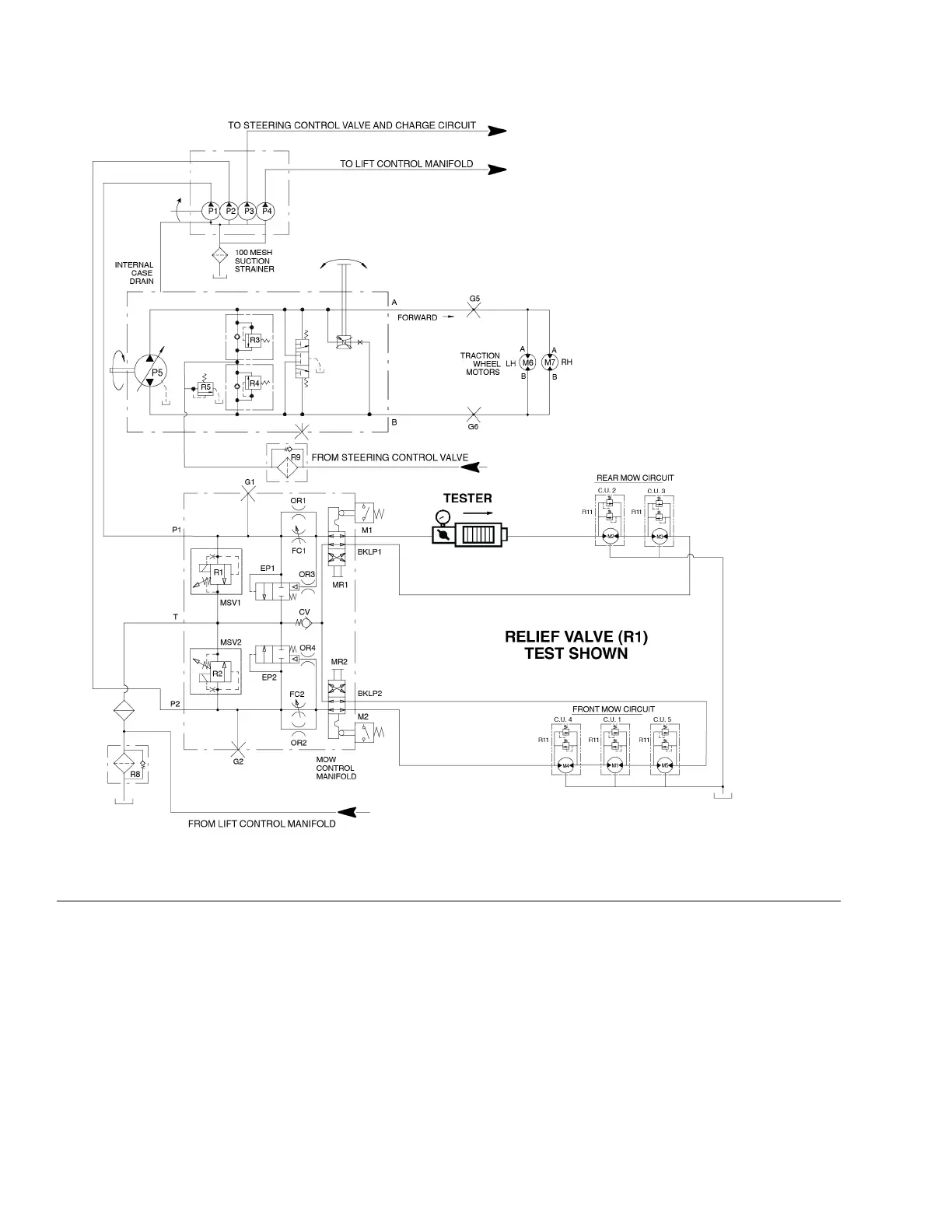

g230023

Figure93

Thereliefvalve(R1)and(R2)pressuretestshouldbeperformedtoensurethat

thecuttingunitcircuitreliefpressuresarecorrect.

Note:Thefrontcuttingunitcircuitisprotectedbyreliefvalve(R2).Therear

cuttingunitcircuitisprotectedbyreliefvalve(R1);refertoHydraulicFlow

Diagrams(5410/5410-D/5510/5510-D/5610)(page6–20).

TestProcedure

1.Ensurethatthehydraulicuidisatnormaloperatingtemperatureby

operatingthemachineunderloadforapproximately10minutes.

HydraulicSystem:TestingtheHydraulicSystem

Page6–74

Reelmaster

5410/5510/5610Series

15216SLRevC
