Adjustments
Adjusting
the
Throttle
Control

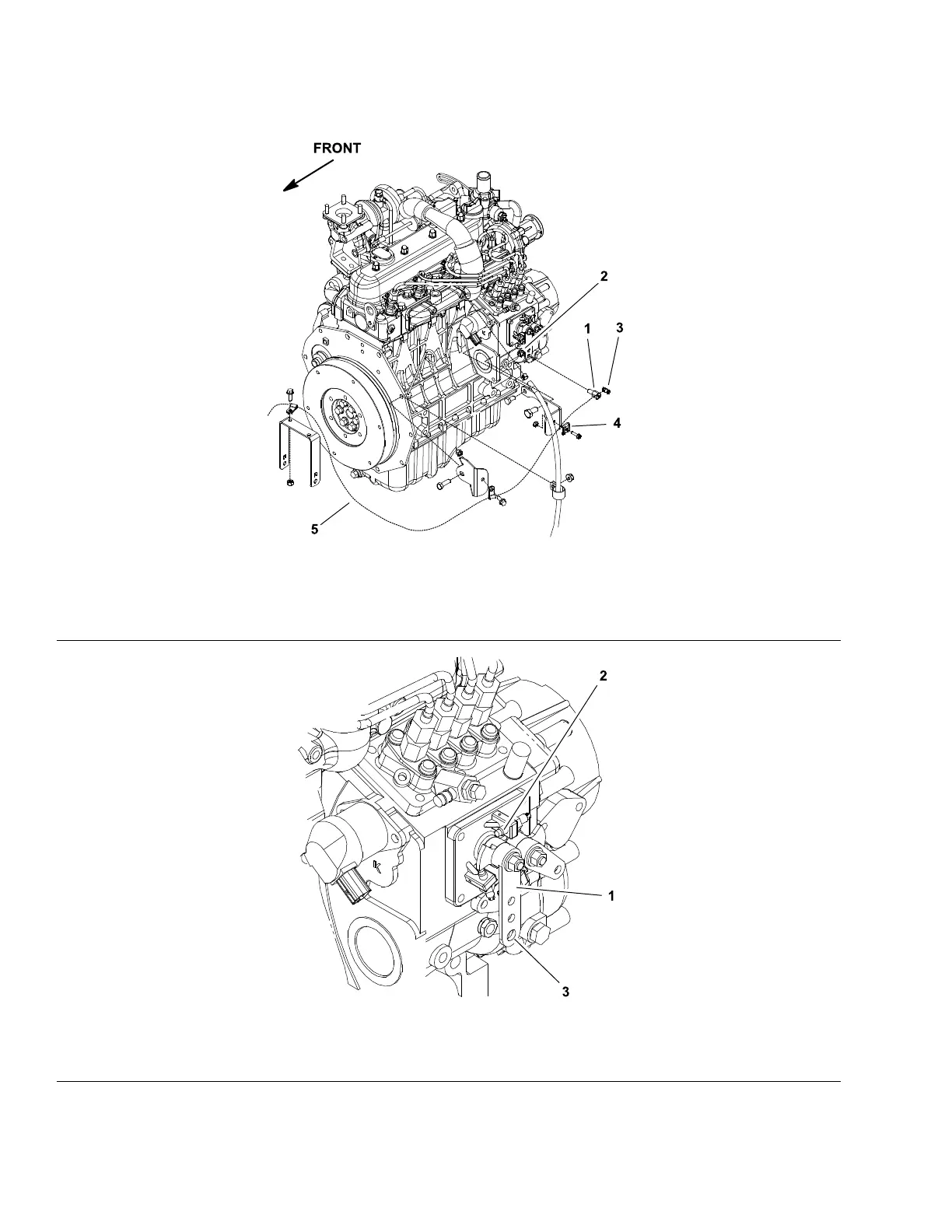

g229062
Figure
9
1.
Throttle
cable
swivel
3.
Cable
stop
5.
Throttle
cable
2.
Swivel
locknut
4.
Throttle
cable
clamp
g229070
Figure
10
1.
Speed
control
lever
2.
High
speed
screw
3.
Cable
swivel
position
Proper
throttle
operation
is
dependent
upon
proper
adjustment
of
throttle
control.
Ensure
that
the
throttle
control
is
operating
properly
.
Kubota
Diesel
Engine:
Adjustments
Page
3–6
Reelmaster
®
5410/5510/5610
Series
15216SL
Rev
C
39
