RearWheelBearings(Machineswith2-WheelDrive)

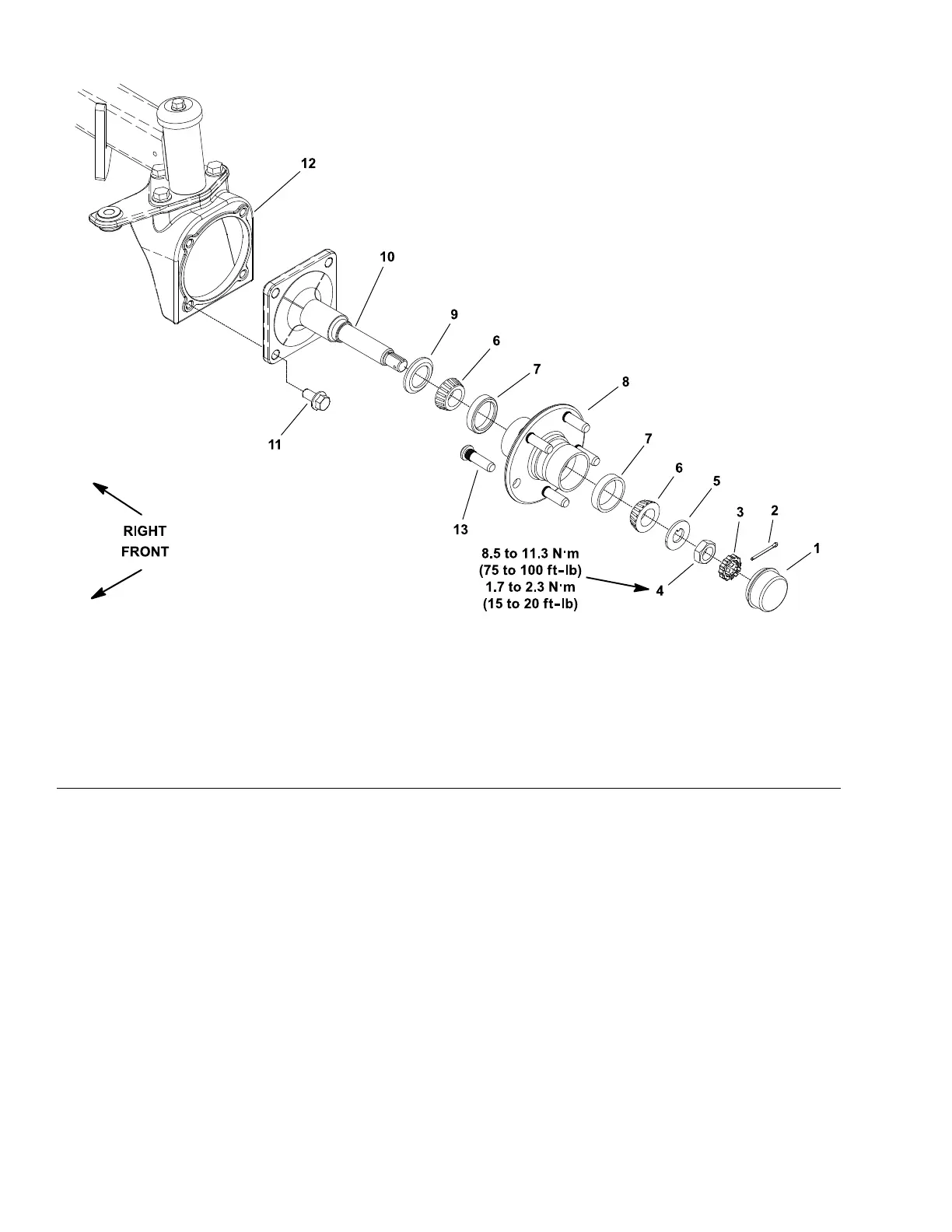

g228650

Figure297

1.Dustcap6.Bearingcone

11.Flange-headscrew(4each)

2.Cotterpin

7.Bearingcup12.Housing

3.Retainer8.Wheelhub

13.Wheelstud(5each)

4.Jamnut

9.Seal

5.T abwasher

10.Spindle

DisassemblingtheRearWheelBearings(Machineswith2-WheelDrive)

1.Chockfrontwheelstopreventmachinefromshifting.

2.Removerearwheel;refertoWheels(page8–5).Ensuretosupportmachine

withjackstands.

3.Removethedustcapfromthewheelhub.

4.Removethecotterpin,retainer,jamnut,andtabwasher.Slidethewheel

hubfromthespindleshaft.

5.Pullthesealoutofthewheelhub.Discardseal.

6.Removethebearingconesfrombothsidesofthewheelhub.Cleanthe

bearingsinsolvent.Ensurethatthebearingsareingoodoperatingcondition.

Cleantheinsideofthewheelhub.Checkthebearingcupsforwear,pittingor

otherdamage.Replacewornordamagedparts.

7.Cleanspindlesurfaceandcheckforwearordamage.Replacespindle

ifnecessary.

Chassis:ServiceandRepairs

Page8–14

Reelmaster

5410/5510/5610Series

15216SLRevC
