MainInformationScreen(continued)

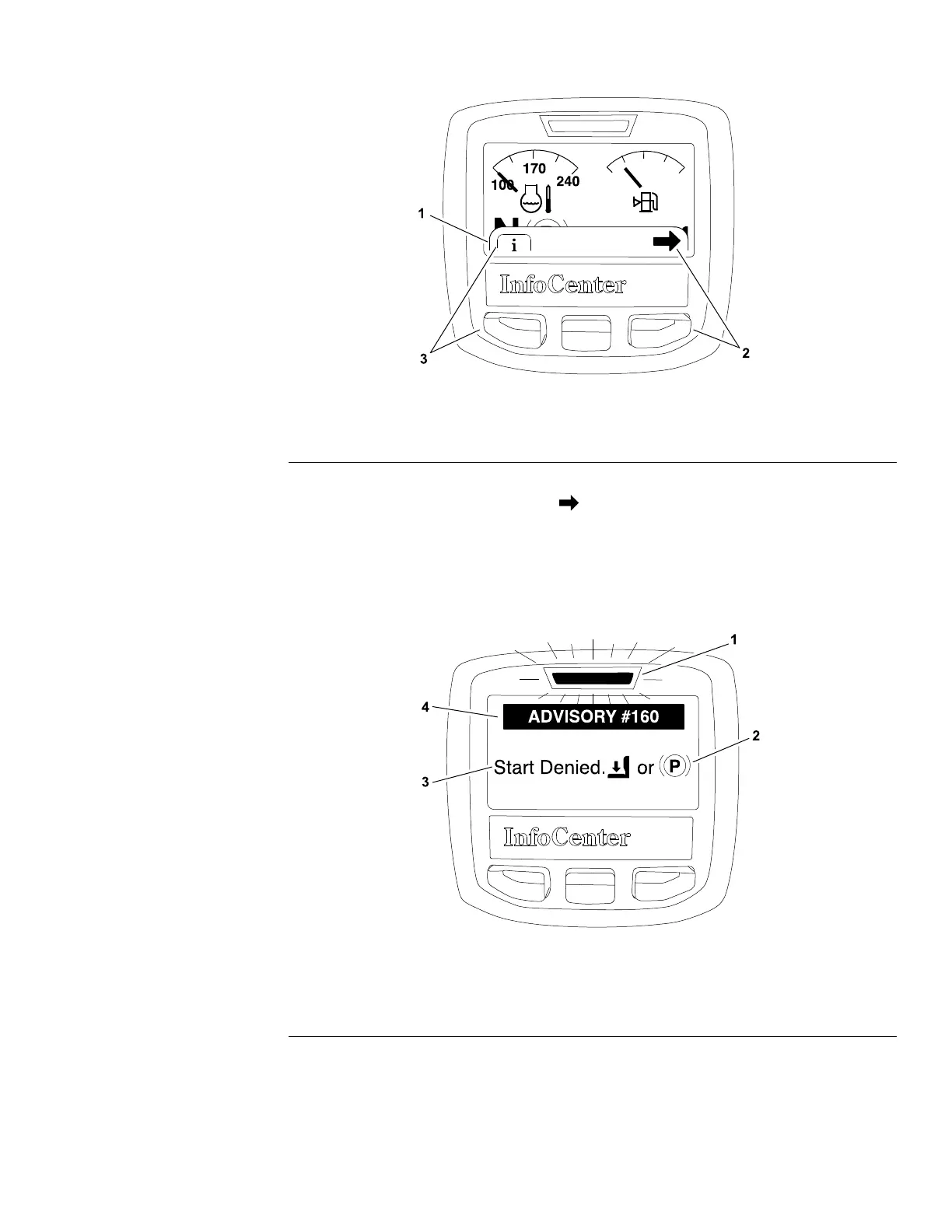

g189676
Figure202
1.Navigationpane
2.Left/rightbutton3.Menu/backbutton
Pressthemenu/backbuttononcetoexposethenavigationpane,thenpressthe
left/rightbutton(asindicatedbythe
inthenavigationpane)totogglebetween
themaininformationscreenandthesplashscreen(tachometer)(Figure202).
Thenavigationpanewillcloseautomaticallyifanotherbuttonisnotpressed
within6seconds.
OperatorAdvisoryScreen
g187150
Figure203
1.Faultindicator3.Advisorydescription
2.Advisoryqualier4.Advisorynumber/code
IftheT oroElectronicController(TEC)inputsarenotinthecorrectpositionto
allowcertainmachineoperations,oraremalfunctioning,thefaultindicatorwill
illuminateandanadvisoryscreenwillappearontheInfoCenterdisplay(Figure
203).Eachadvisoryscreenhas3elements:theadvisorynumber/code,advisory
description,andadvisoryqualier.
Reelmaster
®
5410/5510/5610Series
Page7–13
ElectricalSystem:InfoCenterDisplay
15216SLRevC
