Adjustments

TractionNeutralSwitch

g213687

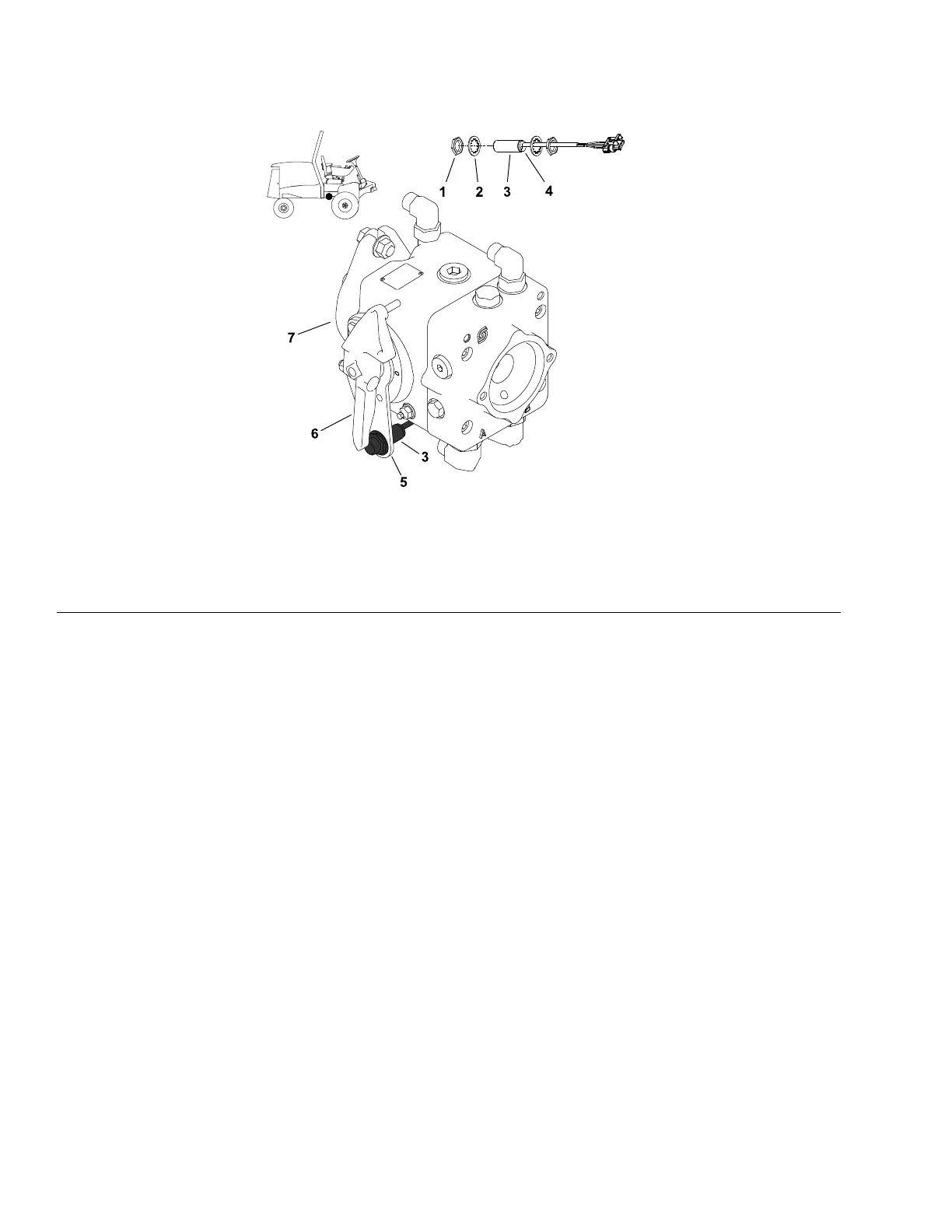

Figure219

1.Jamnut(2each)4.SwitchLEDlocation

7.Tractionpump

2.Lockwasher(2each)

5.Pumpplate

3.Tractionneutralswitch6.Pumplever

Thetractionneutralswitchisanormallyopenproximityswitchthatcloseswhen

thetractionpedalisintheNEUTRALposition.Theswitchmountstoapumpplate

onthetractionpump(Figure219).Thesensingplateforthetractionneutral

switchisthepumpleverthatissecuredtothetractionpump.

ElectricalSystem:Adjustments

Page7–46

Reelmaster

5410/5510/5610Series

15216SLRevC
