Steering
Control
V
alve

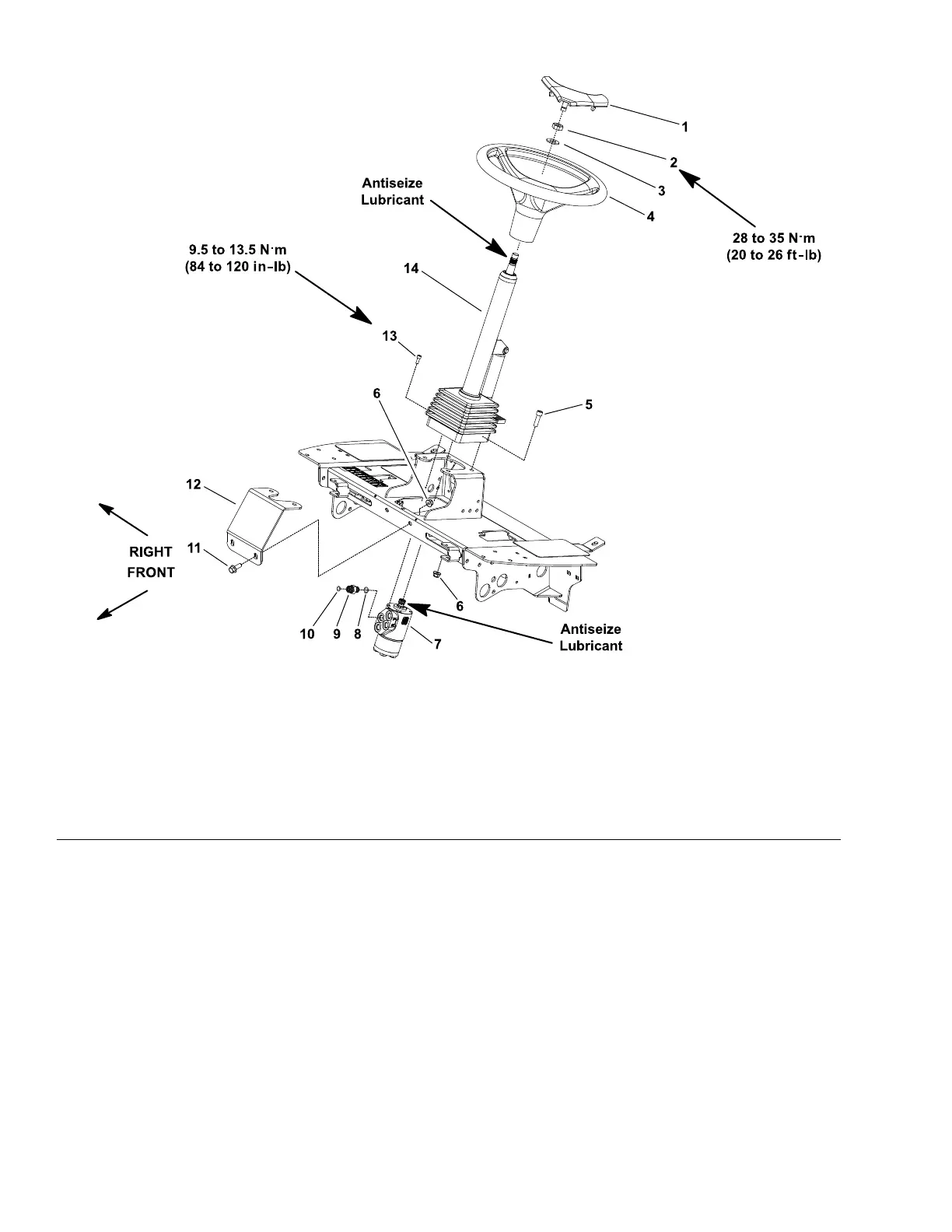

g185938
Figure
184
1.
Steering
wheel
cover
6.
Flange
nut
(6
each)
1
1.
Flange-head
screw
(2
each)
2.
Locknut
7.
Steering
control
valve
12.
Column
brace
3.
Flat
washer
8.
O-ring
(4
each)
13.
Socket-head
screw
(4
each)
4.
Steering
wheel
9.
Straight
hydraulic
tting
(4
each)
14.
Steering
column
assembly
5.
Socket-head
screw
(4
each)
10.
O-ring
(4
each)
Hydraulic
System:
Service
and
Repairs
Page
6–222
Reelmaster
®
5410/5510/5610
Series
15216SL
Rev
C
339
341
