ReplacingtheGroomerDriveBelt

Thegroomerdrivebeltshouldbeinspected/replacedannuallyorafter750hours

ofoperation.

1.Parkthemachineonalevelsurface,lowerthecuttingunitscompletelyto

theground,shutofftheengine,settheparkingbrake,andremovethekey

fromthekeyswitch.

Note:Ifthecuttingunitisequippedwiththepoweredrearrollerbrush,

removaloftherollerbrushcomponentswillbenecessarytoreplacethe

groomerdrivebelt;refertotheRearRollerBrush–Optional(cuttingunits

withpaintedsideplates)(page9–51).

Note:Whenremovingthegroomercover,thegroomerweightdoesnothave

toberemovedfromthecover.

g215600

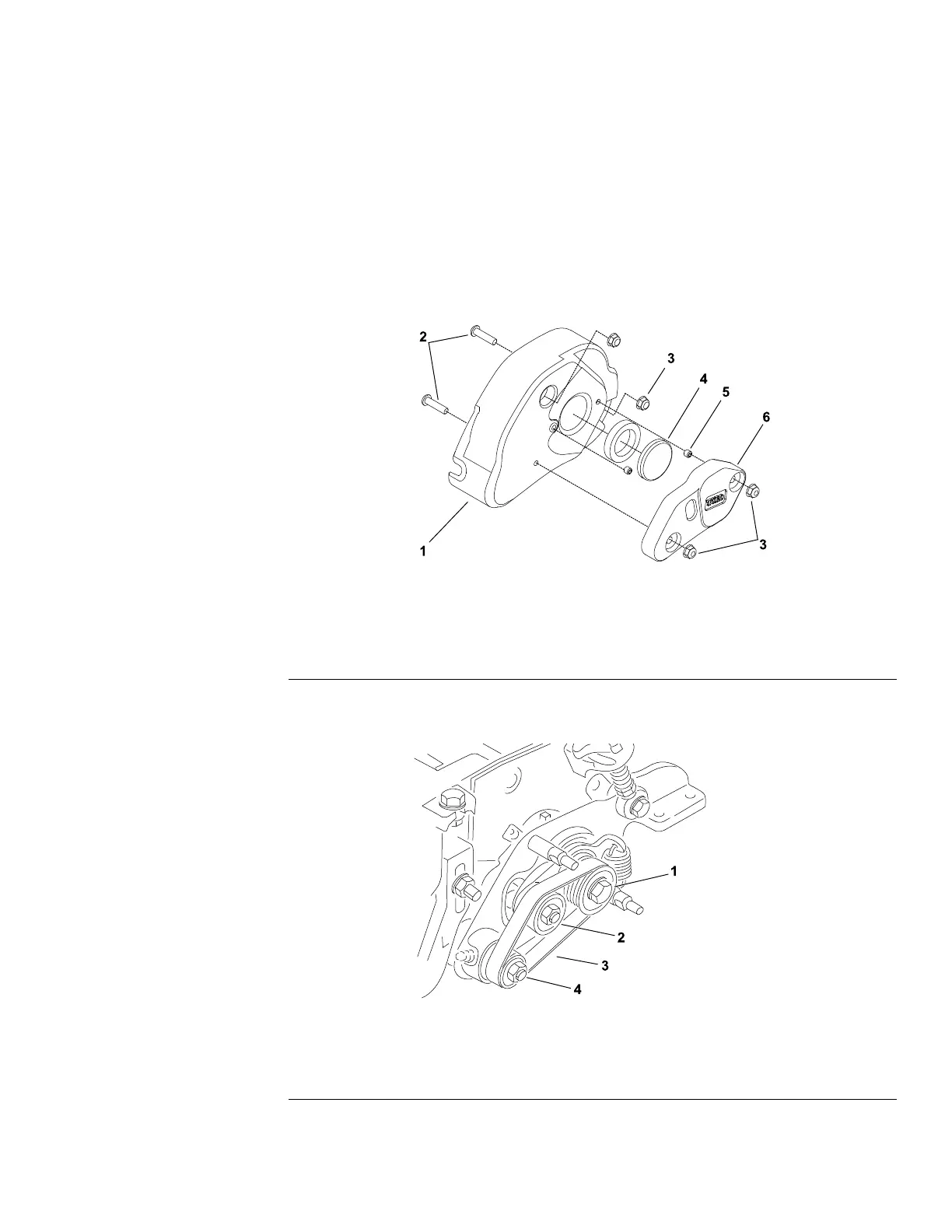

Figure374

1.Groomercover3.Flangenut(4each)5.Setscrew(2each)

2.Socket-headscrew(2

each)

4.Rubbergrommet

6.Groomerweight

2.Removethe2angenutsthatsecurethegroomercover,andremovethe

cover(Figure374).

g215601

Figure375

1.Drivepulley

3.Groomerdrivebelt

2.Idlerpulley4.Drivenpulley

Reelmaster

5410/5510/5610Series

Page10–7

BeltDrivenGroomer(Optional):ServiceandRepairs

15216SLRevC
