RaisingtheRearoftheMachine

g186591

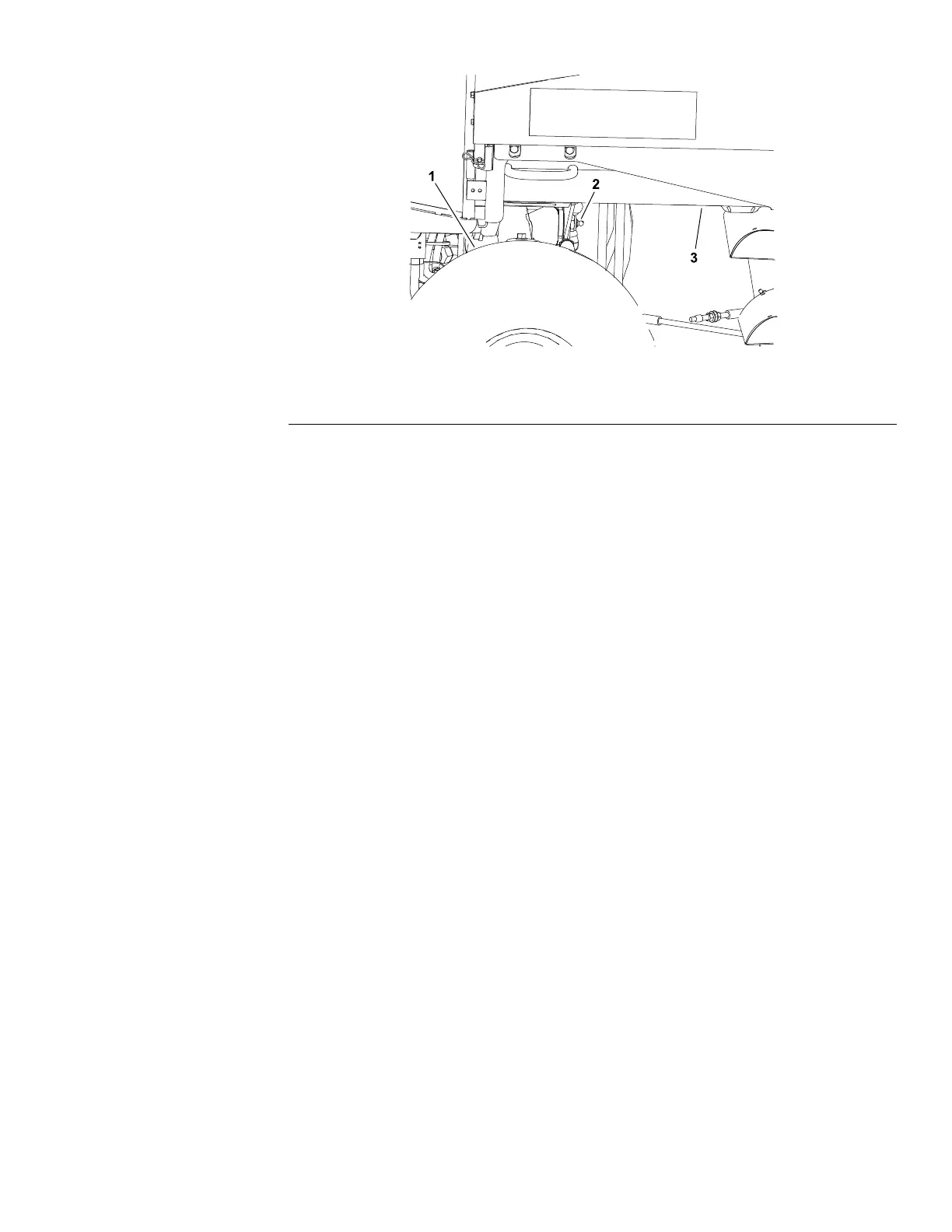

Figure3

1.Rearwheel2.Rearaxlepivotbracket3.Jackstandlocation

1.Settheparkingbrakeandblockthe2frontwheelswithchockstoprevent

themachinefrommoving.

2.Positionthejacksecurelyatthecenteroftherearaxleundertheaxlepivot

bracket.Lifttherearofthemachineofftheground.

3.Positionthejackstandsundertheframetosupportthemachine(Figure3).

SafetyandInstructionalDecals

Numeroussafetyandinstructiondecalsareafxedtothetractionunitand

cuttingunitsofyourReelmaster.Ifanydecalbecomesillegibleordamaged,

installanewdecal.DecalpartnumbersarelistedinyourPartsCatalog.Order

replacementdecalsfromAuthorizedT oroDistributor.

Reelmaster

5410/5510/5610Series

Page1–7

Safety:SafetyandInstructionalDecals

15216SLRevC
