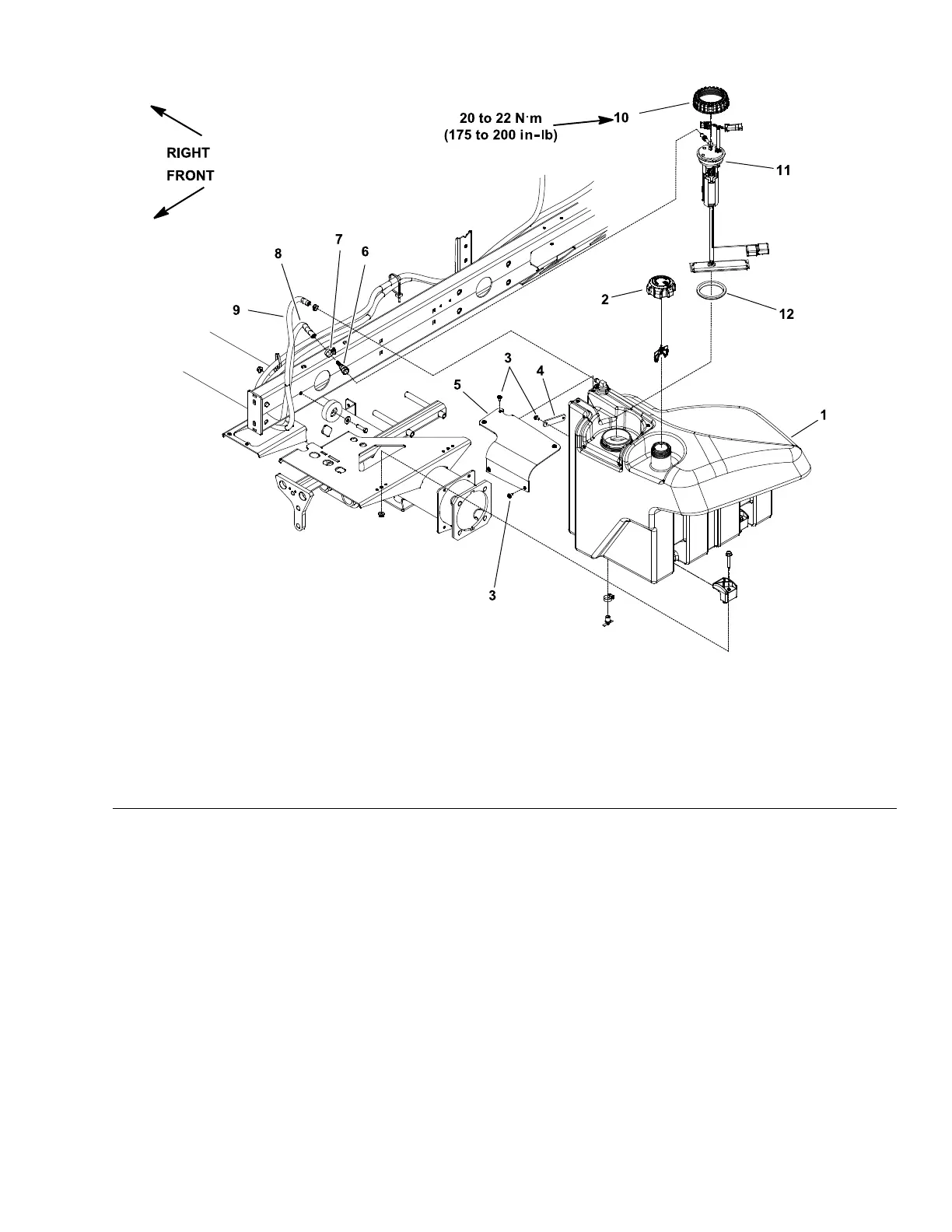

FuelSender(GasolineEngine)
g228841
Figure273
1.Fueltank
5.Sendercover
9.Fuelventhose
2.Fueltankcap
6.Fueltting
10.Fuelpumpcap
3.Screw(7each)
7.Hoseclamp11.Fuelpumpassembly
4.Strap
8.Fuelsupplyhose
12.Gasket
OnamachinewithaKubotagasolineengine,thefuelsenderisacomponent
ofthefuelpumpassemblywhichissecuredtothetopofthefueltank.The
resistanceofthefuelsenderincreasesasthefuellevelinthefueltank
decreases.TheToroElectronicController(TEC)usesthefuelsenderasaninput
togenerateanoutputfortheInfoCenterfuelgauge.
Reelmaster
®
5410/5510/5610Series
Page7–105
ElectricalSystem:TestingtheElectricalComponents
15216SLRevC
