FaultsScreen

MachineFaults

g189674

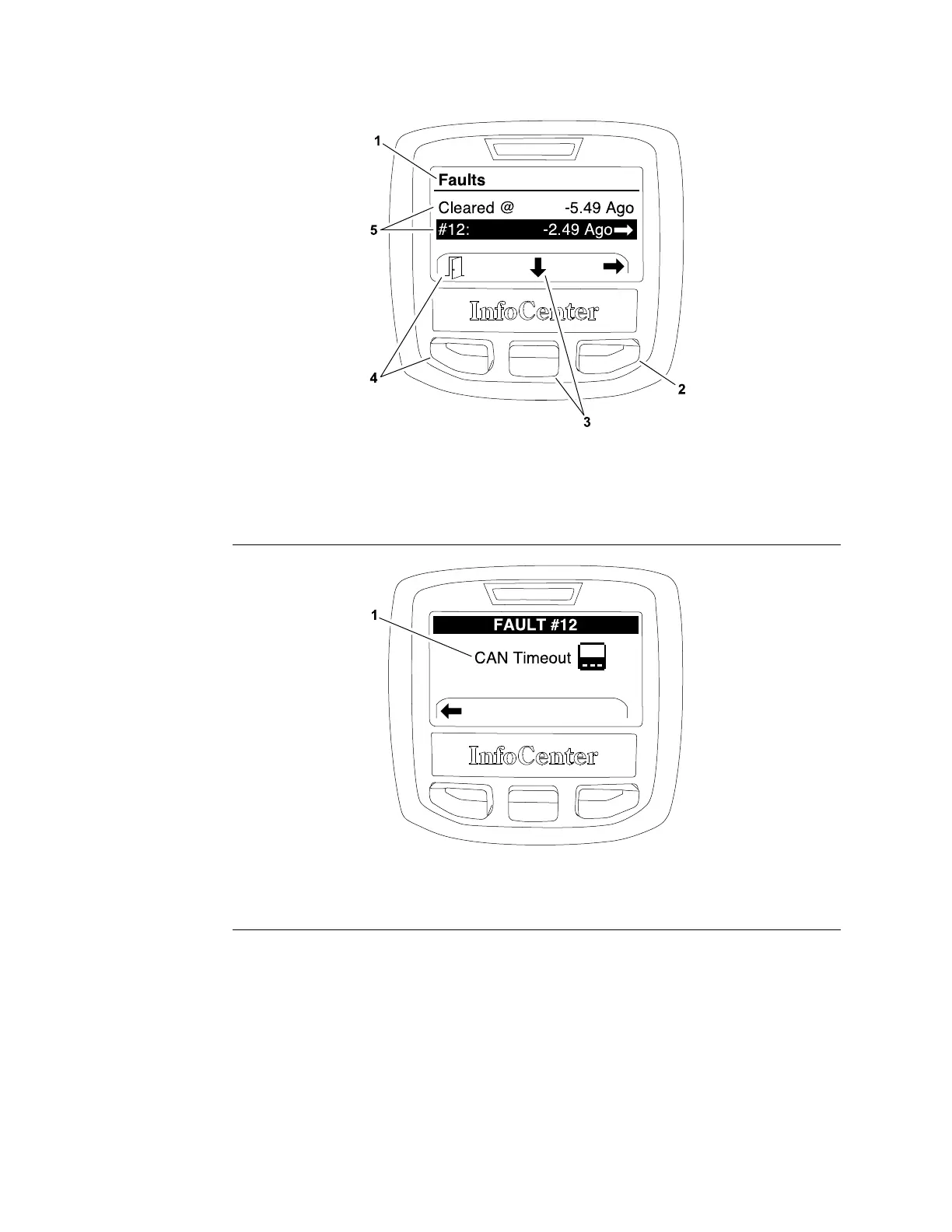

Figure206

1.Faultmenu

4.Menu/backbutton

2.Left/rightbutton

5.Faultitems

3.Downbutton

g189673

Figure207

1.Faultdescription

Thefaultsscreen(Figure206andFigure207)willlistallmachineelectricalfaults

thathaveoccurredsincethefaultswerelastclearedfromtheInfoCenter.The

faultswillbeidentiedbyanumbercodeandwhenthefaultoccurred.Thefaults

thatmightoccuronthemachinearelistedintheMachineFaults(page7–32).

Ifamachinefaultoccursduringoperation,theInfoCenterfaultindicatorwillblink

tonotifytheoperator,andmachinefunctionalitymaybeaffectedduetothefault.

Toregainfullmachinefunctionality:

1.Disengagethecuttingunits,releasethetractionpedal.

2.TurnthekeyswitchOFFandallowallmachinefunctionstostop.

ElectricalSystem:InfoCenterDisplay

Page7–16

Reelmaster

5410/5510/5610Series

15216SLRevC
