ServiceandRepairs

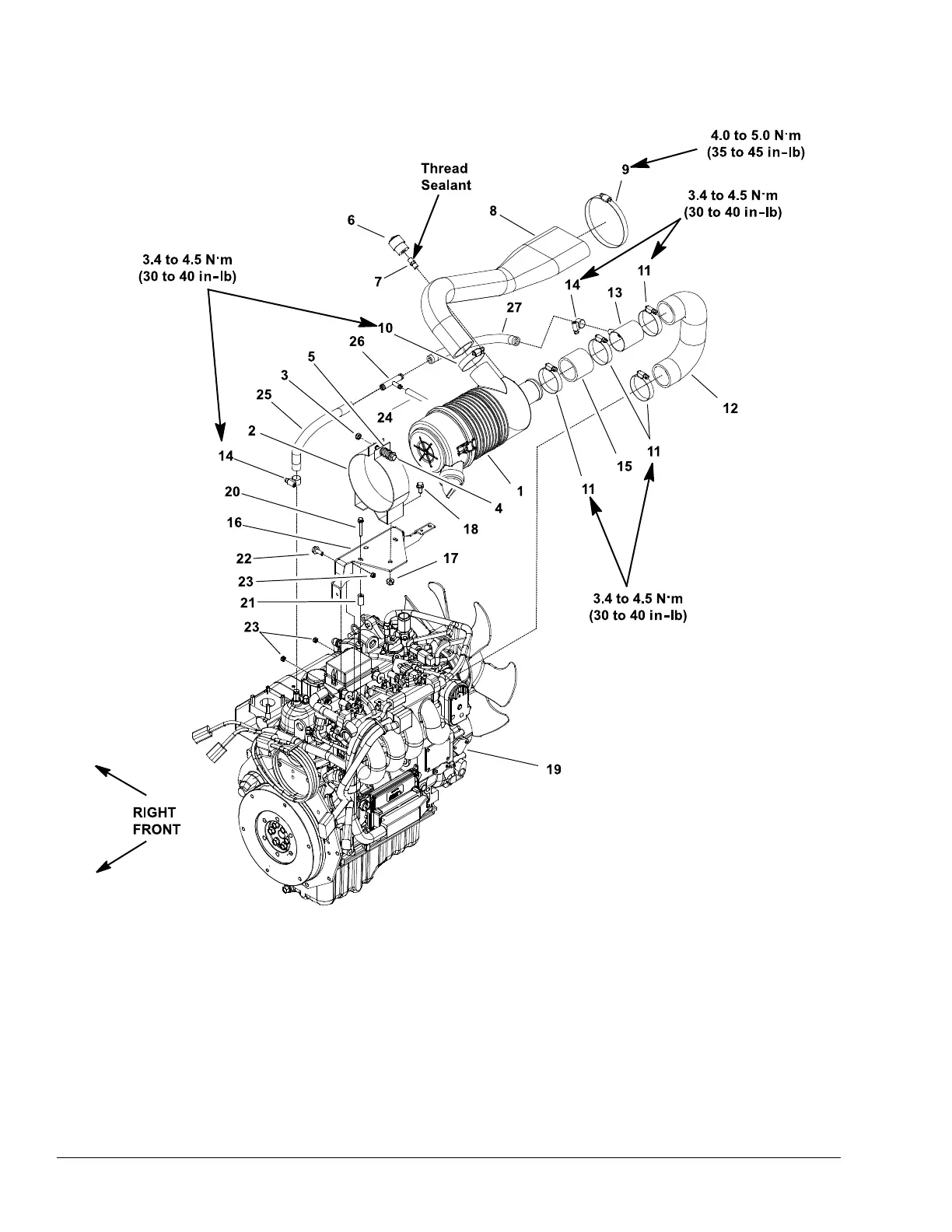

AirCleanerAssembly

g229320

Figure43

1.Aircleanerassembly10.Hoseclamp19.Engineassembly

2.Aircleanermountingband

11.Hoseclamp(4each)20.Flange-headscrew(2each)

3.Hexnut12.Aircleanerhose

21.Spacer(2each)

4.Shoulderbolt

13.Vent

22.Flange-headscrew(2each)

5.Spring14.Hoseclamp(2each)23.Locknut(4each)

6.Serviceindicator

15.Aircleanerhose

24.Hose(toEVAPcontrolvalve)

7.Adapter16.Aircleanerbracket25.Hose

8.Aircleanerinlethose

17.Flangenut(2each)26.T eetting

9.Hoseclamp

18.Flange-headscrew(2each)

27.Hose

KubotaGasolineEngine:ServiceandRepairs

Page5–6

Reelmaster

5410/5510/5610Series

15216SLRevC
