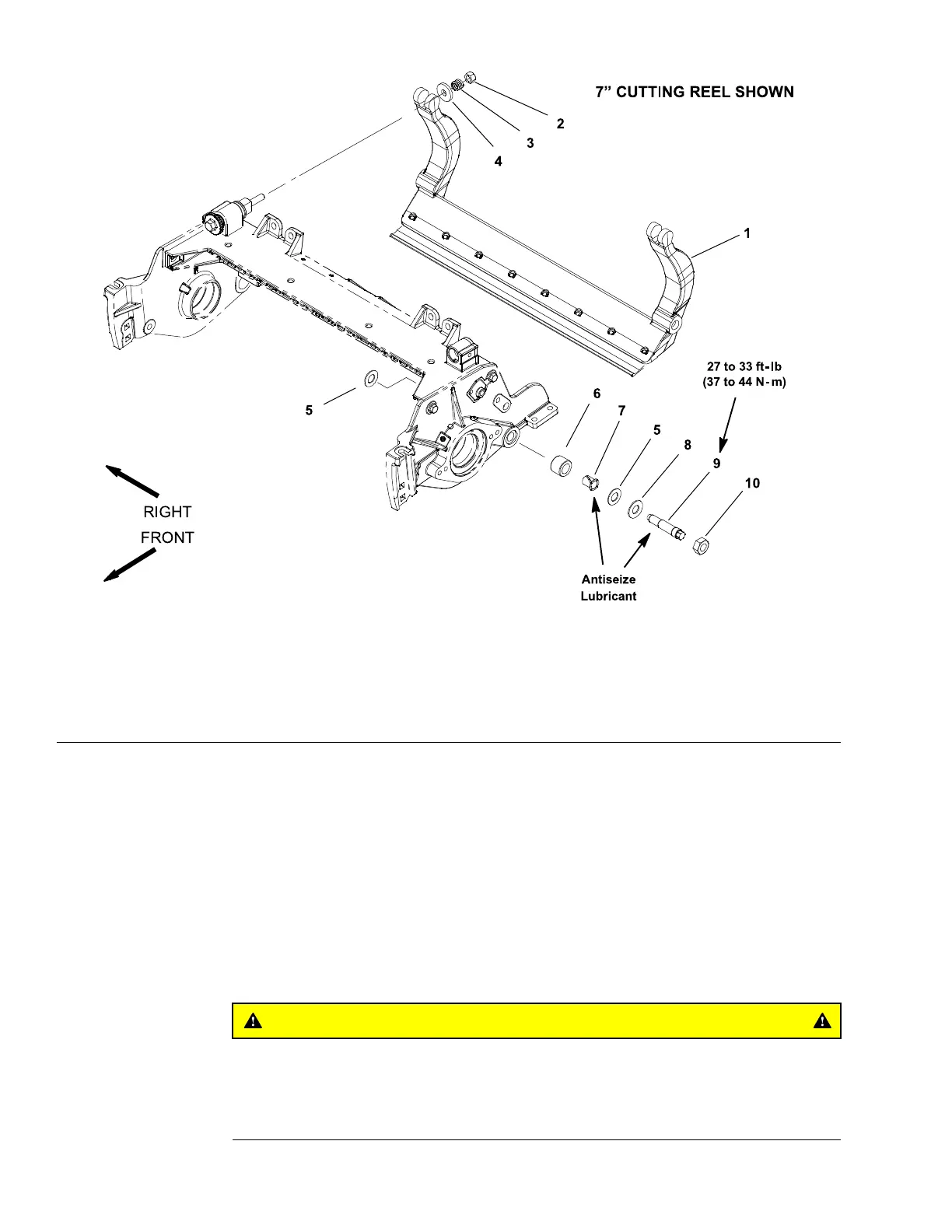

BedbarAssembly

g214400

Figure331

1.Bedbarassembly

5.Plasticwasher(4each)9.Bedbarpivotbolt(2each)

2.Locknut(2each)6.Rubberbushing(2each)10.Locknut(2each)

3.Compressionspring(2each)7.Flangebushing(2each)

4.Washer(2each)8.Metalwasher(2each)

RemovingtheBedbarAssembly

1.Parkthemachineonacleanandlevelsurface,lowerthecuttingunits,shut

offtheengine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Removethecuttingunitfromthemachine.Usethecuttingunitkickstandto

supportthecuttingunit;referto(page).

3.Loosenthelocknut(item2in)ontheendofeachbedbaradjusterassembly

untilthewasherisloose.

4.Loosenthelocknut(item10)oneachbedbarpivotbolt.

5.Removethe2bedbarpivotbolts(item9),2metalwashers,and4plastic

washersfromthecuttingunitsideplates.

CAUTION

Contactwiththereel,bedknife,orothercuttingunitpartscanresult

inpersonalinjury.

Useheavygloveswhenhandlingthebedbar.

CuttingUnit:ServiceandRepairs

Page9–20

Reelmaster

5410/5510/5610Series

15216SLRevC
