BacklapSwitches

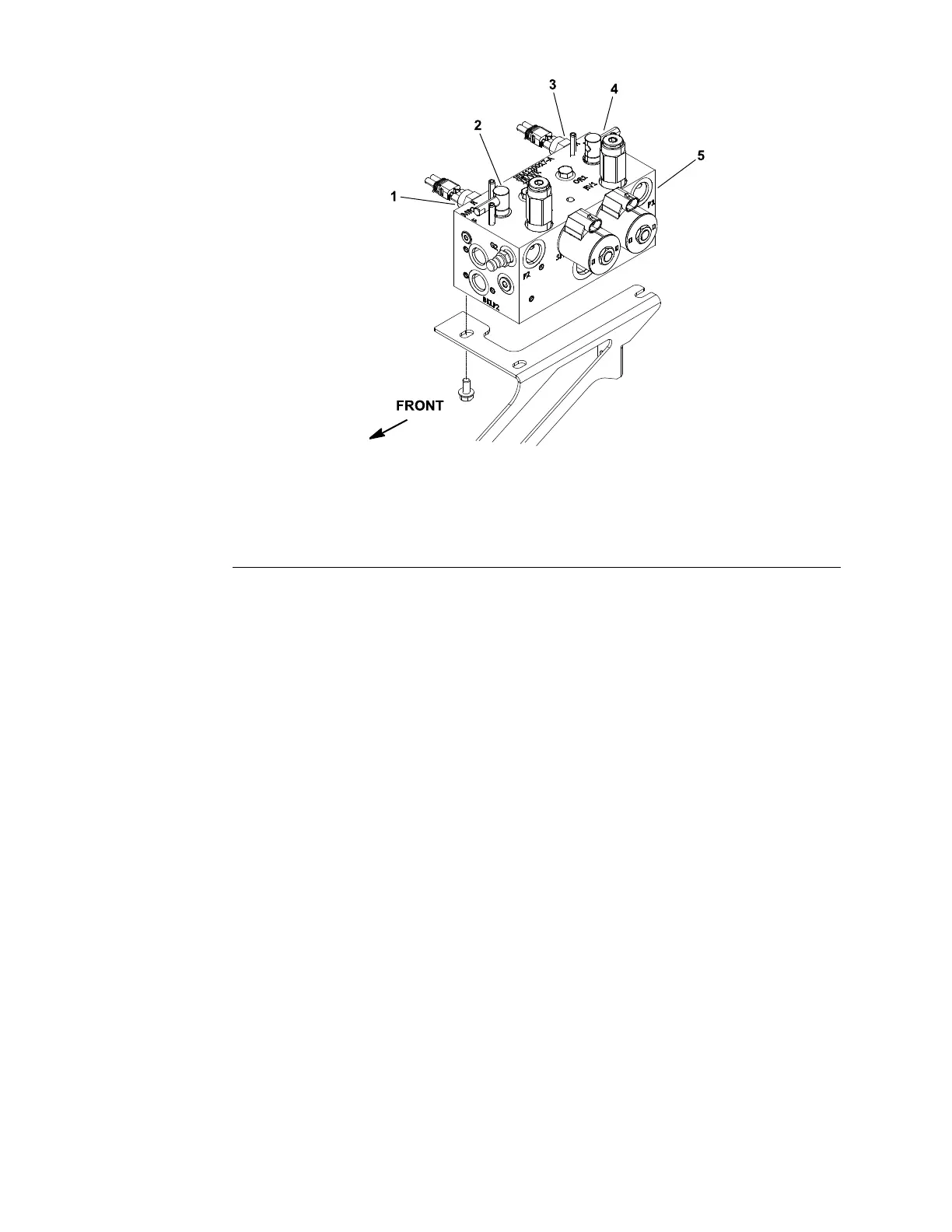

g214064
Figure286
1.Frontbacklapswitch4.Rearbacklaplever
2.Frontbacklaplever
5.Mowcontrolmanifold
3.Rearbacklapswitch
Thebacklapswitchesareattachedtothehydraulicmowcontrolmanifoldunder
theoperatorseatontherightsideofthemachine.
Note:Beforeremovingabacklapswitch,theswitchanditscircuitwiringcanbe
testedasaToroElectronicController(TEC)inputwiththeInfoCenterdisplay;
refertoUsingtheInfoCenterDisplayforTroubleshooting(page7–28).
RemovingtheBacklapSwitches
1.Parkthemachineonalevelsurface,lowerthecuttingunits,shutoffthe
engine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Raiseandsupporttheoperatorseattogetaccesstothehydraulicmow
controlmanifold.
3.Locatethebacklapswitchonthemowcontrolmanifoldthatyoureplace
(Figure286).
4.Disconnectthewireharnesselectricalconnectorfromthebacklapswitch
thatistoberemoved.
5.Loosenandremovethebacklapswitchfromthehydraulicmanifold.Remove
anddiscardtheO-ringfromtheswitch.
ElectricalSystem:ServiceandRepairs
Page7–122
Reelmaster
®
5410/5510/5610Series
15216SLRevC
