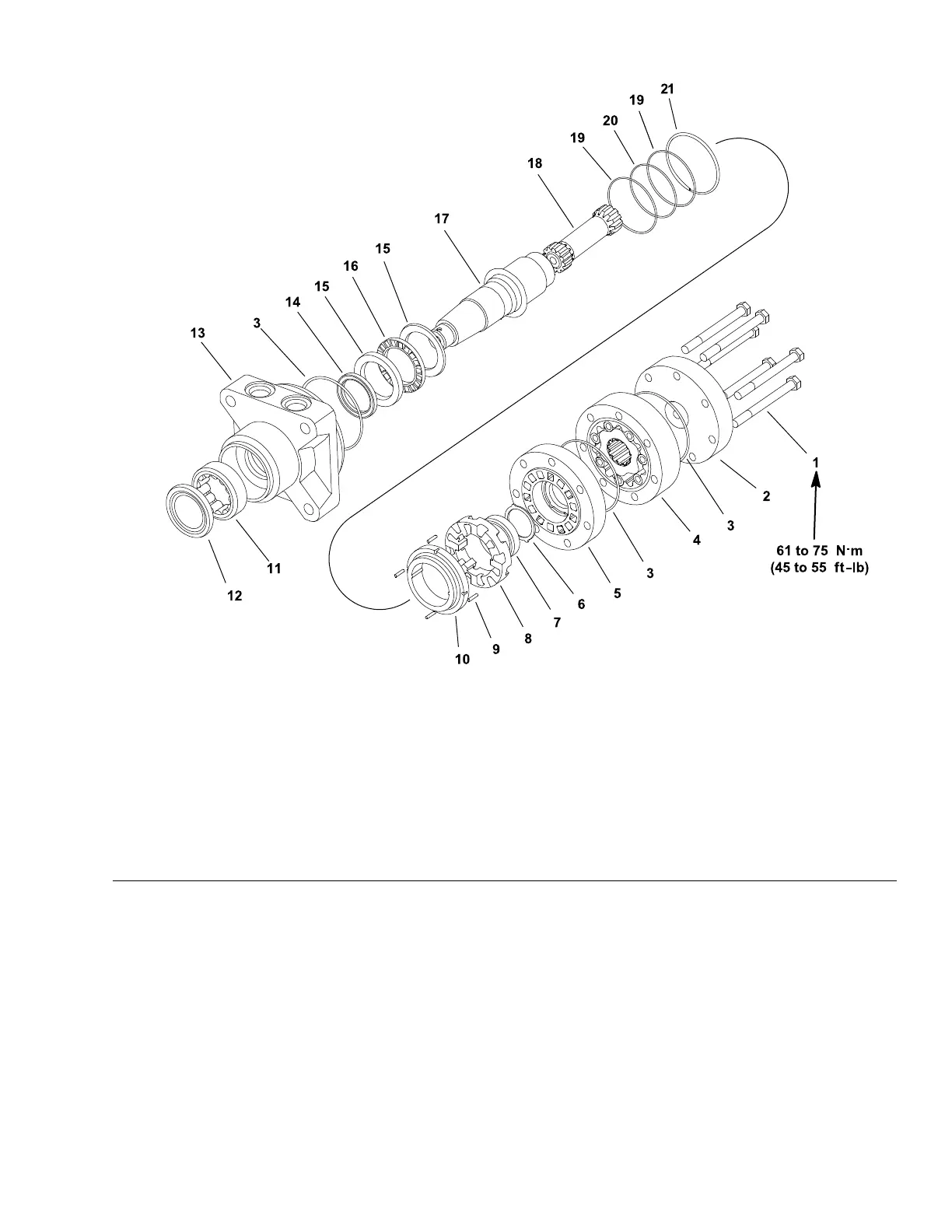

ServicingtheFrontWheelMotor

g186198

Figure158

1.Bolt(7each)

8.Valve

15.Bearingrace(2each)

2.Endcap

9.Dowelpin(4each)

16.Thrustbearing

3.O-ring(3each)

10.Balancingring

17.Outputshaft

4.Gerolerassembly

11.Bearing

18.Drive

5.Valveplate

12.Greaseseal19.Back-upring(2each)

6.Thrustbearing13.Housing

20.O-ring

7.Bearing

14.Shaftseal

21.Valvespring

Note:ThefrontwheelmotorsofyourReelmastermachineareEatonDelta

motorsofthesamebasicdesignwithminordifferences.Therightsidemotor

hasareversetimedmanifoldtoallowcorrectrotationdirectionforforwardand

reverse.Theleftsidewheelmotorcanbeidentiedbythemachinedgroove

ontheendoftheoutputshaft.

Note:Forthefrontwheelmotorrepairprocedures;refertotheEatonDelta

MotorsPartsandRepairManualattheendofthischapter.

Reelmaster

5410/5510/5610Series

Page6–177

HydraulicSystem:ServiceandRepairs

15216SLRevC
